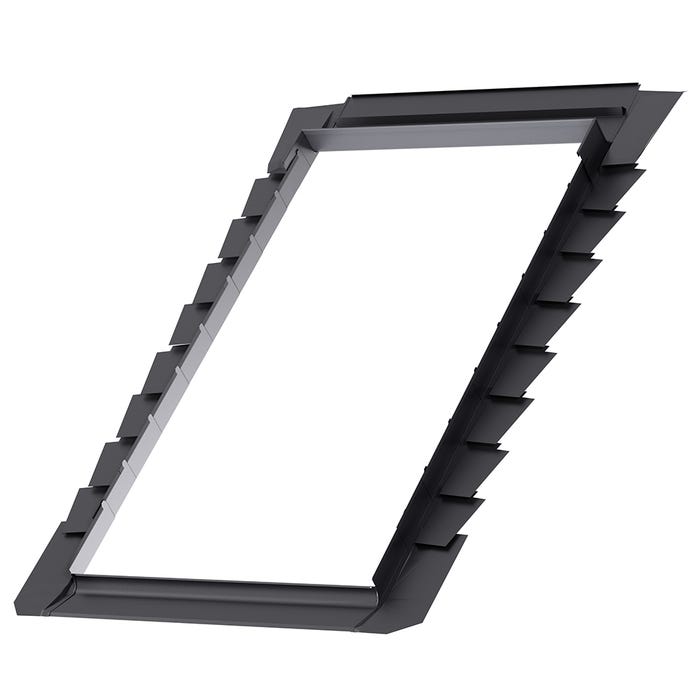

This VELUX EDP PK08 2000 Plain Tile Flashing With BDX 94 x 140cm is suitable for standard installation into plain tiles with a maximum length of 300mm and a maximum thickness of 14mm. VELUX flashing has been designed to integrate your VELUX roof windows perfectly into the roofing material, ensuring the roof window is completely weathertight, regardless of the conditions. Plus, with a BDX insulation collar and BDX underfelt collar included, this flashing offers superior insulation and enhanced energy efficiency.

Key Features

• Easy to install
• Corrosion-proof materials
• Designed to be installed into plain tiles
• Suitable for roof pitches between 25° - 90°
• Comes with all required installation products
• For plain tiles up to 14mm thick and 300mm long
• Discreet installation is ensured in the roofing material
• Flashing components overlap each other to create weather-tight joints
• Integrates your VELUX roof windows perfectly into the roofing material
• Includes underfelt collar and insulation frame for better energy efficiency
• Construction ensures safe drainage of water from the roof above the window

Technical Information

• Colour: Grey
• Size (cm): 94 (W) x 140 (H)
• For profiles: Up to 14mm thick
• Material: Lacquered aluminium
• Suitable for roof pitches: 25° - 90°

Matching Products

• VELUX Roof Windows

Product Includes

• Underfelt collar BFX
• Insulation frame BDX
• Transverse drainage gutter

Maintenance Instructions

• Heavy snow should not be allowed to lie on the flashing for long periods of time
• Leaves and other debris should be removed from any flashing at least once per year to allow rainwater to run freely

Approvals

• In compliance with the EU Timber Regulation (EUTR), EU regulation 995/2010

Guarantee

• 10 year manufacturer's guarantee
