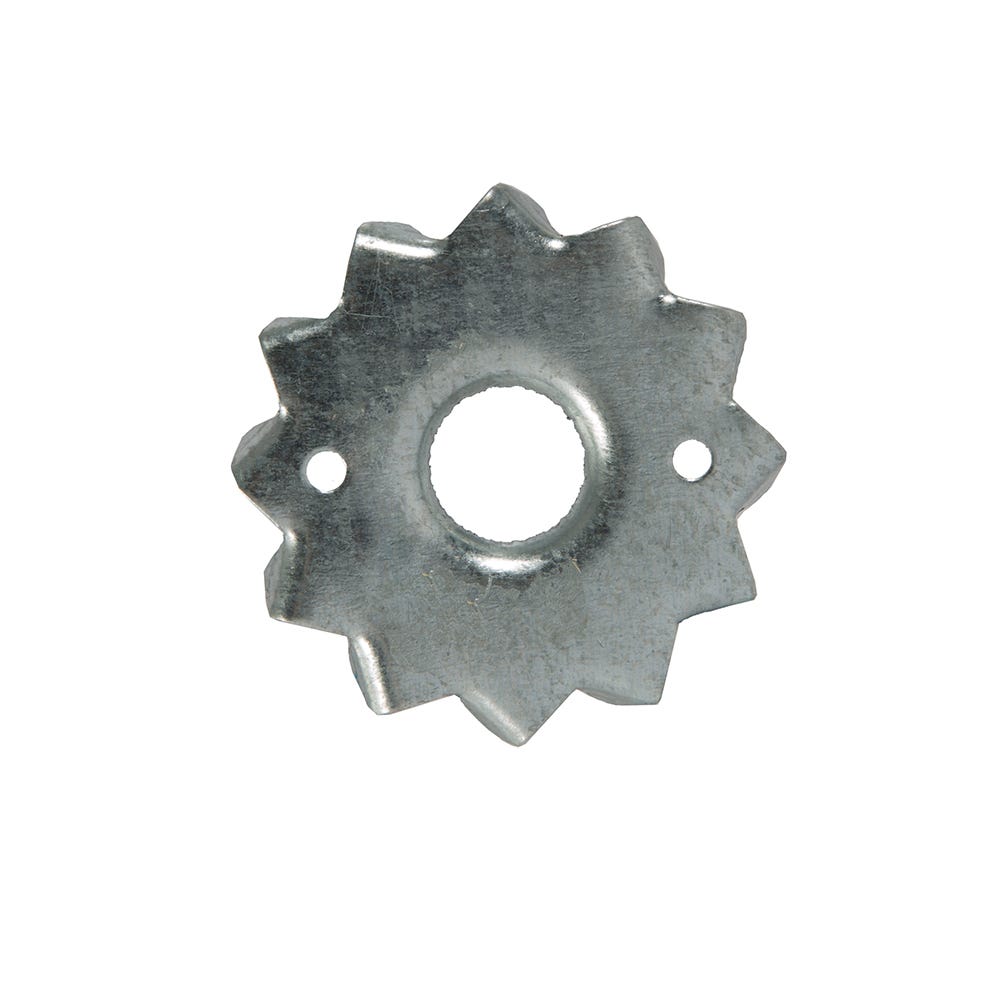

Speed Pro Single sided tooth plate connectors for improving bolt performance in timber and timber to steel application. Timber Connectors are easily installed devices for improving the efficiency of timber structures. Speed Pro tooth plates increase the joint strength, reduce the size of members required for a given load, and simplify fabrication and erection. The use of tooth plate in timber structures can make it possible to develop the full allowable load of the members connected and in some circumstances, make a joint stronger than the members themselves.

Key Features

• Standard hole size M12
• Pre Galvanised Mild Steel to BS EN 10327 : 2004 DX51D+Z275 38&50mm - 0.9mm, 63&76mm-1.2mm
• Generally the load value of groups of connectors is the total of the recommended loads for the individual connectors but this may be subject to adjustment in special circumstances.

Application
Speed Pro tooth plate connectors are used in laterally loaded timber frames. Speed Pro tooth plate connectors are simply pushed into the timber that needs to be connected, the bolt hole need to be pre-drilled and then using bolts and washers the members are tightened together. The Speed Pro tooth plate connectors come in single sided or double sided, the single sided tooth plate can be used for connecting timber to steel frame where as double sided tooth plate is used to connect timber to timber.
