Wylex 80A RCD Double Pole Type A WRDS80/2

SKU
L067077

Wylex 80A RCD Double Pole Type A WRDS80/2

SKU
L067077
Click & Collect
Special Price £31.80 Inc VAT Regular Price £37.73 Inc VAT
Web Exclusive Price
  • This circuit breaker is suitable for installation in a Wylex consumer unit
  • A double pole RCD protects against earth fault currents
  • Wylex 80a RCD with a rated fault current of 30mA
  • The WRDS80/2 is a Type A RCD

Product Information

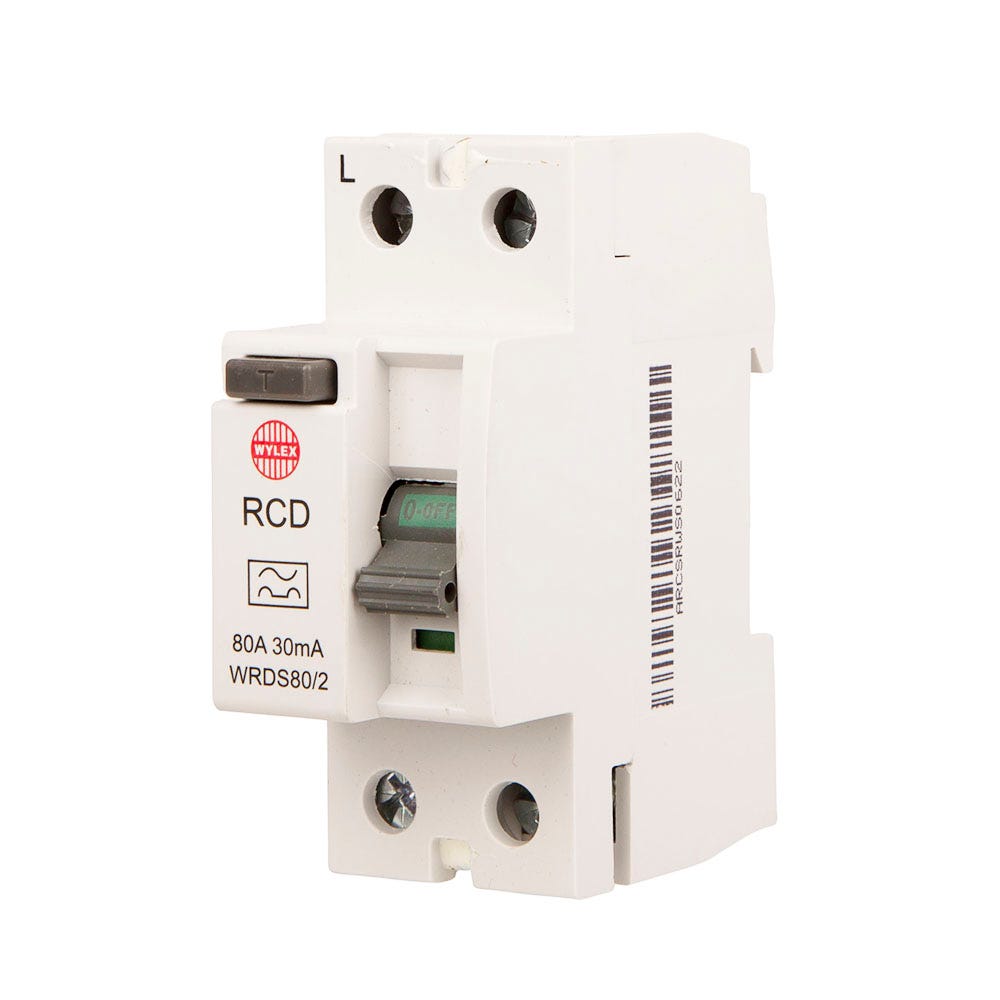

The Wylex Double Pole RCD is ideal for installation in Wylex consumer units. The WRDS80/2 provides protection from earth fault currents. This Wylex 80A RCD has a 30mA rated sensitivity.

Key Features

  • Compliant with 18th Edition Wiring Regulations when installed correctly
  • Ideal for residential and light commercial applications
  • Compatible with Wylex consumer units
  • Provides earth fault current protection
  • Resistant to current surges
  • DIN rail mounted
  • Two modules
  • Double pole
  • Type A

Technical Information

  • Width In Number Of Modular Spacings: 2
  • Rated Insulation Voltage Ui: 400V
  • Width Excluding Switch: 50mm
  • Width Including Switch: 74mm
  • Rated Fault Current: 30mA
  • Terminal Capacity: 35mm²
  • Standard: EN/IEC 61008
  • Breaking Capacity: 6kA
  • Rated Voltage: 230V
  • Number Of Poles: 2
  • Rated Current: 80A
  • Thickness: 35mm
  • Frequency: 50Hz
  • IP Rating: IP20
  • Height: 90mm
  • RCD Type: A

Product Specifications

Technical Specification
Brand: Wylex
MPN: WRDS80/2
Amperage: 80A
Circuit Protection Type: RCD Type A
Shipping Weight Kg: 0.315 kg
Shipping Dimension 1: 95 mm
Shipping Dimension 2: 91 mm
Shipping Dimension 3: 44 mm
