In stock
SKU
L067088
Click & Collect
£149.40
Inc VAT
- This metal consumer unit comes populated with x2 80A 30mA RCDs, x10 B Curve MCBs, x1 Type 2 SPD, and x1 100A double pole main switch
- A split load consumer unit allows flexible configuration for RCD protected circuits
- Compliant with 18th Edition Wiring Regulations when installed correctly
- 21 way consumer unit with 14 useable ways
Product Information

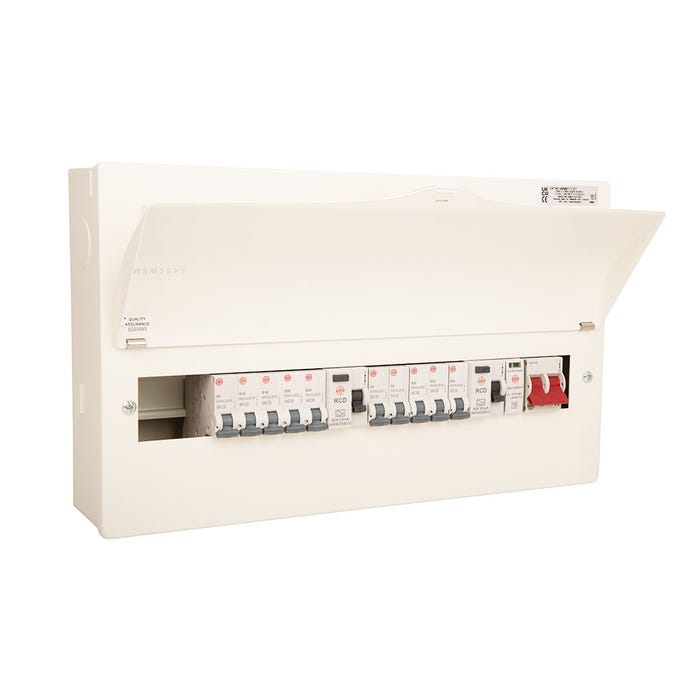

The Wylex High Integrity Dual RCD Consumer Unit is ideal for providing flexible configuration for RCD protected circuits. It has 21 ways and 14 useable ways, with multiple knockouts for easy consumer unit wiring.
Key Features
- Comes populated with x1 100A double pole main switch, x1 Type 2 SPD, x2 80A Type A 30mA RCDs, x5 B Curve 32A MCBs, x2 B Curve 16A MCB, and x3 B Curve 6A MCBs
- This is a split load consumer unit allowing flexible configuration for RCD protected circuits
- Non-combustible metal enclosure with a top-hinged visor maintains fire safety standards
- Fully compliant with 18th Edition Witing Regulations when installed correctly
- Raised and easily removable DIN rail for quick installation
- Surge protection device is pre-fitted and pre-wired
- Compatible with Wylex circuit protection devices
- Large number of knockouts for cable entry
- Low smoke and fume paint
- Supplied with a DIN rail
- Has 4 blanks
Technical Information
- IP Rating/ Degree Of Protection: IP2XC
- Mounting Method: Surface Mounted
- Consumer Unit Type: High Integrity
- Main Switch Rated Current: 100A
- Number Of Main Switch Poles: 2
- Number Of Useable Ways: 14
- Standards: BS EN 61439-3
- Total Number Of Ways: 21
- Operating Voltage: 230V
- Conformity: CE, UKCA
- Busbar Type: Flexible
- Frequency: 50Hz
- Height: 261mm
- Depth: 121mm
- Width: 438mm
- RCD Type: A
Wylex Data Sheet (PDF)
Product Specifications
| Brand: | Wylex |
|---|---|
| MPN: | WNM1773/1 |
| Amperage: | 80A |
| Shipping Weight Kg: | 6.7000kg |
| Shipping Dimension 1: | 453.0000mm |
| Shipping Dimension 2: | 276.0000mm |
| Shipping Dimension 3: | 131.0000mm |
