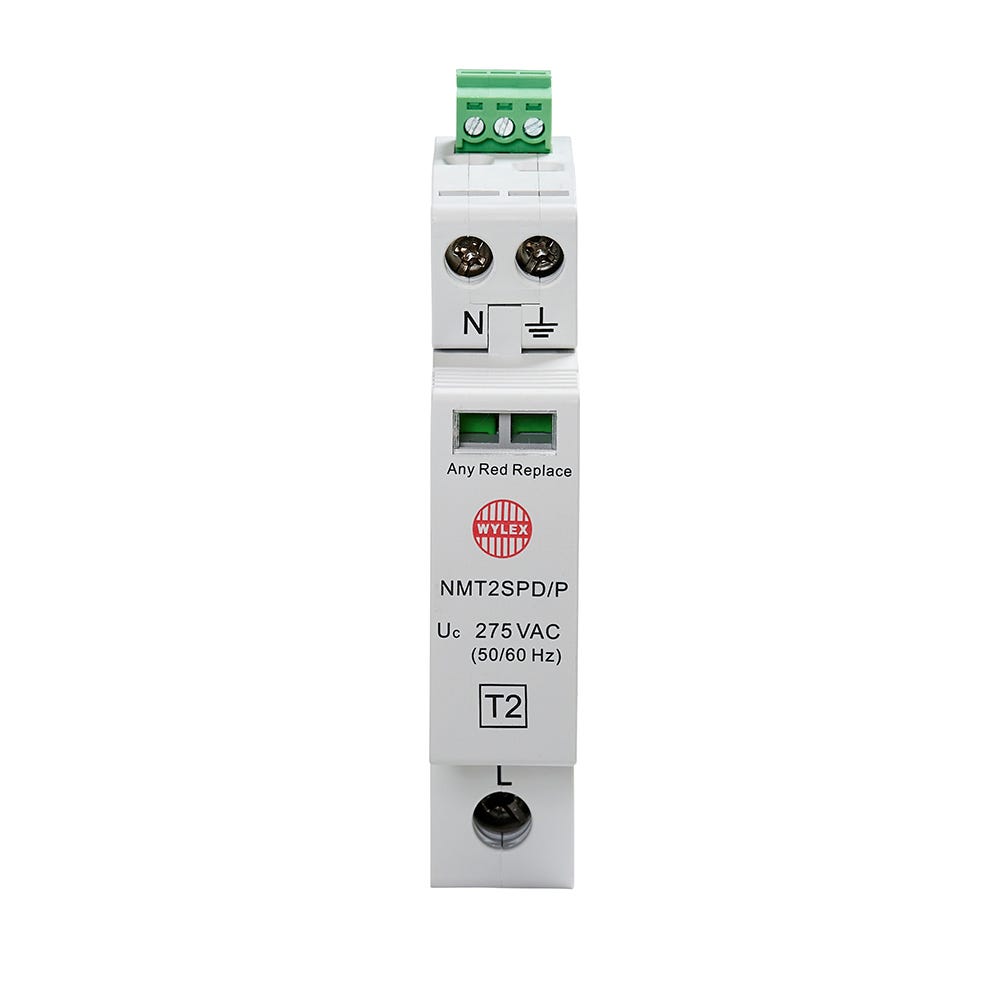

The Wylex 1 Module Type 2 Surge Protection Device NMT2SPD3W/1 is top of it's game at surge protection and limiting transient over voltages due to lightning, switching of transformers, motors and lighting.
Product Information
The Wylex 1 Module Type 2 Surge Protection Device NMT2SPD3W/1 leaves more ways for household circuits and allows the most compact consumer unit to be used. It also connects directly onto the busbar (just like an MCB) supplied with Neutral and Eart cable connections.
Key Features
- Suitable for all Single Phase 3 Wire Systems TN-C-S, TN-S and TT
- Clear indication of device status
- Fitted with remote signalling contact
- Suitable for use in Main Switch, Split Load and Hi-Integrity consumer unit configurations
- Not suitable for Dual RCD configurations
Technical Information
- Nominal discharge surge current: (8/20) μs 20kA
- Short-circuit breaking capacity: (Isccr) 25kA
- Max continuous voltage: AC 275V
- Max. discharge surge current: (8/20) μs 40kA
- Voltage protection level: 1.3 kV
- Voltage protection level L-N 1.3 kV
- Max. conductor cross section (solid / stranded) 25mm2
- Degree of protection IP20
Approvals
- Product Standard IEC EN 61643-11
- Conforms to UKCA
- Conforms to CE
Wylex Data Sheet (PDF)
Product Specifications
| Brand: | Wylex |
|---|---|
| MPN: | NMT2SPD3W/1 |
| Circuit Protection Type: | Surge Protection Device |
| Shipping Weight Kg: | 0.198 kg |
| Shipping Dimension 1: | 116 mm |
| Shipping Dimension 2: | 105 mm |
| Shipping Dimension 3: | 43 mm |
