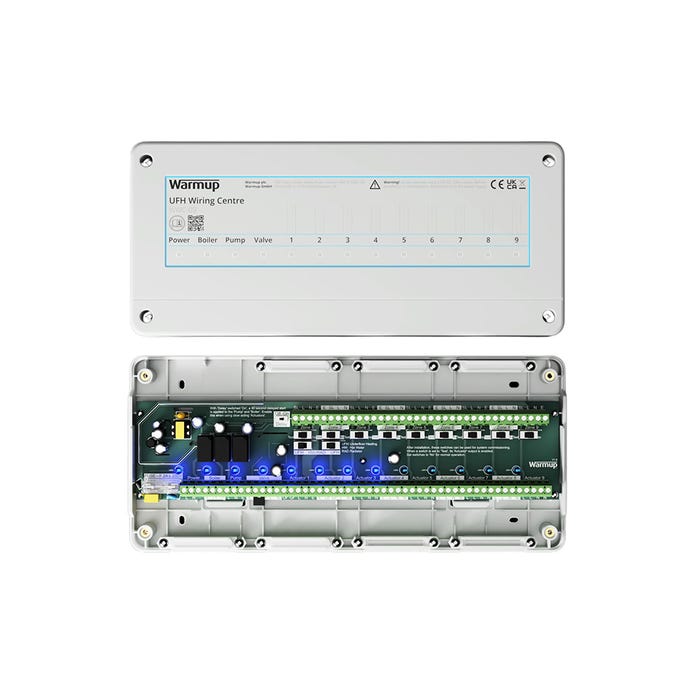

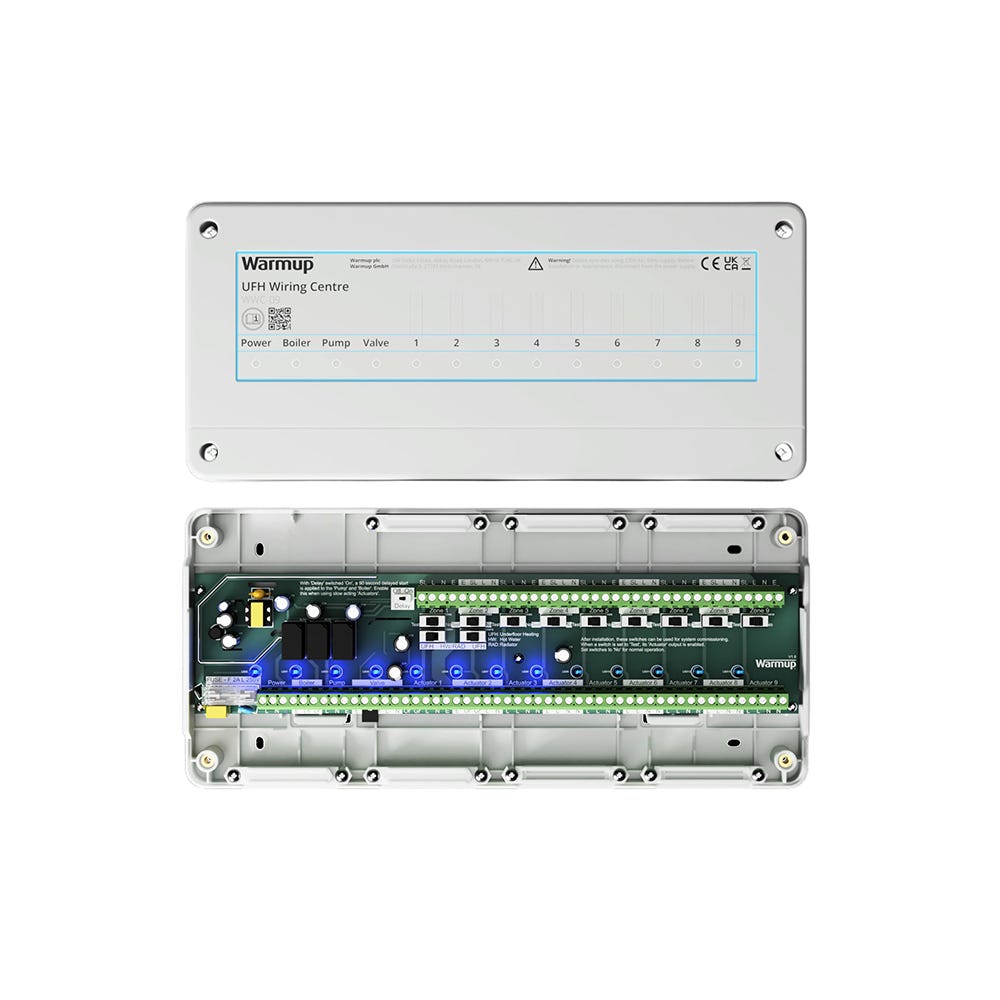

This Warmup UFH Wiring Centre is a control unit that connects all parts of a Warmup underfloor heating system. It supports up to 9 heating zones and is compatible with Warmup thermostats, manifolds, and actuators. Each zone has its own test switch for easy setup and checks, and a built-in delay helps protect the system by starting the heat source after the valves are open. Simple to wire and easy to use, it's designed to keep your underfloor heating running smoothly.

Key Features

• Connects and controls up to 9 underfloor heating zones, with 2 configurable zones for radiators or domestic hot water
• Fully compatible with Warmup thermostats, actuators, S3 Manifolds, and Mixing Units for a seamless system
• Dedicated terminals for faster, cleaner installation, including earth, grey, and orange terminals for zone valves
• Each zone includes a commissioning switch for simulating a call for heat, making it ideal for troubleshooting
• 90-second delayed start prevents short cycling and saves energy by allowing actuators to fully open
• Has LED indicators for each zone
• DIN rail mountable

Technical Information

• Operating Voltage: 230 V AC, 50Hz
• Maximum Total Load: 2A Resistive
• Maximum Number of Zones: 9
• Number of Hybrid Zones: 2
• Wire Size: 1.0 - 2.5mm²
• Protection: Class I
• IP Rating: IP20

Approvals

• UKCA
• CE

Guarantee

• 12-year manufacturer's warranty when installed alongside other Warmup components, and per Warmup's guidelines
