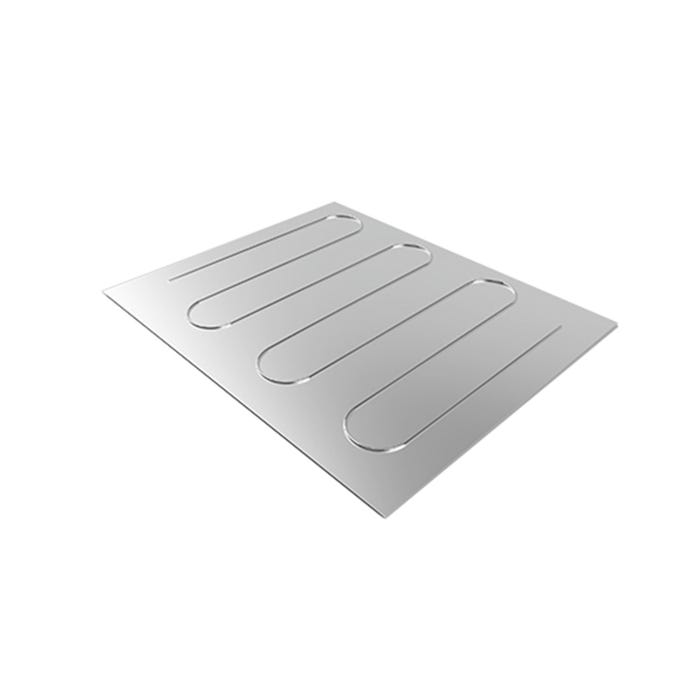

The Warmup 140W Foil Heater 5m² is an electric underfloor heating system designed for laminate, carpet, vinyl, engineered wood and other floating floor finishes. The Foil heater is fitted between the insulating layer and the floating floor deck, adding negligible height to the installation.
Product Information
Warmup Foil Heater is a streamlined electric floor heating system; it can be used to safely heat laminate, carpet, vinyl and most engineered wood floors. The Foil Heater reduces heat-up times by 50%. The thermal properties of the reinforced aluminium foil used in the heater helps to spread the heat evenly and consistently. It is ideal for installation in regular shaped rooms such as sitting rooms and bedrooms, but the foil (not the wire) can be cut and turned to suit the shape of the room. The heating elements are connected to the power supply cable, which exits the mat from one corner. This system is quick and easy to install. Compatible with the Tempo, 3iE and 4iE thermostats. For wooden floors use with underlay. For carpets, vinyl and laminate use with underlay and the dual overlay system. Requires an additional heat source. Manufacturer includes a Safety Net Installation Guarantee and a 15-Year Warranty. This particular Foil Heater covers an area of 5 m2.
This foil system can be used as a primary heat source if fitted with adequate insulation and subject to heat loss calculations.
If you require technical advice or are undertaking a large project, please call 0208 838 8181 where experienced specialists are available to assist you Monday - Friday from 9.00 to 17.00
Key Features:
Technical Data:
Please note:
All electrical connections must be performed by a certified electrician
Please check with the flooring manufacturer to ensure the floor is suitable for use with electric underfloor heating
Consult our guide page for answers to questions like how much is underfloor heating? and how does underfloor heating work?
This foil system can be used as a primary heat source if fitted with adequate insulation and subject to heat loss calculations.
If you require technical advice or are undertaking a large project, please call 0208 838 8181 where experienced specialists are available to assist you Monday - Friday from 9.00 to 17.00
Key Features:
- Reduces heat-up times
- Spreads heat evenly and consistently
- Quick and easy to install
- No self-levelling required
- No raise in floor levels: super-thin
- Can be adapted to fit around the objects
- Single connection lead allows for faster installation
Technical Data:
- Covers an area of 1 m2
- Construction: ECTFE wire encased in aluminium foil
- Operating voltage: 220 - 240V, 50Hz
- Total watts: 140W
- Amps: 0.61A
- Output rating: 140W/ m2
- IP rating: IPX7
- Heating cable spacing: 50mm
- Cold lead length: 3m
Please note:
All electrical connections must be performed by a certified electrician
Please check with the flooring manufacturer to ensure the floor is suitable for use with electric underfloor heating
Consult our guide page for answers to questions like how much is underfloor heating? and how does underfloor heating work?
Product Specifications
Brand: | Warmup |
---|---|
MPN: | WLFH-140W/700 |
Pack Size: | 1 |
Coverage: | 5m² |
