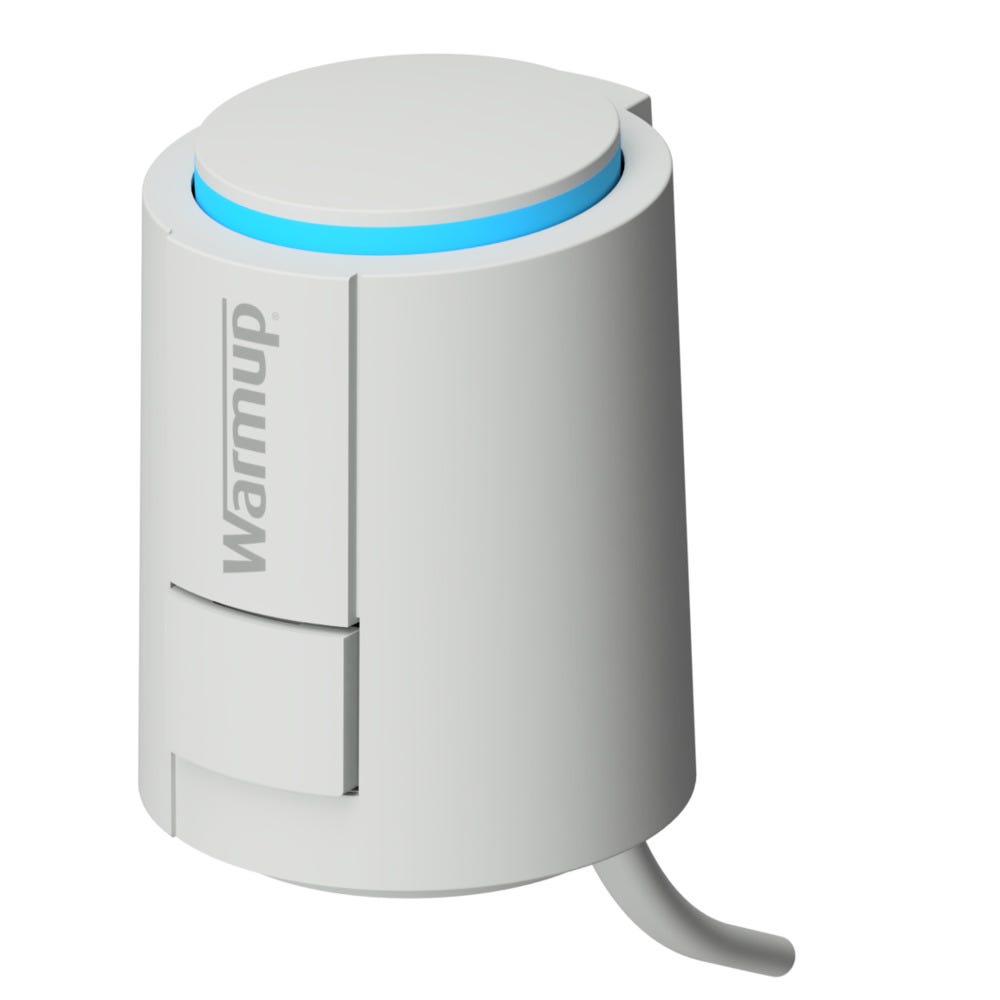

Warmup Electrothermic Actuator for S3 Manifold 230V

SKU
P004700

Warmup Electrothermic Actuator for S3 Manifold 230V

SKU
P004700
Delivery Only
£19.19 Inc VAT
Web Exclusive Price
  • This Warmup 230V Electrothermic Actuator controls underfloor heating zones by opening or closing valves based on the heating demand
  • Built-in status indicator and IP54 water/dust protection for reliable performance
  • Supplied latched open for quick and easy installation
  • Highly energy efficient, using less than 1W of power
  • Designed for use with Warmup S3 Manifolds

Product Information

If you require technical advice or are undertaking a large project, please call 0208 838 8181, where experienced specialists will assist you Monday-Friday from 9.00 to 17.00.

This Warmup Electrothermic Actuator controls the flow of water through each zone in a Warmup S3 Manifold, opening and closing valves based on heating demand. It comes pre-set in an open position for easy setup and switches to normal operation after its first use. A built-in indicator shows whether the valve is open or closed, and it comes in the 230V version.

Key Features

  • IP54-rated for water and dust protection, with built-in surge protection for long-lasting reliability
  • Status indicator disc shows the valve position at a glance (blue = open, no blue = closed)
  • Controls the circuit valves on Warmup S3 Manifolds based on heating demand
  • Energy-efficient design uses less than 1W of power, reducing running costs
  • Supplied latched open for easy installation and setup

Technical Information

  • Closing/Opening Time: 3.5 Minutes
  • Cable: PVC H03VV – 2 x 0.75 mm²
  • Fluid Temperature: 0 to +100°C
  • Housing Material: Polyamide
  • Size: 44.3 x 52.2 x 48.4mm
  • Surge Protection: 5.5kV
  • Actuator Travel: 4mm
  • IP Rating: IP54

Guarantee

  • 2-year manufacturer's warranty

Product Specifications

Technical Specification
Brand: Warmup
MPN: WHS-M-S3-ACT230
Product Type: Actuator
Shipping Weight Kg: 0.12 kg
Shipping Dimension 1: 90 mm
Shipping Dimension 2: 75 mm
Shipping Dimension 3: 50 mm
