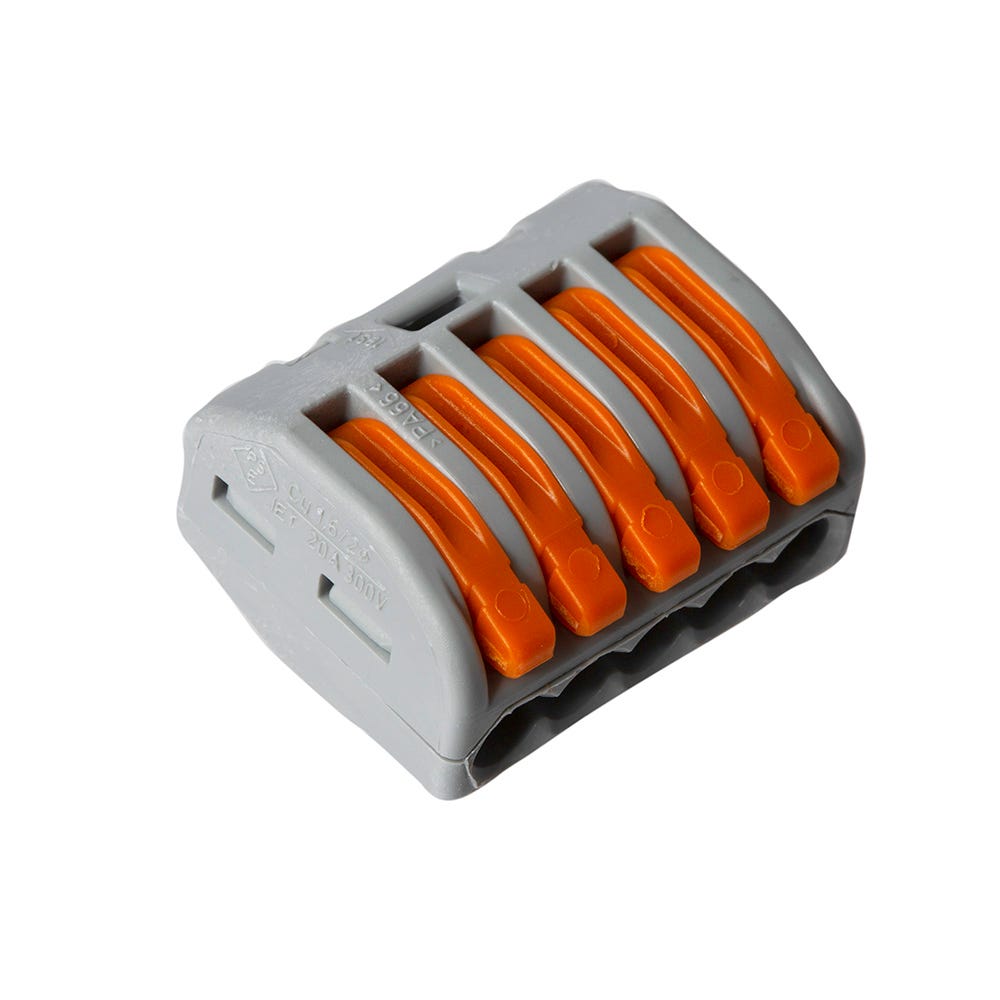

The wago 5 way lever cable connector 222 series grey / orange box of 40. The operation of the 222 series terminals is simplicity itself. The cage clamp inside the connector block is opened by using one of the integrated orange levers. Once in the open position the clamp is ready to accept the insertion of the stripped conductor. Close the lever flush with the body of the connector block and the connection is complete. To remove a conductor simply open the clamp and the connector can be reused. Wago connectors meet the most stringent UK and international standards including the electrical requirements of BS7671 17th edition. Installers can be totally confident that using wago connectors enables them to follow 'best practice' procedures and fully comply with the most up to date safety criteria. There is a test point in the base of the housing. Cage clamp connections mean that these 3 and 5 pole connectors will safely accept 0.08mm - 4mm² flexible conductors. Operation is easy using one of the integrated orange levers that locks open, ensuring that the clamping unit is ready for insertion of the stripped wire. Closing the lever, flush with the connector housing, ensures a gastight conductor connection. Wires are thus connected or removed without using any tools. The rating for this compact connector is 400V, 4KV, 32A. This reduces wiring time and guarantees a gastight and maintenance free connection every time.

Key Features

• The rating is 400V, 32A.
• Meets BS7671 17th edition.
• Quick and easy to use.
• Reliable & secure connections.
• Approvals by IEC, UL, CSA.
• Up to 50% reduced wiring time.
• Touch-proof connection.
• Vibration proof.
• Reusable.
• Integrated test points.
• Max service temp 85°C.

Applications
Lighting.
Power.
Alarms & telecoms.
heating & ventilation.
Control circuits.
Wire options are solid, stranded & flexible.

Operating Instructions
Simply flip up the integrated orange lever to vertical position, opening the cage clamp, insert the stripped conductor, then return the lever to the horizontal position, closing the cage clamp to give a perfect gastight connection every time.

17th edition IEE wiring regulations (BS7671)
In order to comply with the requirements BS7671 all connectors should be used in a suitable enclosure of material complying with the relevant glow-wire test requirements of BS 458-2.1. This will provide mechanical protection for the connectors as well as protection against dust, damp and accidental damage. Wago connectors are IP20 (finger touch) with polyamide 6.6 housing for strength and durability.
