In stock
SKU
L067012
Click & Collect
£5.04
Inc VAT
- Provides a convenient and quick wiring solution for a range of applications
- Allows any combination of stranded or solid conductor sizes
- For 0.75 to 4mm² conductors
- Comes in a pack of 5
- 32A rated current
Product Information

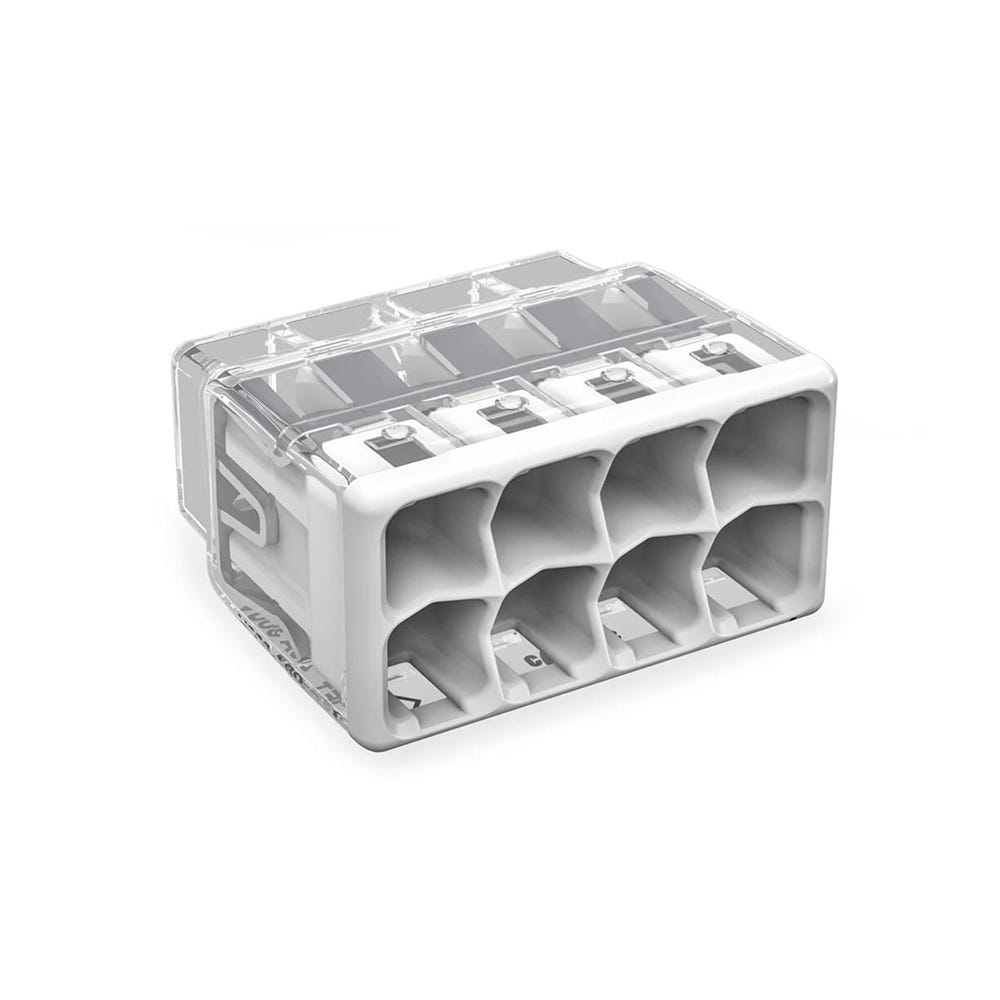

These Wago 8 Way Compact Splicing Connector Blocks are ideal for various wiring applications. They come in a pack of 5.
Key Features
- Provides a convenient and quick wiring solution for a range of applications
- Allows any combination of conductor sizes
- Suitable for solid and stranded conductors
- Push-in termination of up to 8 conductors
- Grey and transparent coloured housing
- For 0.75 to 4mm² conductors
- 8 connection points
Technical Information
- Ambient Operating Temperature: 85 Degrees Celsius
- Stranded Conductor: 1.5 - 4mm² / 18 - 12AWG
- Conductor Diameter: 1.6 - 2mm / 20 - 12AWG
- Solid Conductor: 0.75 - 4mm² / 20 - 12AWG
- Connectable Conductor Materials: Copper
- Wiring Direction: Side Entry Wiring
- Insulation Material: Polycarbonate
- Rated Surge Voltage: 4kV
- Actuation Type: Push-in
- Nominal Voltage: 450V
- Rated Current: 32A
- Pack Quantity: 5
- Depth: 18.6mm
- Width: 21.2mm
- Height: 11.3mm
Product Data Sheet (PDF)
Product Specifications
Brand: | Wago |
---|---|
MPN: | 2773-408/995-005 |
Amperage: | 32A |
Colour: | Grey |
Wiring Accessories Type: | Wago Connector |
Shipping Weight Kg: | 0.03 kg |
Shipping Dimension 1: | 116 mm |
Shipping Dimension 2: | 95 mm |
Shipping Dimension 3: | 15 mm |
