In stock
SKU
L067006
Click & Collect
£7.84
Inc VAT
- Allows devices with higher power consumptions to be easily installed
- Suitable for solid, stranded, and fine stranded conductors
- For 0.14 to 4mm² conductors
- Come in a pack of 8
- 5 connection points
Product Information

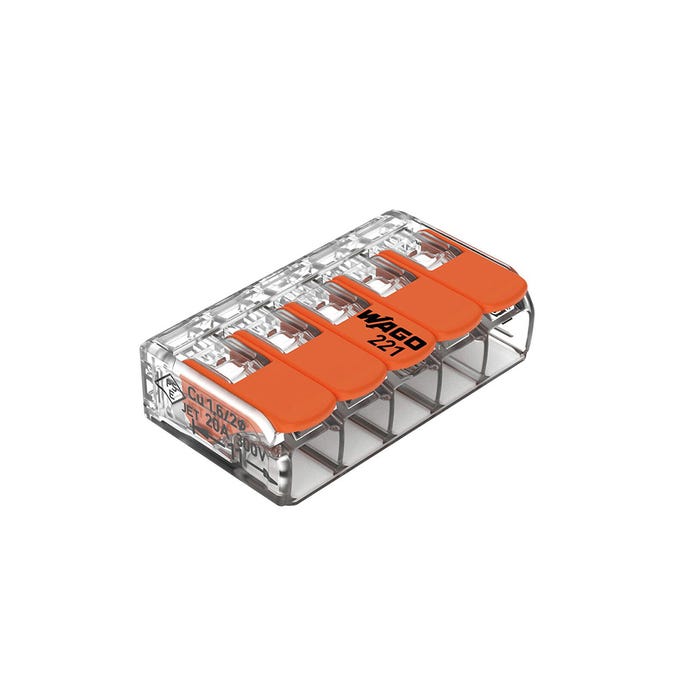

These Wago 5 Way Compact Connector Terminal Blocks come in a pack of 8 and are quick and easy to use.
Key Features
- Allows devices with higher power consumptions to be easily installed
- Suitable for solid, stranded, and fine stranded conductors
- Orange and transparent colour
- For 0.14 to 4mm² conductors
- 5 connection points
- Simple to use
Technical Information
- Maximum Continuous Operating Temperature: 105 Degrees Celsius
- Fine-stranded Conductor: 0.14 - 4mm² / 24 - 12AWG
- Stranded Conductor: 0.2 - 4mm² / 24 - 12AWG
- Solid Conductor: 0.2 - 4mm² / 24 - 12AWG
- Connectable Conductor Materials: Copper
- Nominal Cross-section: 4mm² / 12AWG
- Rated Surge Voltage: 4kV
- Nominal Voltage: 450V
- Actuation Type: Lever
- Rated Current: 32A
- Pack Quantity: 8
- Fire Load: 0.089MJ
- Depth: 18.8mm
- Width: 30mm
- Height: 8.6mm
Operating Instructions
- Pull up the lever
- Insert the conductor
- Push the lever back down
Product Data Sheet (PDF)
Product Specifications
| Brand: | Wago |
|---|---|
| MPN: | 221-415/995-008 |
| Amperage: | 32A |
| Wiring Accessories Type: | Wago Connector |
| Shipping Weight Kg: | 0.046 kg |
| Shipping Dimension 1: | 116 mm |
| Shipping Dimension 2: | 92 mm |
| Shipping Dimension 3: | 15 mm |
