- Compatible with 0.08 to 4mm² solid, stranded, and fine conductors
- Simply connects stripped cables without the need for special tools
- 3 connection points
- 32A rated current
- Pack of 5
Product Information

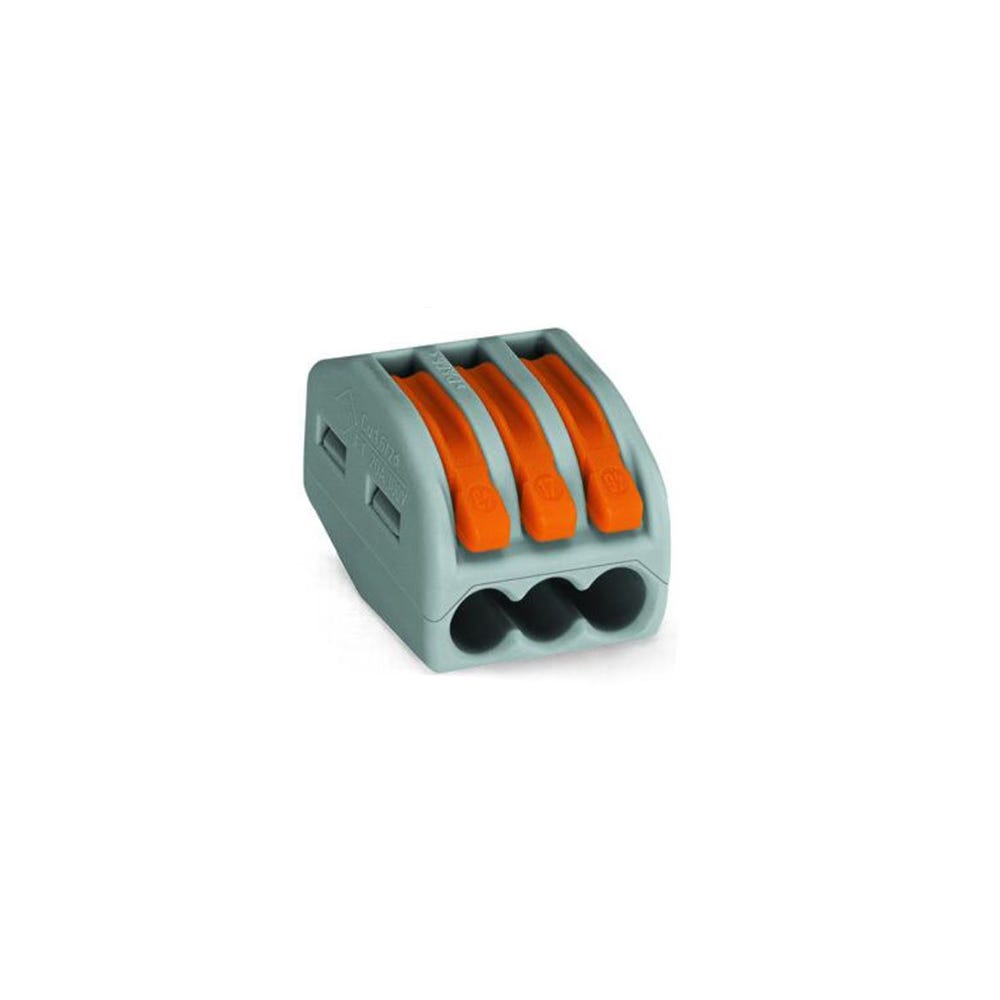

This Wago 3 Way Lever Cable Connector is part of the 222 series and simply connects stripped cables without the need for special tools.
Key Features
- The cage clamp inside the connector easily opens using one of the integrated orange levers
- The clamping unit is ready for stripped wires to be inserted
- Wago connectors meet UK and international standards
- Compatible with solid, stranded, and fine conductors
- Provides reliable and secure connections
- Creates touch-proof connections
- For 0.08 to 4mm² conductors
- The connector can be reused
- Quick and easy to use
- 3 connection points
- Side entry wiring
Technical Information
- Fine-stranded Conductor: 0.08 - 4 mm² / 28 - 12 AWG
- Stranded Conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
- Solid Conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
- Connectable Conductor Materials: Copper
- Flammability Class Per UL94: V0
- Actuation Type: Lever
- Rated Current: 32A
- Pack Quantity: 5
- Fire Load: 0.099MJ
- Height: 14.5mm
- Depth: 20.5mm
- Width: 17mm
Operating Instructions
- Push up the integrated orange lever to the vertical position to open the cage clamp
- Insert the stripped conductor
- Return the lever to the horizontal position to close the cage clamp
Product Data Sheet (PDF)
Product Specifications
| Brand: | Wago |
|---|---|
| MPN: | 222-413/995-005 |
| Amperage: | 32A |
| Colour: | Grey |
| Wiring Accessories Type: | Wago Connector |
| Shipping Weight Kg: | 0.02 kg |
| Shipping Dimension 1: | 116 mm |
| Shipping Dimension 2: | 95 mm |
| Shipping Dimension 3: | 15 mm |
