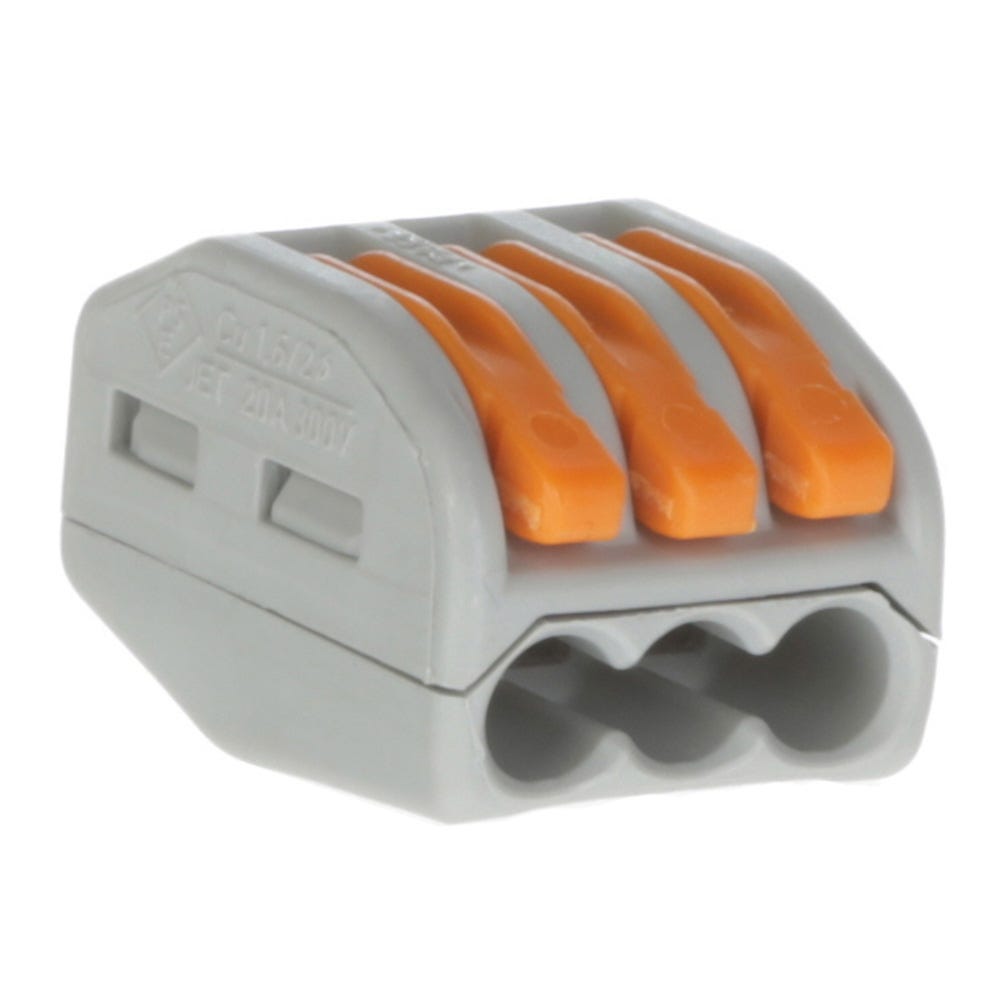

Wago 3 Way Lever Cable Connector 222 Series Grey/Orange Box Of 50

SKU
L040778

Wago 3 Way Lever Cable Connector 222 Series Grey/Orange Box Of 50

Out of stock online
SKU
L040778
Click & Collect
£19.74 Inc VAT
  • The Wago 3 Way Lever Cable Connector is suitable for 0.08 to 4mm² solid, stranded, and fine conductors
  • Connects stripped cables without needing special tools
  • 3 connection points
  • 32A rated current
  • Box of 50
New Southgate
0 in stock
Park Royal
4 in stock
Staples Corner
6 in stock
West Hampstead
0 in stock

Product Information

This Wago 3 Way Lever Cable Connector is part of the 222 series and comes in a box of 50. The splicing connector is suitable for all conductor types from 0.08 to 4mm². These connectors are used in junction boxes, for custom low-voltage wiring systems, joining pre-fabricated and pre-wired components, and for lighting fixture connections with fine-stranded wires and power feeds.

Key Features

  • The cage clamp inside the connector easily opens using one of the integrated orange levers
  • The clamping unit is ready for stripped wires to be inserted
  • Wago connectors meet UK and international standards
  • Compatible with solid, stranded, and fine conductors
  • Provides reliable and secure connections
  • Creates touch-proof connections
  • For 0.08 to 4mm² conductors
  • The connector can be reused
  • Quick and easy to use
  • 3 connection points
  • Side entry wiring

Technical Information

  • Fine-stranded Conductor: 0.08 - 4 mm² / 28 - 12 AWG
  • Connectable Conductor Materials: Copper, Aluminium
  • Stranded Conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
  • Solid Conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
  • Continuous Operating Temperature: 85 °C
  • Ambient Operating Temperature: +40 °C
  • Strip Length: 9-10mm / 0.35-0.39"
  • Flammability Class Per UL94: V0
  • Total Number Of Potentials: 1
  • Rated Surge Voltage: 4kV
  • Nominal Voltage: 400V
  • Actuation Type: Lever
  • Rated Current: 32A
  • Fire Load: 0.088MJ
  • Pack Quantity: 50
  • Height: 14.5mm
  • Depth: 20.5mm
  • Width: 17mm

Installation Instructions

  • Strip the conductor to 9-10mm
  • Push up the integrated orange lever to the vertical position to open the cage clamp
  • Insert the stripped conductor
  • Return the lever to the horizontal position to close the cage clamp

Approvals

  • RoHS Compliant
  • EN 60998
  • UL 486C
  • UL 467

Product Specifications

Technical Specification
Brand: Wago
MPN: 222-413
Colour: Grey
Amperage: 32A
