- The Wago 2 Way Lever Cable Connector is suitable for 0.08 to 4mm² solid, stranded, and fine conductors
- Connects stripped cables without needing special tools
- 2 connection points
- 32A rated current
- Box of 50
Product Information

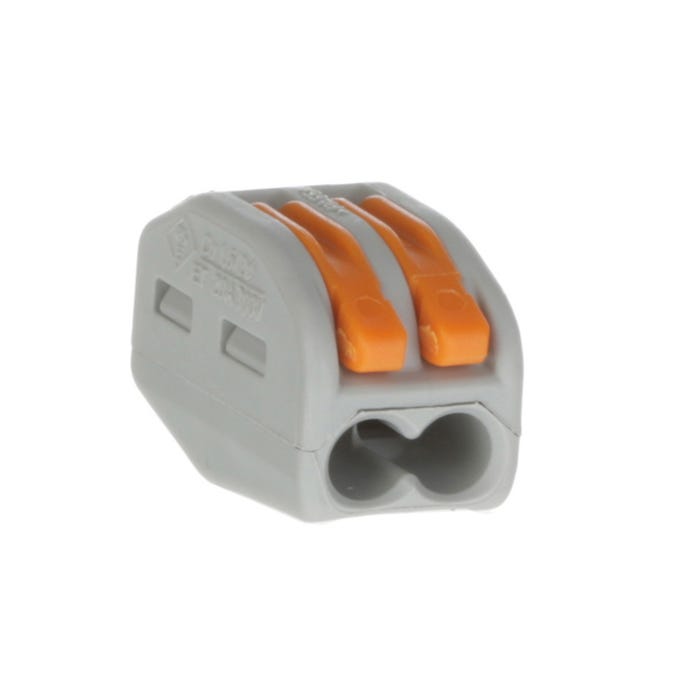

This Wago 2 Way Lever Cable Connector is part of the 222 series and comes in a box of 50. The splicing connector is suitable for all conductor types from 0.08 to 4mm². These connectors are used in junction boxes, for custom low-voltage wiring systems, joining pre-fabricated and pre-wired components, and for lighting fixture connections with fine-stranded wires and power feeds.
Key Features
- The cage clamp inside the connector easily opens using one of the integrated orange levers
- The clamping unit is ready for stripped wires to be inserted
- Wago connectors meet UK and international standards
- Compatible with solid, stranded, and fine conductors
- Provides reliable and secure connections
- Creates touch-proof connections
- For 0.08 to 4mm² conductors
- The connector can be reused
- Quick and easy to use
- 2 connection points
- Side entry wiring
Technical Information
- Fine-stranded Conductor: 0.08 - 4 mm² / 28 - 12 AWG
- Connectable Conductor Materials: Copper, Aluminium
- Stranded Conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
- Solid Conductor: 0.08 - 2.5 mm² / 28 - 12 AWG
- Continuous Operating Temperature: 85 °C
- Ambient Operating Temperature: +40 °C
- Strip Length: 9-10mm / 0.35-0.39"
- Flammability Class Per UL94: V0
- Total Number Of Potentials: 1
- Rated Surge Voltage: 4kV
- Nominal Voltage: 400V
- Actuation Type: Lever
- Rated Current: 32A
- Fire Load: 0.067MJ
- Pack Quantity: 50
- Height: 14.5mm
- Depth: 20.5mm
- Width: 12.4mm
Installation Instructions
- Strip the conductor to 9-10mm
- Push up the integrated orange lever to the vertical position to open the cage clamp
- Insert the stripped conductor
- Return the lever to the horizontal position to close the cage clamp
Approvals
- RoHS Compliant
- EN 60998
- UL 486C
- UL 467
Product Data Sheet (PDF)
Product Specifications
Brand: | Wago |
---|---|
MPN: | 222-412 |
Colour: | Grey |
Amperage: | 32A |
