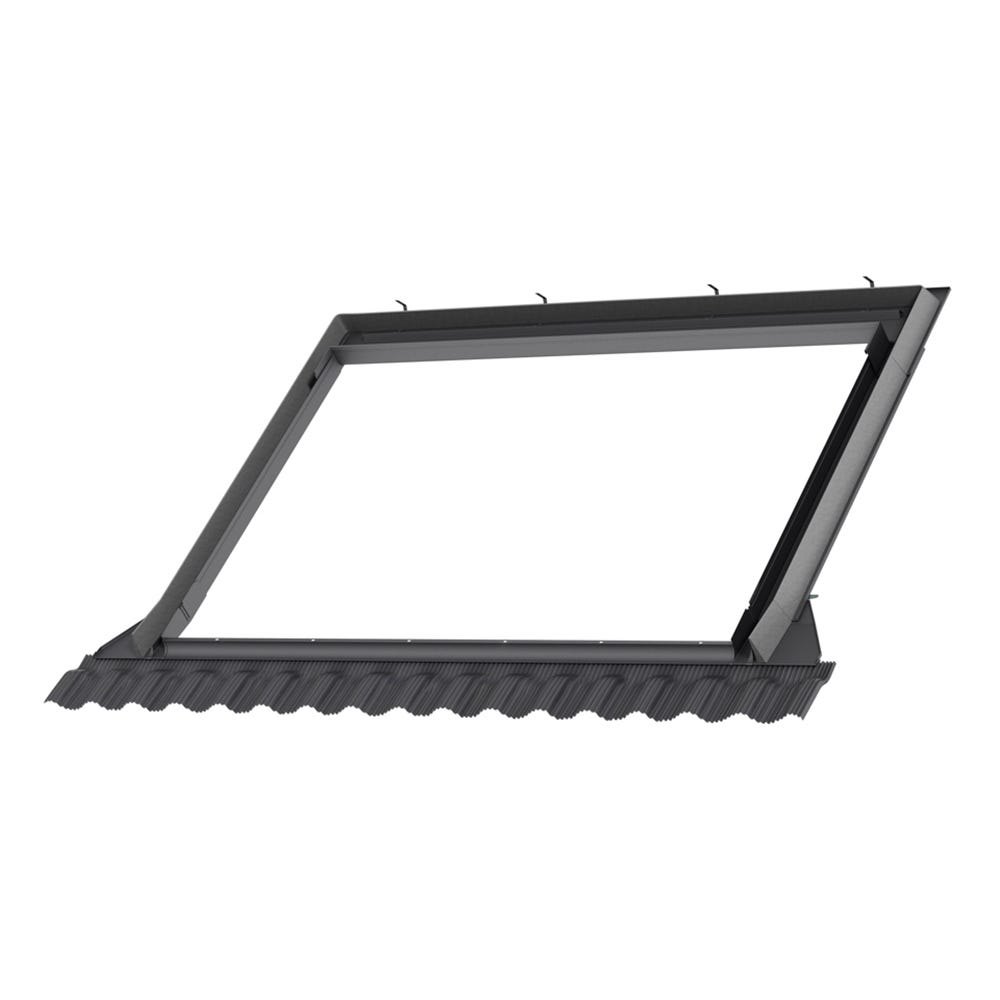

This VELUX 2-in-1 EDWS FPK08 Tile Flashing 155 x 140cm is for the installation of a 2-in-1 VELUX roof window into flat or profiled roofing material up to 120mm in profile - though this flashing is also suitable for interlocking slate, thatch and profiled sheeting. With a BDX insulation collar and BDX underfelt collar included, you can be assured your flashing is offering you enhanced energy efficiency and providing you with better insulation. Designed to integrate your VELUX roof windows perfectly into the roofing material, this flashing will also ensure your roof window is completely weathertight, regardless of the conditions.

Key Features

• Easy to install
• Corrosion-proof materials
• Designed to be installed into tiles
• Comes with installation products included
• For the installation of a 2-in-1 VELUX roof window
• Discreet installation is ensured in the roofing material
• Suitable for profiled roofing material up to 120mm thick
• The roofing material conceals the top and side flashing components
• Flashing components overlap each other to create weather-tight joints
• Also used with thatched roofs, corrugated sheets and interlocking slate
• Integrates your VELUX roof windows perfectly into the roofing material
• Includes underfelt collar and insulation frame for better energy efficiency
• Construction ensures safe drainage of water from the roof above the window

Technical Information

• Colour: Grey
• Size (cm): 155 (W) x 140 (H)
• Material: Lacquered aluminium
• For profiles: Up to 120mm thick
• Suitable for roof pitches: 15° - 90°

Matching Products

• VELUX GGLS FPK08 2066 155 x 140cm 2-In-1 Manual Centre Pivot Roof Window
• VELUX GGLS FPK08 2070 155 x 140cm 2-In-1 Manual Centre Pivot Roof Window
• VELUX GGLS FPK08 206630 155 x 140cm 2-In-1 Solar-Operated Centre Pivot Roof Window
• VELUX GGLS FPK08 207030 155 x 140cm 2-In-1 Solar-Operated Centre Pivot Roof Window
• VELUX GPLS FPK08 2066 155 x 140cm 2-In-1 White Painted Laminated Top Hung Roof Window
• VELUX GPLS FPK08 2070 155 x 140cm 2-In-1 White Painted Laminated Top Hung Roof Window

Product Includes

• Underfelt collar BFX
• Insulation frame BDX
• Transverse drainage gutter

Maintenance Instructions

• Heavy snow should not be allowed to lie on the flashing for long periods of time
• Leaves and other debris should be removed from any flashing at least once per year to allow rainwater to run freely

Approvals

• ISO 9001
• ISO 14001
• In compliance with the EU Timber Regulation (EUTR), EU regulation 995/2010

Guarantee

• 10-year manufacturer's guarantee
