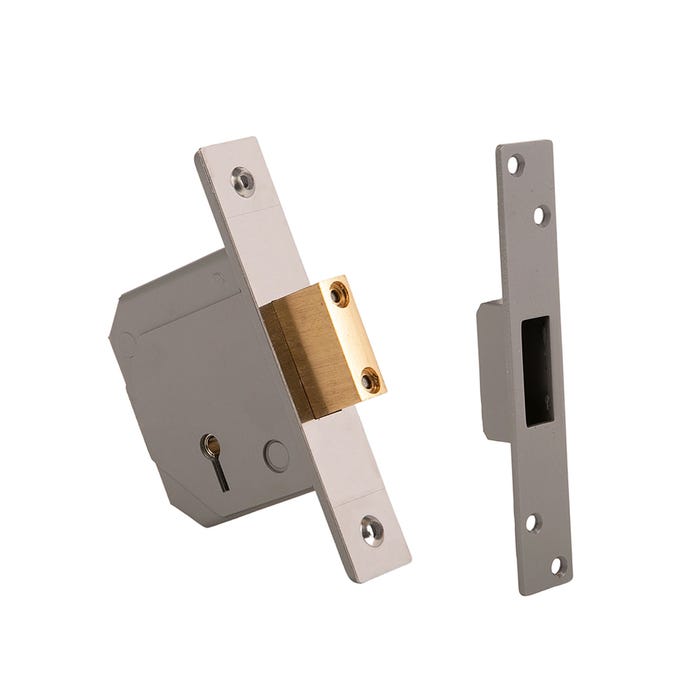

The Union 5 Lever Mortice Deadlock is a police-preferred, extra strong and durable lock suitable for compartmentation of fire and smoke.

Key Features

• For use on fire and smoke compartmentation doors
• Preferred by insurance companies and the police
• Fixings supplied are suitable for use on timber doors
• Hardened steel cover plate is resistant to drill attack
• Hardened steel rollers protect against saw attack
• Lockcase can be used with any door material
• Direct replacement for the Chubb 3G114E
• Extra protection against lock picking
• Keys operate both sides of the door
• Proven high quality and reliability
• Resistant against jemmy attack
• Extra large security deadbolt
• Silver powder coat case
• Supplied with 3 keys
• Satin chrome finish
• Made in the UK

Technical Information

• Max closing force: 25 N
• Max door weight: 100kg
• Case height: 80mm
• Bolt throw: 20mm
• Case size: 67mm
• Backset: 40mm

Fitting Instructions

• When fitted to fire doors, intumescent materials must be used to protect the locks. This can be an intumescent gasket pack for case and strike/lockplate

Maintenance Instructions

• Apply a small amount of spray lubrication and test to see if the deadbolt fully retracts
• Check furniture is well fitted and works as it should
• Handle should fully retract the latch as required
• Inspect regularly to ensure secure fixing

Approvals

• Third-party tested to BS EN 12209:2003
• BS 3621:2007 Kitemark
• CE approved

Guarantee

• 25 Year Guarantee
