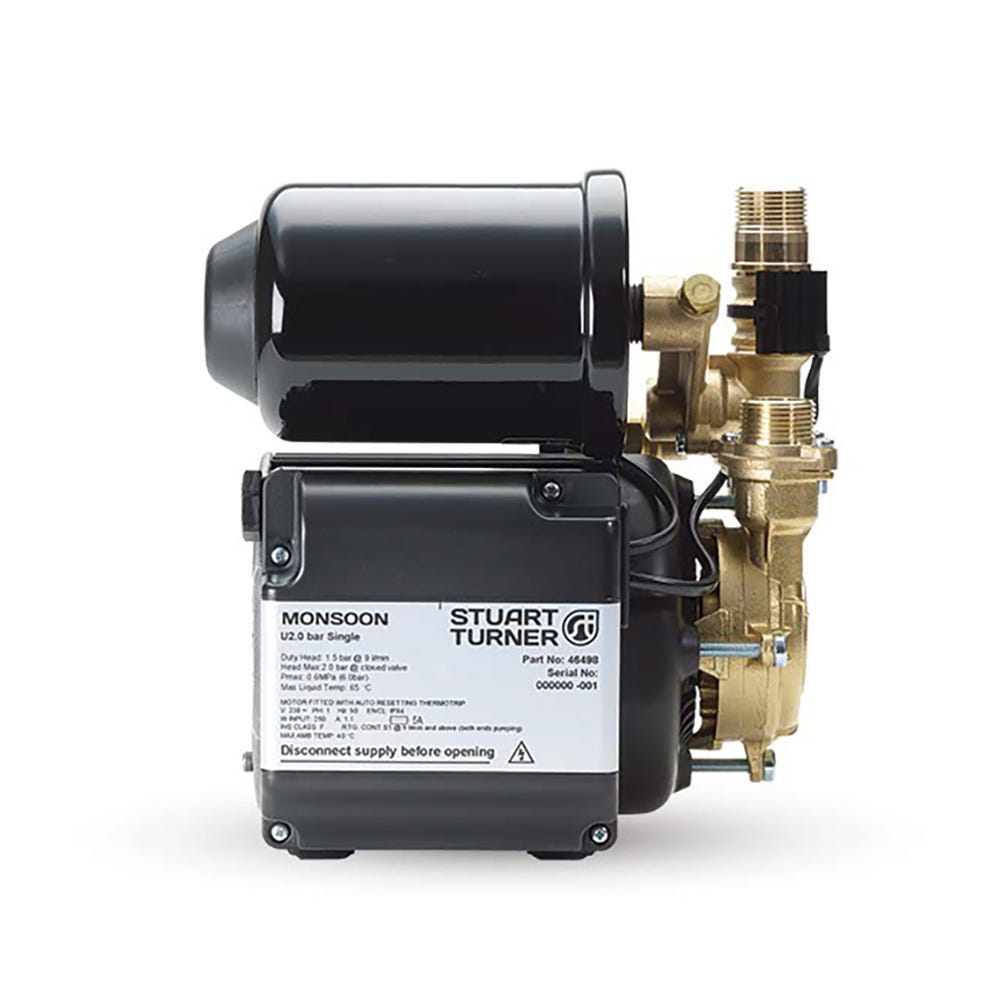

The Monsoon Universal 2.0 bar Single Shower Pump can be used in pairs to boost vented systems to pump hot and cold water supplies independently, or as a single pump to boost a water supply as required. Suitable for both positive and negative head applications

Key Features

• Premium quality brass pump supplied with flexible hoses with integral ISO valves
• Suitable for positive or negative head applications
• Pre-wired with 1.5 metre power cable
• Very quiet operatio
• Continuously rated
• Anti-vibration feet
• EPDM/PTFE/Al. Oxide seal

Technical Information

• Bar Pressure: 2.0
• Flow switch sensitivity: 0.6l/min (approx.)
• Max Inlet head: 8m
• Plumbing connection: G 3/4'' male
• Power supply: 230/1/50
• Enclosure rating: IPX4
• Motor: Induction type, permanent capacitor, auto resetting protective thermo trip
• Power consumption: 250W
• Full load: 1.1A
• Fuse rating: 5A

UK Specification

• Supplied with 22 mm push-in x 300 mm anti-vibration flexible hoses with integral isolating valves

Approvals

• WRAS approved product
• Conforms to UKCA and CE

Warranty

• 5 year warranty
