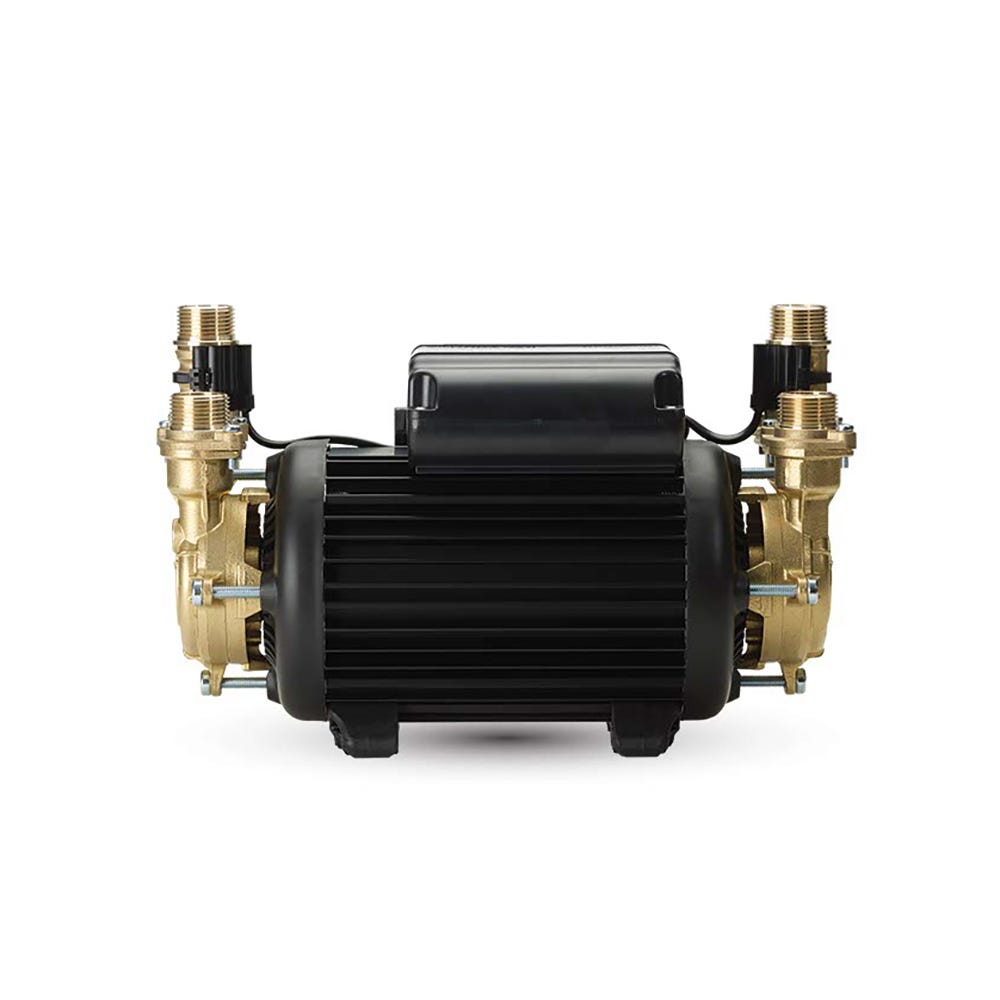

The Monsoon Standard 4.0 bar Twin Shower Pump is designed for installation into vented systems to pump both hot & cold water supplies, boosting both equally to an individual shower, complete bathroom, or whole house.

Key Features

• Premium quality brass pump supplied with flexible hoses with integral ISO valves
• Suitable for positive head applications
• Pre-wired with 1.5 metre power cable
• Very quiet operation
• Continuously rated
• Anti-vibration feet
• EPDM/PTFE/Al. Oxide seal

Technical Information

• Bar Pressure: 4.0
• Flow switch sensitivity: 0.6l/min (approx.)
• Max Inlet head: 14m
• Plumbing connection: G 3/4'' male
• Power supply: 230/1/50
• Enclosure rating: IPX4
• Motor: Induction type, permanent capacitor, auto resetting protective thermo trip
• Power consumption: 890W
• Full load: 4A
• Fuse rating: 13A

UK Specification

• Supplied with 22 mm push-in x 300 mm anti-vibration flexible hoses with integral isolating valves

Approvals

• WRAS approved product

Warranty

• 5 year warranty
