SKU
P004162
Delivery Only
£54.90
Inc VAT

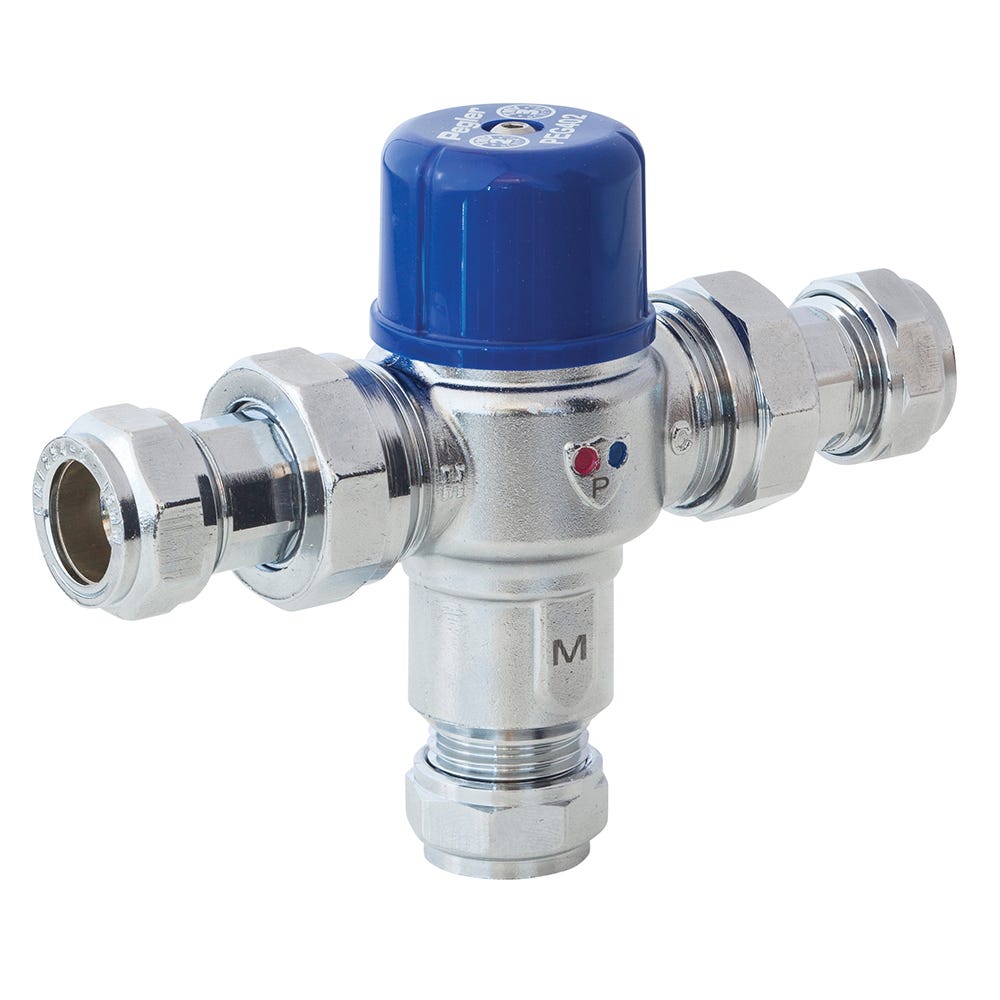

- The Pegler 22mm Thermostatic Mixing Valve is used to blend hot and cold water, ensuring a constant and safe temperature for your domestic hot water outlets
- Features protective caps on valve ports
- 22mm compression joints
- Prevents scalding
- WRAS Approved
Product Information
The Pegler 22mm Thermostatic Mixing Valve ensures that water is delivered at a safe temperature which reduces the risk of scalding.
Key Features
- Blends hot and cold water together in a constant flow, achieving a reliably comfortable temperature
- Designed for use at a single unit like basins, bathtubs and showers
- Should be placed at a maximum distance of 2m from the outlet
- Maximum temperature is 46°C, this is not safe to bathe in
- Mixes water to a preset temperature of 43°C
- Features protective caps on valve ports
- All necessary fittings included
- Prevents scalding accidents
Technical Information
- Temperature range: 38-46 °C
- Flow rate at 1 bar: 17.5 l/min
- Flow rate at 1.5 bar: 22 l/min
- Flow rate at 2 bar: 26 l/min
- Product diameter: 22 mm
- Bar pressure: 0.2-10 bar
- Material: Brass
- Length: 96mm
- Width: 145mm
- Ports: 3
- Pack size: 1
Approvals
- TMV3 Scheme Approved
- Conform to BS EN 1111
- Conform to BS EN 1287
Guarantee
- 2 year manufacturers guarantee
Product Specifications
| Brand: | Pegler |
|---|---|
| MPN: | 5A1402 |
| Diameter: | 22mm |
| Plumb Type: | Safety Valves |
| Valve Type: | Thermostatic |
| Shipping Weight Kg: | 0.54 kg |
| Shipping Dimension 1: | 145 mm |
| Shipping Dimension 2: | 96 mm |
| Shipping Dimension 3: | 22 mm |
- Lead time of 1-2 Working Days
- This product is dispatched from Supplier and is not available for in-store purchase.
- Orders received by 11:00am are processed the same working day.
- Your delivery charge will be displayed in the trolley page and checkout prior to purchase.
- Once the order has been dispatched you will be sent relevant tracking information.
- This item is eligible for returns as per our Returns Policy.
£54.90
Inc VAT
This product is delivery only and is not available in-store
