In stock
SKU
L067053
Click & Collect
£34.20
Inc VAT
- Compliant with 18th Edition Wiring Regulations when installed correctly
- Protects electrical installations from LEMP and SEMP power surges
- Tunnel design terminals for quick and easy wiring
- Generous cable capacity
- Takes up 2 ways
Product Information

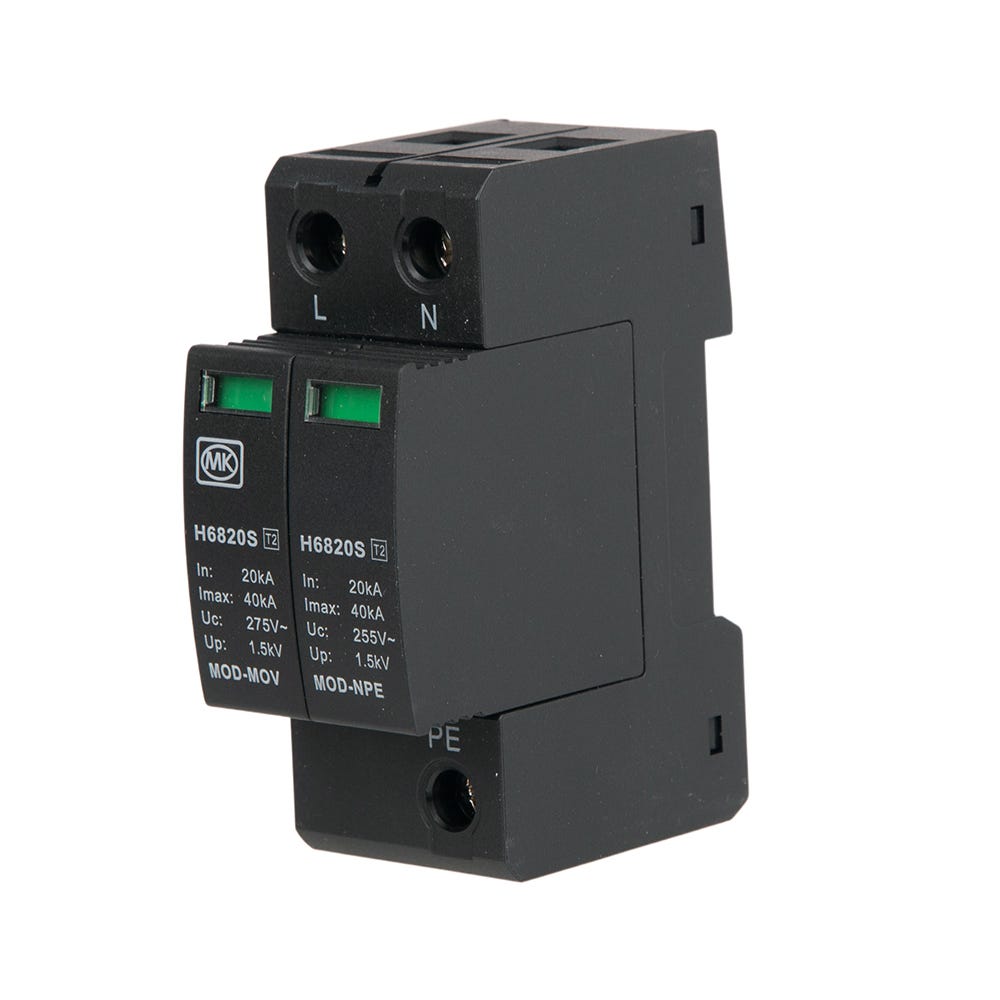

The MK Sentry 50kA 2 Module Type 2 Surge Protection Device protects installations from transient overvoltages. This SPD is suitable for MK consumer units and takes up 2 ways.
Key Features
- Compliant with 18th Edition Wiring Regulations when installed correctly
- Provides protection from LEMP and SEMP power surges
- A great choice for protecting low voltage installations
- Tunnel design terminals allow quick and easy wiring
- Contains a positive contact status indicator
- Ideal for installation in MK consumer units
- 35mm DIN rail mounted
- Takes up 2 ways
- 2 pole SPD
Technical Information
- Operating Temperature: -40 To +80 Degrees Celsius
- Overcurrent Protection: 50kA
- Nominal Voltage: 230V
- Frequency: 50/60Hz
- Number Of Ports: 1
- IP Rating: IP20
- Height: 90mm
- Depth: 72mm
- Width: 36mm
Product Data Sheet (PDF)
Product Specifications
| Brand: | MK |
|---|---|
| MPN: | H6820S |
| Circuit Protection Type: | Surge Protection Device |
| Shipping Weight Kg: | 0.1910kg |
| Shipping Dimension 1: | 95.0000mm |
| Shipping Dimension 2: | 80.0000mm |
| Shipping Dimension 3: | 42.0000mm |
