Discontinued
SKU
L015089
Click & Collect
Need More, Save More
- Up to 4£15.88Inc VAT
- 5 & Over £14.29 Inc VAT
£15.88
Inc VAT

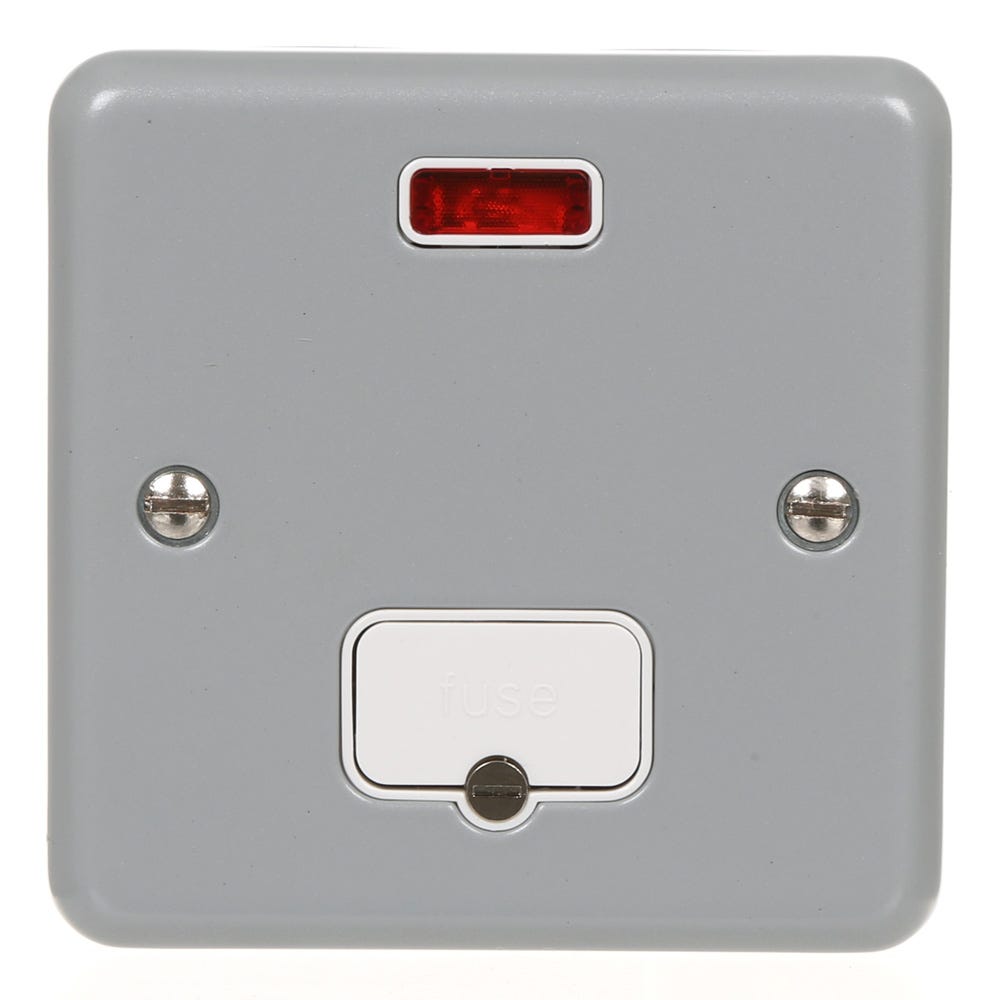

MK Electric Metalclad unswitched neon connection unit fitted with earth terminal and 13A fuse
Product Information
MK Metalclad 13A fused connection units have been designed for the connection of refrigerators, water heaters, central heating boilers and many other fixed appliances.
Key Features
Technical Data
Voltage Rating : 250V AC
Current Rating : 13A
IP Rating : IP2XD
Terminal Capacity : Live, Neutral and Earth
3 x 2.5mm²
2 x 4mm²
2 x 6mm² Stranded
Standards
Connection Units comply with BS 1363 Part 4: 1995.
Key Features
- Worm drive operated fuse carriers
- Lockable fuse carriers (Open position)
- Supply and load cables can be cut to same length
- Push-fit cord grips
- Angled top mounted terminal screws
- Backed out and captive terminal screws
- Neon indication
Technical Data
Voltage Rating : 250V AC
Current Rating : 13A
IP Rating : IP2XD
Terminal Capacity : Live, Neutral and Earth
3 x 2.5mm²
2 x 4mm²
2 x 6mm² Stranded
Standards
Connection Units comply with BS 1363 Part 4: 1995.
Product Specifications
| Brand: | MK |
|---|---|
| MPN: | K983ALM |
| Range: | MK Metal Clad Plus |
| Finish: | Metal Clad |
