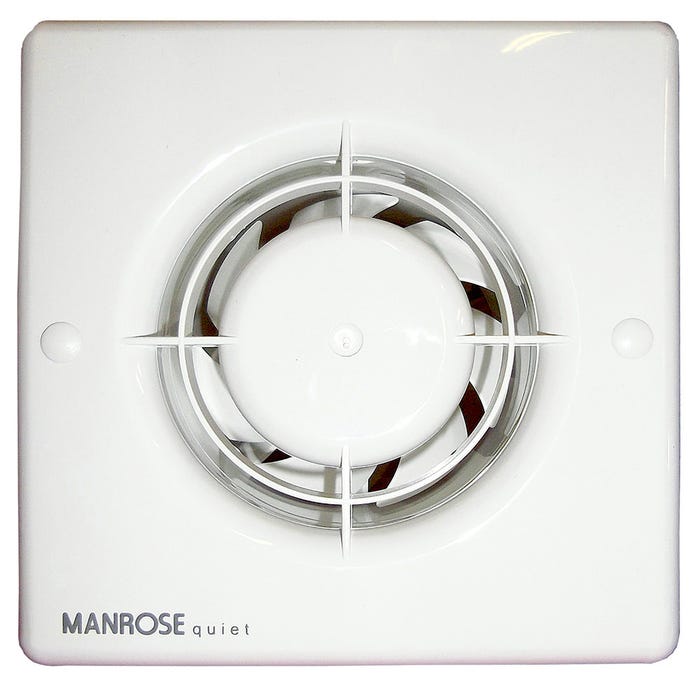

Ideal for wall and ceiling domestic ventilation applications the QF100 is a high quality fan offering high extraction rates and minimal noise.
Product Information
The Manrose Quiet Fan is the latest in domestic ventilation to incorporate a high extraction whilst keeping noise levels to a minimum. Designed for wall and ceiling mounting this comprehensive range is ideal for bathrooms and toilets.
Key Features
- The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor
- A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted
- These fans are double insulated and do not require an earth
- All wiring must comply with current IEE regulations
- Manufactured using high ABS thermoplastics
- Suitable for bathroom zone 2 and 3
- High-quality, long-life motor
- 60% reduction in sound
- Low energy consumption
- Timer Model
Technical Information
- Maximum Operating Temperature: 40°C
- Extraction Rate: 75m³/hr, 21 litres per second
- Fan Speed: 2300 r.p.m
- Maximum Pressure: 23 p.a
- Sound Volume: 27 dB(A)
- IP Rating: IP44
- Width: 163mm
- Height: 163mm
- Depth: 111mm
- Spigot Diameter: 100mm
Product Specifications
| Brand: | Manrose |
|---|---|
| MPN: | QF100T |
