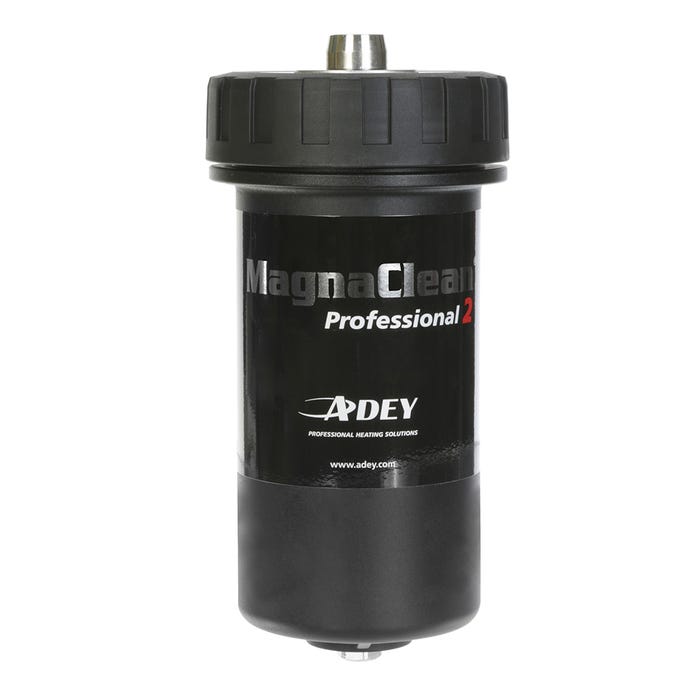

This Magnaclean 22mm Professional 2 Magnetic Filter has been expertly designed by ADEY to protect your heating system, backed by rigorous testing and quality control. Engineered to actively trap virtually all circulating debris, it can catch all magnetic and non-magnetic debris. The Magnaclean does not stop your system from rusting away, it merely reduces the damage caused by this rust and extends the lifespan of the system and reduces maintenance. This product offers first-class protection from boiler breakdown, energy bill reduction and carbon emissions released from the home.

Key Features

• 4400 thermal cycles
• Valves subjected to endurance testing
• Hydrostat burst tested at ambient and 90°C
• Low-profile drain valve designed for easier servicing
• 360˚ isolation valves for ease and flexibility of installation
• Unique quick-release system assists with easier and faster servicing
• Bi-directional flow allows any port to be an inlet with full capture capability
• Multi-pipework orientations make it ultra-flexible to install horizontally or vertically
• Ultra-thin sheath/sleeve maximises the magnetic force available to increase capture rate
• Extra thick 5mm canister walls reduce heat loss from the filter & increase product's lifespan
• EPDM rubber seal reduces compression impact & provides excellent high temperature resistance
• The powerful magnet attracts and keeps hold of tiny particles (as small as 2-8 microns in diameter)
• Magnetic and non-magnetic debris capture zones capture all damaging particle sizes in the system water for complete system protection

Technical Information

• Height (mm): 203
• Width at lid (mm): 98
• Fluid capacity (ml): 550
• Inlet diameter (mm): 22 (at valve)
• Outlet diameter (mm): 22 (at valve)

Installation Instructions

• Always follow the electrical and safety standards when installing a filter
• It is recommended that the filter is installed by a qualified heating engineer

Maintenance Instructions

• When the magnet is completely covered, you just take it out, clean it and put it back in again
• It must be cleaned on regular basis to prevent pipes from clogging up making your heating efficient

Storage

• If this product is not being installed immediately, ensure it is stored in a dry, frost-free location in its original packaging

Approvals

• Quality standards: ISO 14001 certified

Guarantee

• This product comes with a 10 Year warranty. Please be sure to Register Your MagnaClean Appliance to activate the warranty and refer to MagnaClean's Warranty Terms and Conditions for more information

Product Disclaimer

Please note: The Magnaclean does not stop your system rusting away, it merely reduces the damage caused by this rust and extends the lifespan of the system and reduces maintenance
