SKU
L074100
Click & Collect
£15.00
Inc VAT

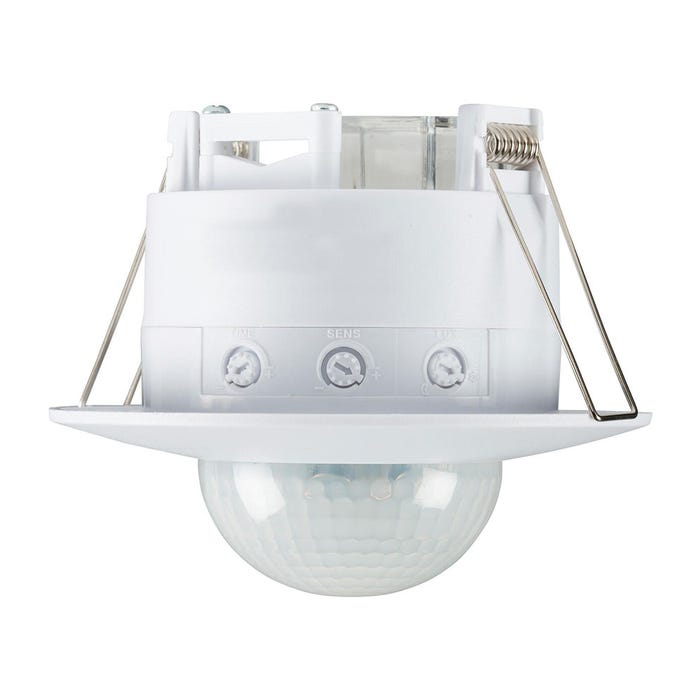

- This Knightsbridge Wide Range PIR sensor is for recess installations
- Has a 360° detection field with a 2-20m range
- IP20 rated and for indoor use only
- White colour
Product Information
This Knightsbridge 360° Wide Range PIR Sensor detects movement up to 20m, making it the ideal addition to your indoor security and lighting system. The PIR sensor comes in a classic white finish and is suitable for indoor use, with an IP20 rating.
Key Features
- This PIR sensor can be wired in parallel
- 360° field of detection from 2-20m
- Made of durable polycarbonate
- Has adjustable time and lux
- Ideal for ceiling installations
- Designed for recess fitting
- Suitable for indoor use
- White
Technical Information
- Maximum Load: 2000W Incandescent / 1000W LED
- Sensor Duration: 10 seconds - 10 minutes
- Optimum Detection Range: 2-20m
- Cut-Out Diameter: 80mm
- Overall Height: 90mm
- Diameter: 110mm
- Projection: 34mm
- IP Rating: IP20
- Finish: White
- Class: II
Approvals
- Please see the Declaration of Conformity PDF attached for full details on which regulations this wide range PIR sensor conforms to
- EN 60669-2-1
- EN 60669-1
Guarantee
- 2-year manufacturer's warranty
Product Data Sheet (PDF)
Product Specifications
| Brand: | Knightsbridge |
|---|---|
| MPN: | OS0016 |
| Colour: | White |
| Finish: | White |
| Ip Rating: | IP20 |
| Lighting Type: | PIR Sensor |
| Voltage: | 230/240V |
| Shipping Weight Kg: | 0.18 kg |
| Shipping Dimension 1: | 115 mm |
| Shipping Dimension 2: | 115 mm |
| Shipping Dimension 3: | 95 mm |
