SKU
H005012
Click & Collect
£84.41
Inc VAT
- 2700mm single leaf lintel
- Suitable for standard loading conditions
- Fully galvanised for corrosion resistance
- Complies with all relevant British Standards
- Used to support the wall above doors and windows
Product Information

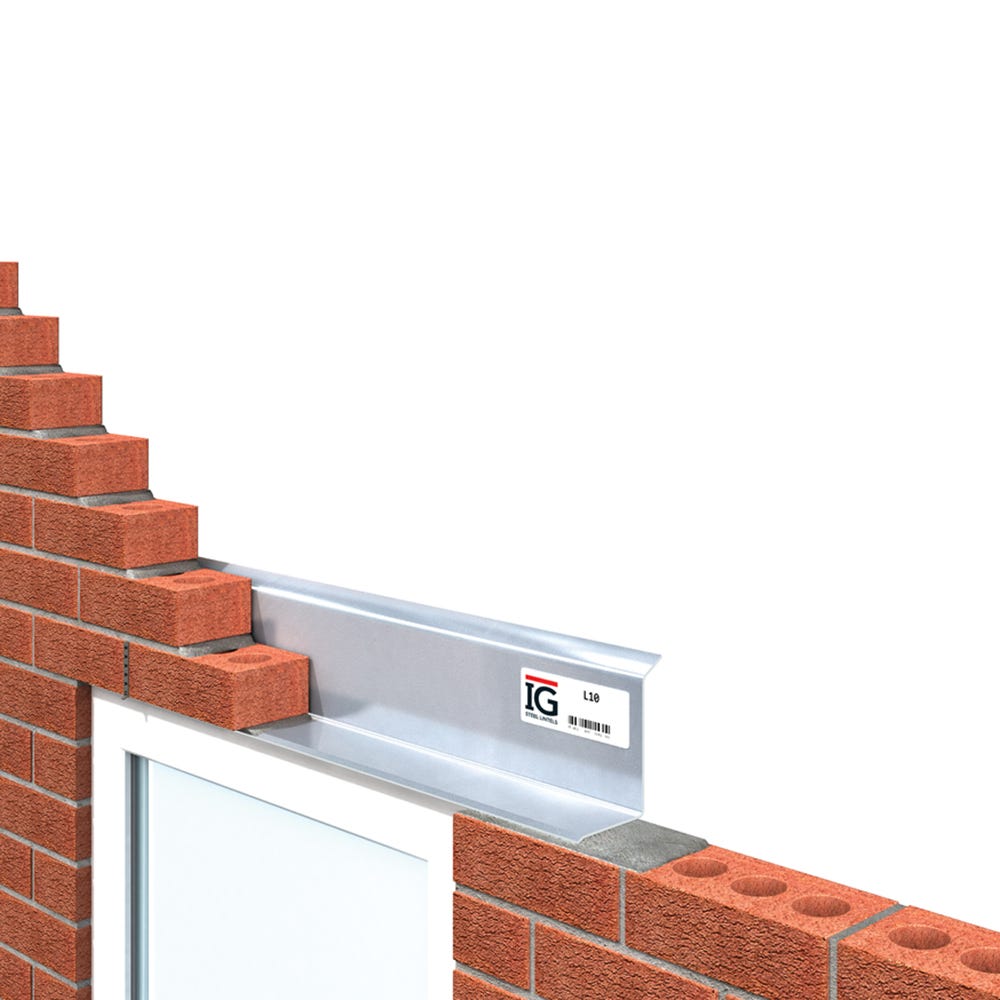

This IG L10 2700mm Single Leaf Lintel has an L-shaped cross-section which is used to support the outer leaf of cavity wall construction. These L10 lintels are fully galvanised for corrosion resistance and come complete with a small bend at the top back edge that can be propped to facilitate the speed of construction. This lintel can also be supplied with no top bend.
Key Features
- Suitable for standard loading conditions
- All cut edges are treated with a corrosion resistant paint
- Commonly used to support the wall above doors and windows
- IG lintels satisfy the thermal performance requirements of all UK building regulations
- Manufactured from high-quality grade galvanised steel with a minimised spangle finish
- Lintels should have a minimum end bearing of 150mm on each side of the opening, bedded on mortar
Technical Information
- Length: 2700mm
- Material: Galvanised steel
- Finish: Minimised spangle
Approvals
- Material Specification: High quality grade galvanised steel to BS EN 10346:2009
- Fire Performance: IG lintels have been subjected to a fire test in accordance with BS 476: Part 20: 1987
- Lintel Life Span: The IG lintel range complies with the technical requirements of the BLP (Building Life Plans) regarding the durability data of mild steel, cold formed lintels
- Structural Performance: The structural performance figures have been ascertained by testing in accordance with the requirements of standards BS 5977 Part 2 1983 and BS EN 845-2:2003
Product Specifications
| Brand: | IG |
|---|---|
| MPN: | IL1027 |
| Length: | 2700mm |
| Lintel Type: | Single Leaf Lintel |
| Shipping Weight Kg: | 5.36 kg |
| Shipping Dimension 1: | 2700 mm |
| Shipping Dimension 2: | 283 mm |
| Shipping Dimension 3: | 88 mm |
