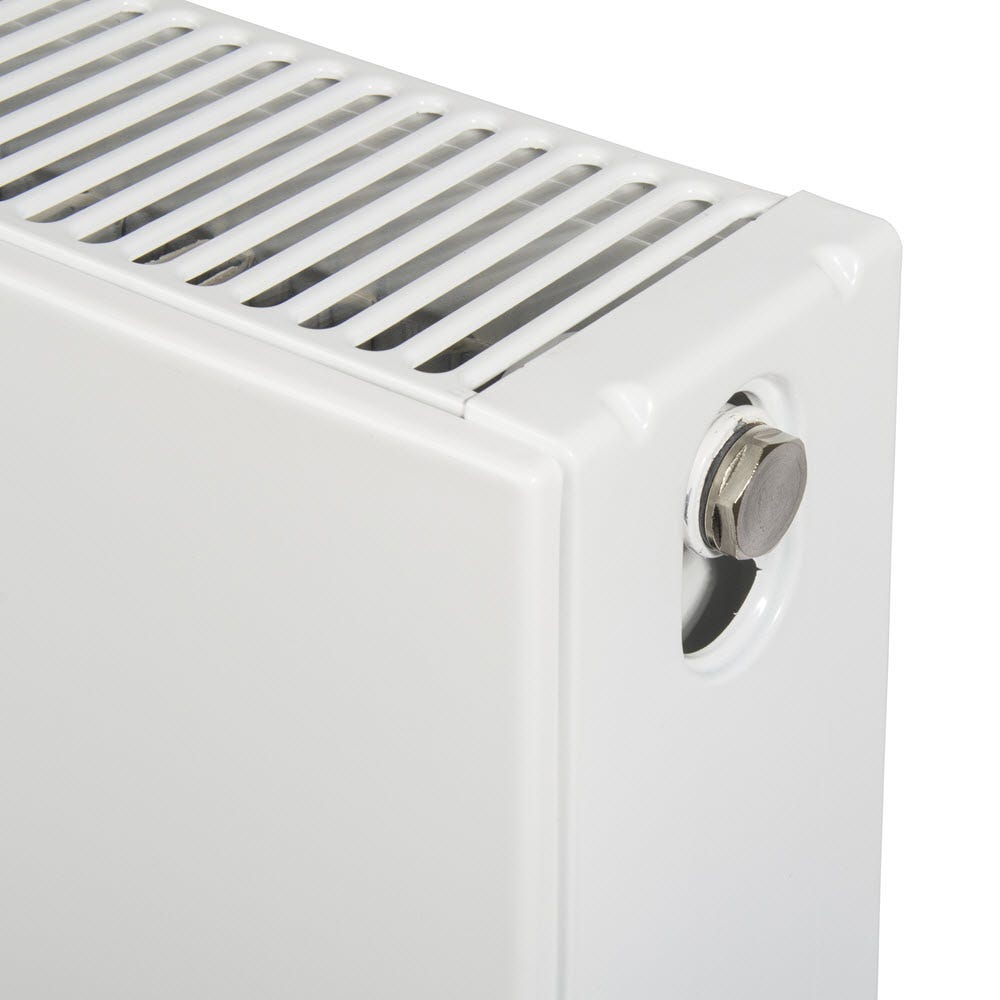

This Heat Pro ProFlat Compact Panel Radiator enhances any room with its space-saving elegant design and excellent heating efficiency. This type 22 radiator is finished with a flat front panel with integral grilles and side panels to give a contemporary aesthetic that is perfect for any modern home.

Key Features

• The neat nickel-plated plug and vent provide a watertight joint, whilst complementing the superior finish
• The brackets included are strong and have a convenient open top and deep-slotted design
• Everything required for installation can be found within the robust packaging
• Comes with all the fixtures and fittings needed for installation
• The plastic inserts seat the radiator precisely on its brackets
• This type 22 radiator is suitable for two pipe installations
• The flat front panel makes the radiator easy to clean
• Has a classic bright white RAL 9016 finish
• Minimal contraction and expansion noise
• Sleek modern flat front panel design
• Excellent heating performance

Technical Information

• Tapping Centres: 82.5 / 97.5mm
• BTU Output at DT60: 3133
• BTU Output at DT50: 2591
• Type: 22 / Double Panel
• Connections: 4 x 1/2''
• Watts Output: 918
• Height: 400mm
• Width: 600mm
• Depth: 105mm

Approvals

• Conforms to BS EN 442

Guarantee

• 10-year manufacturer's guarantee

Installation Instructions

• Each ProFlat Compact radiator has 4 x 1/2'' connections as standard. 3/4'' valve adaptors are available, which provides a 3/4'' connector option to the valve without reducing performance
• For single pipe applications, it is advisable to use diversion tees in the pipework
• Suitable for installation at least 100mm from the floor

If you have questions like 'what is a type 22 radiator?', see our Radiator Types buying guide.
