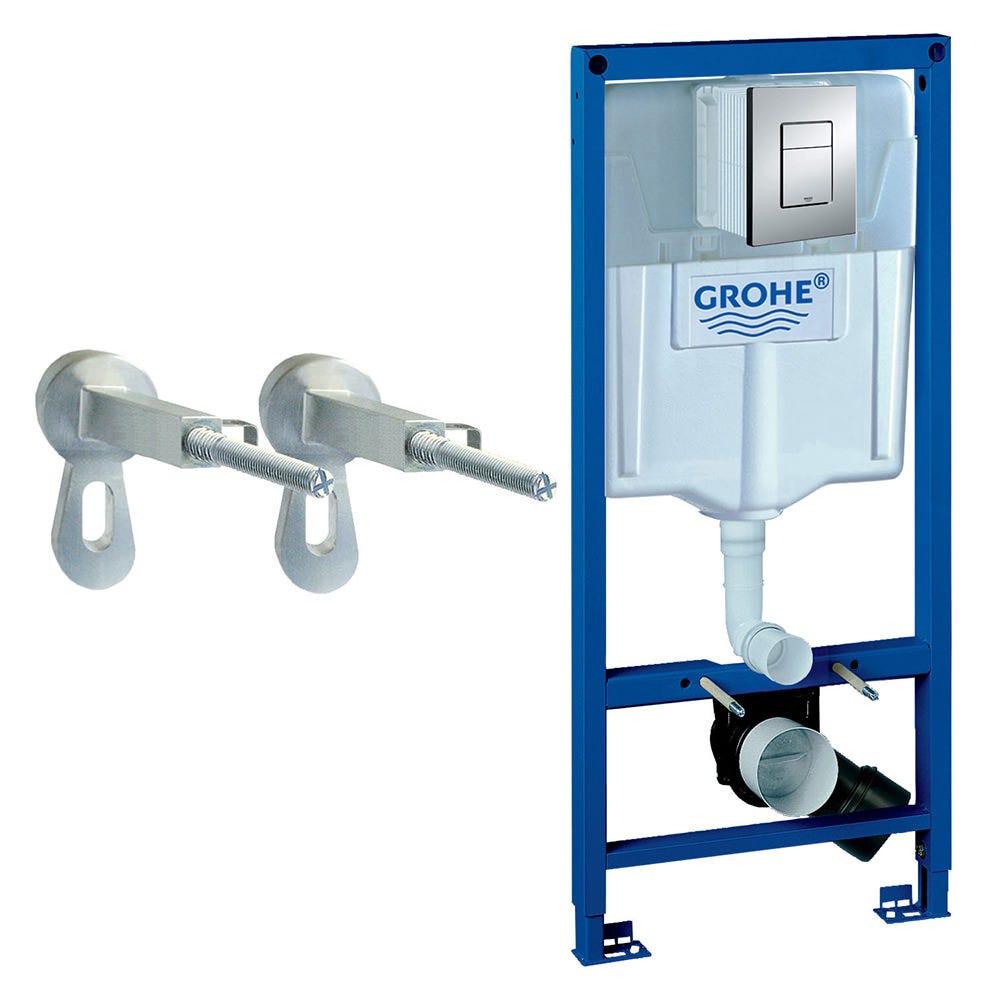

- Grohe Rapid SL 1.13m SL 3 In 1 Toilet Frame Set
- Can be installed in front of a solid wall or within a stud wall
- GROHE Whisper technology reduces noise transmission for a quieter flush
- The steel frame is certified to hold loads of over 400 kg for ultimate stability
- GROHE EcoJoy dual flush system can reduce water consumption by up to 50%
- Comes complete with wall brackets and an attractive Skate Cosmopolitan chrome flush plate
Product Information
This Grohe Rapid SL 1.13m 3 In 1 Toilet Frame Set With Skate Plate is a heavy-duty, premium construction frame that is certified to hold loads of over 400kg for ultimate stability. Able to be installed in front of a solid wall or within a stud wall, the GROHE QuickFix system requires no tools to connect the hose, inspection shaft and water supply, meaning fitting is quick and straightforward.
This frame also comes with helpful technology, may this be the GROHE EcoJoy dual flush system which reduced water consumption by up to 50%, or the GROHE whisper technology which minimises noise transmission due to its engineered low-noise fittings and separate plumbing. The set comes complete with wall brackets and an attractive Skate Cosmopolitan chrome flush plate.
Key Features
- Insulated against condensation
- Certified to hold loads of over 400 kg
- Suitable for single or series installation
- Compact design with self-supporting legs
- 3-in-1 installation set for wall-hung toilets
- Quick adjustment with lockable fixing material
- GROHE Whisper technology for a quieter flush
- Water supply can be joined from left, right or back
- Powder-coated steel construction promises durability
- Suitable for on-the-wall installations or studded walls
- GROHE QuickFix system ensures quick and easy installation
- GROHE EcoJoy dual flush system reduces water consumption by up to 50%
- Pneumatic discharge valve offering 3 modes of operation: Dual flush, start/stop and non-interruptible
- No tools are required for installation of the inspection shaft, including protection during the construction phase
Technical Information
- Outlet bend: 90mm
- Installation Height: 1.13m
- Flush Plate: 156 x 197mm
- Adjustment Height: 200mm
- Water supply connection: ½''
- Adjustment ex factory: 6L and 3L
- Depth adjustable reducer: 90/100mm
- Steel frame distance for fixing bolts: 180/230mm
Product Includes
- Rapid SL Element for WC (38 528 001)
- Rapid SL front wall brackets (38 558 00M)
- Skate Cosmopolitan flush plate, chrome (38 732 000)
Matching Products
Maintenance Instructions
- Do not use abrasive sponges, scouring agents, organic solvents or acidic cleaners, limescale removers, household vinegar or cleaners containing acetic acid for cleaning
Approvals
- TUV approved
Guarantee
Product Specifications
| Brand: | Grohe |
|---|---|
| MPN: | 38772001 |
| Frame Height: | 1.13m |
| Flush Plate Finish: | Chrome |
| Flush Plate Dimensions (H x W x D): | 197mm x 156mm x 12mm |
| Guarantee: | 5 Years |
