In stock
SKU
L049237
Click & Collect
£2.88
Inc VAT
- Soft close mechanism
- Opens doors at a 110° angle
- Can be easily fixed using 2 screws
- Compatible with doors up to 24mm
- Suitable for doors that finish over cabinet frames
Please Note: These hinges require the purchase of a matching mounting plate for installation
Product Information

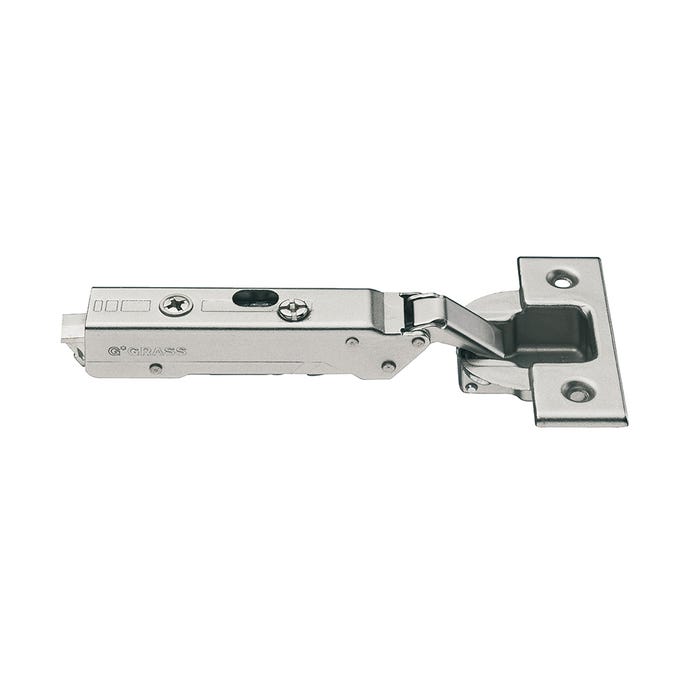

The Hafele Grass Overlay Clip-on Hinge 110° Screw Fixing has a stylish nickel plated finish and is suitable for all standard applications. This clip-on overlay hinge is designed for doors that finish over the cabinet, and opens doors at a 110° angle.
Key Features
- Neatly fixes to the door with 2 screws, which can be concealed below a push-in cover
- Includes a soft-close mechanism integrated into the hinge arm
- Requires cabinet door to be cup drilled for hinge installation
- Clip-on arm which easily attaches to mounting plate
- Ideal for doors that finish over the cabinet frame
- Made from durable nickel plated steel
- Suitable for doors up to 24mm thick
Technical Information
- Maximum compatible door thickness: 24mm
- Concealed hinge version: Full overlay
- Cup drilling diameter: 35mm
- Cup drilling depth: 12.6mm
- Drilling pattern: 45/9.5
- Finish: Nickel plated
- Opening angle: 110°
- Material: Steel
Required Products
Matching Products
Image Disclaimer
Product DOES NOT INCLUDE the hinge cover shown in the image above.Product Specifications
| Brand: | Hafele |
|---|---|
| MPN: | 348.31.801 |
| Finish: | Zinc |
| Hinge Type: | Clip-On |
| Shipping Weight Kg: | 0.1300kg |
| Shipping Dimension 1: | 80.0000mm |
| Shipping Dimension 2: | 65.0000mm |
| Shipping Dimension 3: | 30.0000mm |
