SKU
L049238
£4.07
Inc VAT
- Soft close mechanism
- Opens doors at a 110° angle
- Compatible with doors up to 24mm
- Suitable for doors that finish over cabinet frames
- Can be easily fixed to a cup drilled cabinet door using a secure push-in system
Please Note: These hinges require the purchase of a matching mounting plate for installation
Product Information

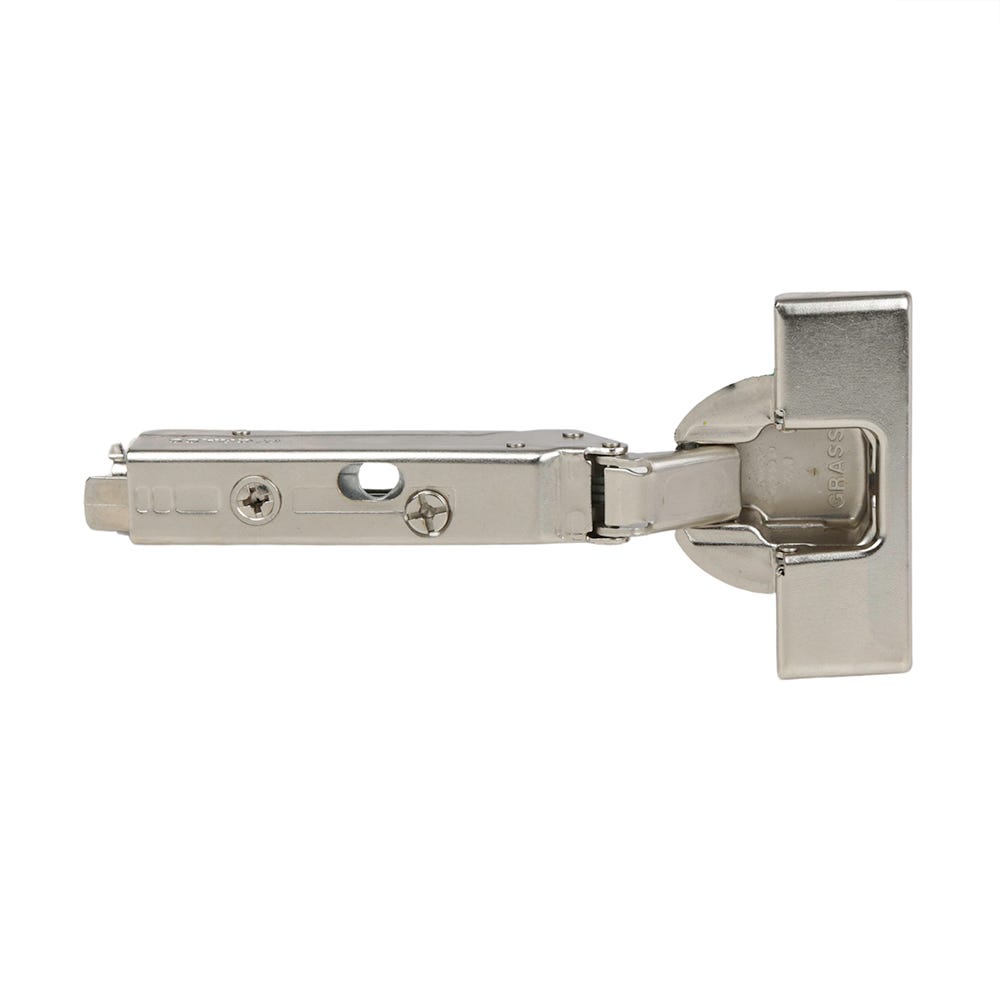

The Hafele Grass Overlay Clip-on Hinge 110° Impresso Fixing has a stylish nickel plated finish and is suitable for all standard applications. This clip-on overlay hinge is designed for doors that finish over the cabinet, and opens doors at a 110° angle.
Key Features
- Secure push-in system, requiring no screws to attach hinge to a cup drilled cabinet door
- Includes a soft close mechanism integrated into the hinge arm
- Requires cabinet door to be cup drilled for hinge installation
- Clip-on arm which easily attaches to the mounting plate
- Ideal for doors that finish over the cabinet frame
- Can be concealed below a push-in cover
- Made from durable nickel plated steel
- Suitable for doors up to 24mm thick
Technical Information
- Maximum compatible door thickness: 24mm
- Concealed hinge version: Full overlay
- Cup drilling diameter: 35mm
- Cup drilling depth: 12.6mm
- Drilling pattern: 45/9.5
- Finish: Nickel plated
- Opening angle: 110°
- Material: Steel
Required Products
Matching Products
Image Disclaimer
Product DOES NOT INCLUDE the hinge cover shown in the image above.Product Specifications
| Brand: | Hafele UK |
|---|---|
| Finish: | Zinc |
| Hinge Type: | Clip On |
| Pack Size: | Single |
