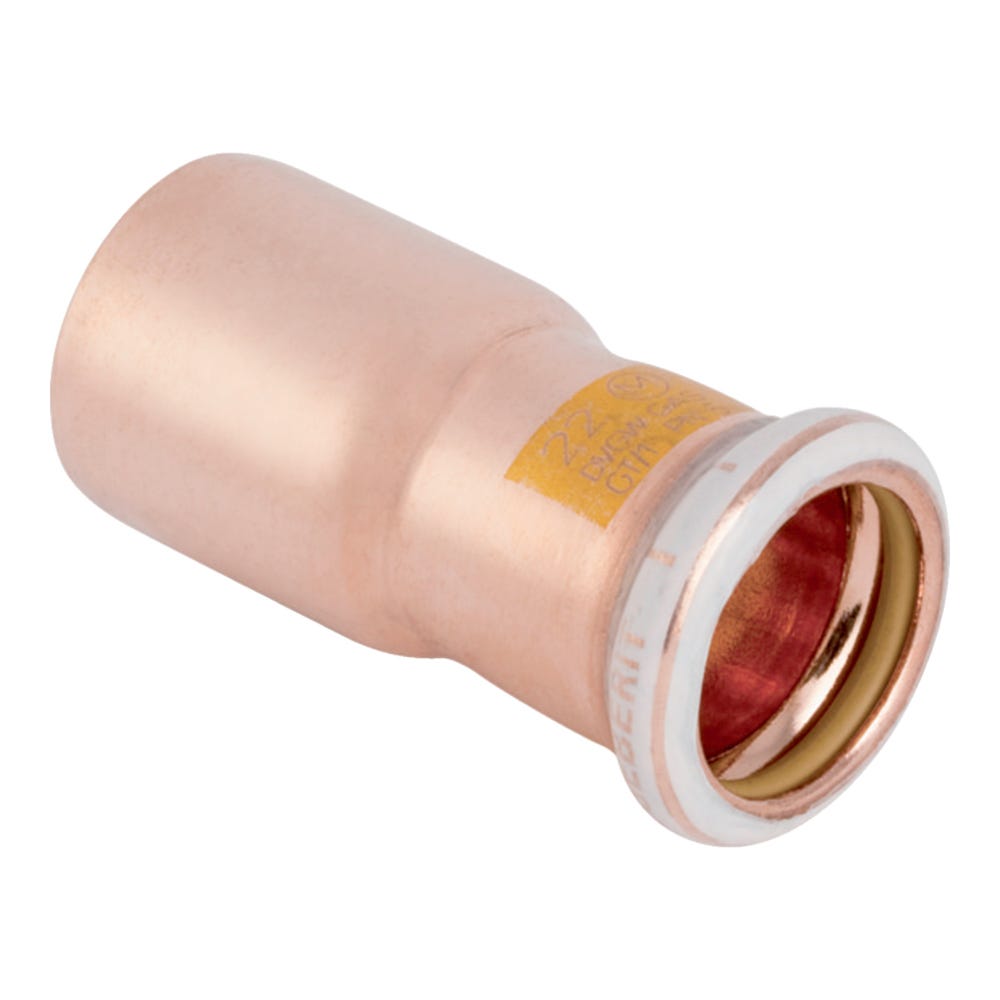

This Geberit Mapress Gas Reducer with Plain End 22 x 15mm connects a 22mm pipe to a 15mm pipe, creating a precise reduction. As part of the Mapress range, it provides a flame-free installation alternative to traditional soldered, welded or threaded fittings, creating a reliable connection with reduced installation time.

Key Features

• Yellow identification markings and a protection plug make it easy to distinguish from water fittings, reducing the chance of installation errors
• Press-fit technology enables fast, flame-free installation using compatible pressing tools, improving safety on-site
• Yellow HNBR (gas-approved) seal ring ensures a secure, leak-proof connection for gas applications
• The pressing indicator provides visual confirmation once the fitting has been properly installed
• Manufactured from high-grade Cu-DHP copper for strength, durability, and corrosion resistance
• ‘Leaky if unpressed’ safety feature clearly indicates any unpressed connections during testing
• For connecting a 22mm pipe to a 15mm pipe, with one plain end, creating a precise reduction
• Wide operating temperature range from -20°C to +70°C
• Suitable for natural gas and LPG systems

Technical Information

• Seal Ring: Yellow HNBR (Hydrogenated Nitrile Rubber)
• Operating Temperature: -20°C to +70°C
• Material: Cu-DHP Copper CW024A
• Type: Reducer with Plain End
• Diameter: 22mm, 15mm
• Length: 29mm
• Brand: Geberit

Approvals

• EN 1412

Product Disclaimer

• This press fit fitting should be used with high-quality copper pipes in accordance with DIN EN 1057
