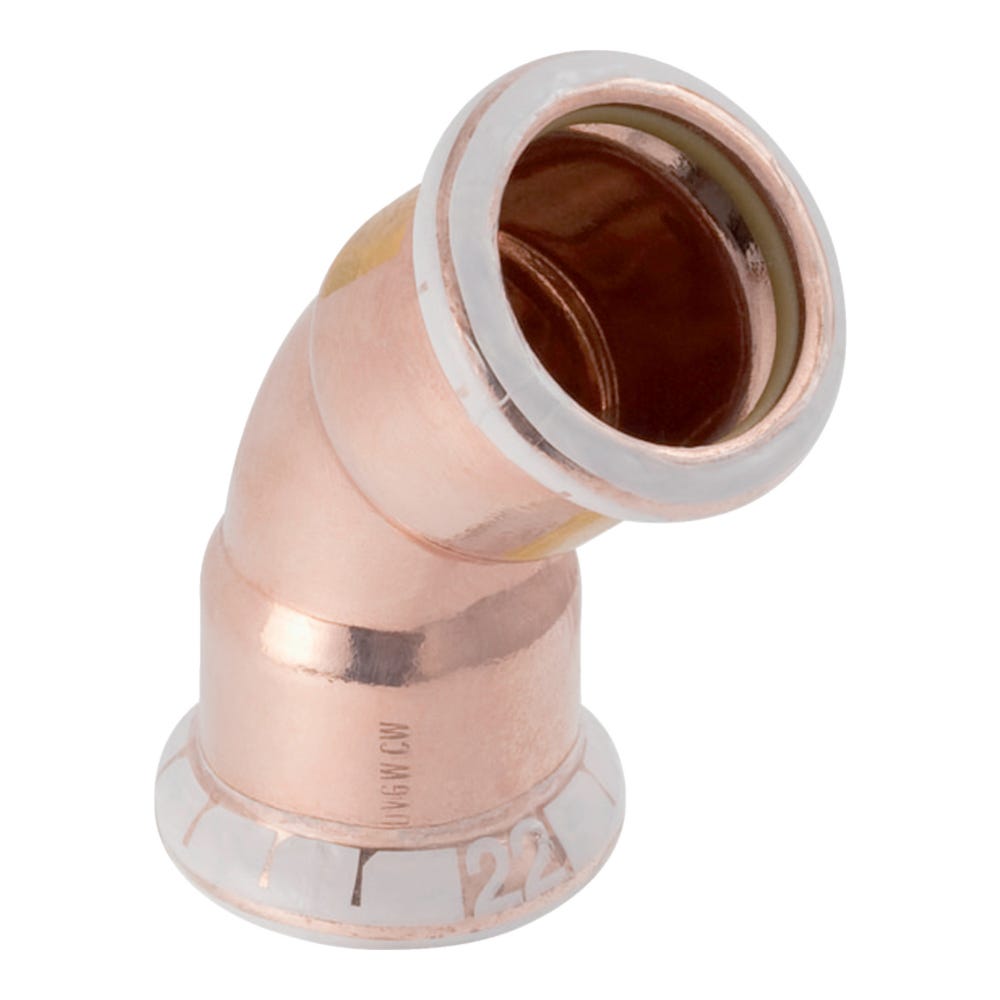

- This Geberit Mapress press fit 45° gas elbow connects two 22mm pipes at an angle
- Yellow HNBR gas-approved seal ring, ‘leaky if unpressed’ safety feature and pressing indicator
- Suitable for both natural gas and LPG installations
- Yellow colour-coded for clear gas identification
- 22mm diameter, 32mm length
Product Information
This Geberit Mapress 22mm Press Fit 45° Gas Elbow connects two 22mm pipes at an angle in gas installations. As part of the Mapress range, it provides a flame-free installation alternative to traditional soldered, welded or threaded fittings, creating a reliable connection with reduced installation time.
Key Features
- Yellow identification markings and a protection plug make it easy to distinguish from water fittings, reducing the chance of installation errors
- Press-fit technology enables fast, flame-free installation using compatible pressing tools, improving safety on-site
- Yellow HNBR (gas-approved) seal ring ensures a secure, leak-proof connection for gas applications
- The pressing indicator provides visual confirmation once the fitting has been properly installed
- Manufactured from high-grade Cu-DHP copper for strength, durability, and corrosion resistance
- ‘Leaky if unpressed’ safety feature clearly indicates any unpressed connections during testing
- For connecting two 22mm pipes at an angle in gas installations
- Wide operating temperature range from -20°C to +70°C
- Suitable for natural gas and LPG systems
Technical Information
- Seal Ring: Yellow HNBR (Hydrogenated Nitrile Rubber)
- Operating Temperature: -20°C to +70°C
- Material: Cu-DHP Copper CW024A
- Type: 45° Gas Elbow
- Diameter: 22mm
- Length: 32mm
- Brand: Geberit
Approvals
- EN 1412
Product Disclaimer
- This press fit fitting should be used with high-quality copper pipes in accordance with DIN EN 1057
Product Specifications
| Brand: | Geberit |
|---|---|
| MPN: | 34516 |
| Pack Size: | 5 |
| Diameter: | 22mm |
| Plumb Type: | Elbows |
| Shipping Weight Kg: | 0.076 kg |
| Shipping Dimension 1: | 64 mm |
| Shipping Dimension 2: | 44 mm |
| Shipping Dimension 3: | 22 mm |
