SKU
K025080
Click & Collect
£22.74
Inc VAT

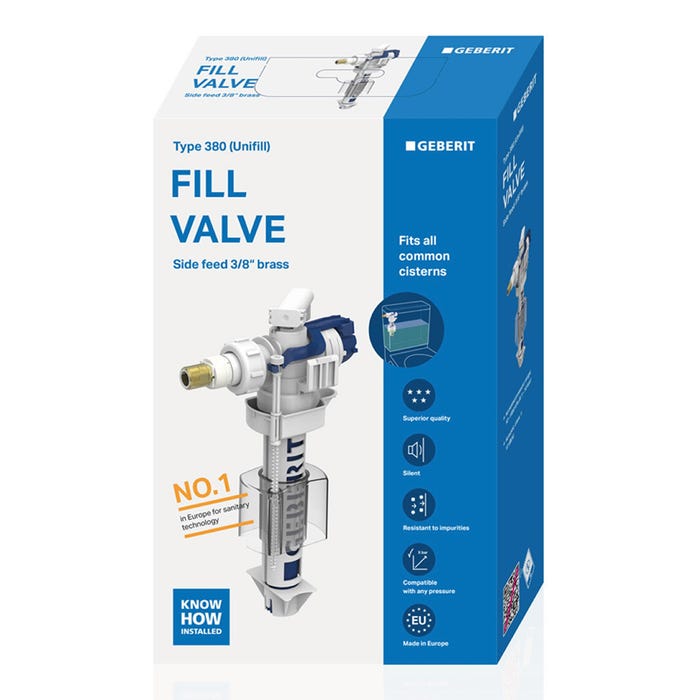

- Geberit Fill Valve Type 380AG Boxed Pack, Lateral Connection, 3/8", brass nipple
- For installation in exposed cisterns with lateral water supply connection
- Backflow prevention type AG (free outlet with overflow)
- Water supply connection on the left/right
- Adjustable filling height
Product Information
The universal Geberit Side Supply Fill Valve Type 380AG fits all Geberit Sigma, Omega and Delta Duofix and Concealed Cisterns. It also fits other exposed Close Coupled Ceramic and Concealed Cisterns with a side connection, as well as Geberit Monoliths. It comes with a wide range of connections in a handy pack to ensure compatibility with your existing cistern. There is no need to replace older exposed cisterns just because a fill valve is defective or their water consumption no longer corresponds to state-of-the-art technology. There are appropriate Geberit fill valves not only for every older Geberit concealed cistern manufactured since 1964, but also for exposed or other cisterns from numerous manufacturers of ceramic appliances.
Application Purpose
Application Purpose
- For installation in exposed cisterns with lateral water supply connection
- For ceramic cisterns
- For greywater (rainwater) with pH value 6.0–9.5, if a filter system is used
- For potable water
- Adjustable filling height
- Threaded nipple made of brass
- Water supply connection on the left/right
- Backflow prevention type AG (free outlet with overflow)
- Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075
- Flow pressure 0.1-10 bar
- Maximum storage temperature 40°C
- Maximum operating temperature, water 25°C
- Flush volume large (Adjustment range): 4.5 / 6 / 7.5 litres
- Adaptor for nipple, for fill valve type 350
- Cone screw fitting
- 5 Year Product Guarantee. For more information, please see Geberit's Product Guarantee Terms & Conditions
Specification Sheet (PDF)
Installation Manual (PDF)
Product Specifications
Brand: | Geberit |
---|---|
MPN: | 245.894.00.1 |
Product Type: | Sanitary Fixings |
Shipping Weight Kg: | 0.356 kg |
Shipping Dimension 1: | 260 mm |
Shipping Dimension 2: | 158 mm |
Shipping Dimension 3: | 67 mm |
