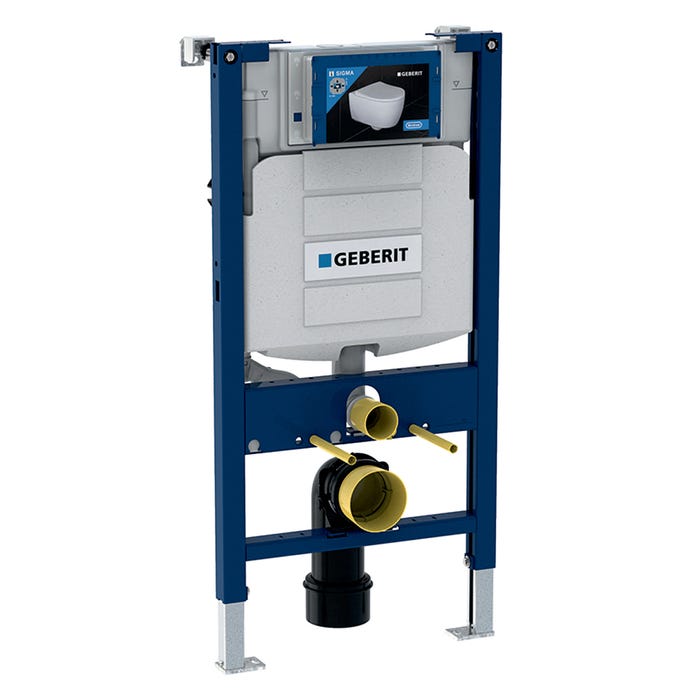

Geberit Duofix Sigma WC Frame 0.98m with Concealed Cistern

SKU
K021503
bathroomshowrooms@builderdepot.co.uk 020 8362 8136

For large-scale projects with over 10 bathrooms, we provide extensive contract support. For assistance, please call or email us to receive a personalised quote tailored to your specific needs.

Geberit Duofix Sigma WC Frame 0.98m with Concealed Cistern

SKU
K021503
Click & Collect
£247.14 Inc VAT
  • Neatly concealed behind the wall, it's the perfect solution for every style, shape and space - from standard installations to under a window or sloping ceiling
  • This frame system sits within pre or drywall installations, bolted to the floor, supporting the sanitaryware and keeping it firmly in place
  • With Geberit Duofix, it’s easy to create a great contemporary look in any bathroom or cloakroom
  • Strong, secure and flexible
  • Front actuation only

Please note that Geberit Sigma frames and cisterns are only compatible with Geberit Sigma flush plates. Matching the frame, cistern, and flush plate series is essential to ensure proper fit and function.

bathroomshowrooms@builderdepot.co.uk 020 8362 8136

For large-scale projects with over 10 bathrooms, we provide extensive contract support. For assistance, please call or email us to receive a personalised quote tailored to your specific needs.

Product Information

Geberit Duofix frame systems is the smart way to install sleek modern looking wall-hung toilets. The Geberit Duofix Sigma WC Frame 0.98m is constructed using heavy-duty steel, then galvanised to give superb durability. It features a compact height frame ideal for installation in stud walls, includes a top quality cistern with half and full flush options and offers tool-free maintenance. This Frame is compatible with any of our Sigma Flush Plates.

Application Purpose
  • For drywall construction
  • For installation in part-height Geberit Duofix system walls
  • For installation in part-height pre-wall installations
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011
  • For wall-hung WCs with projection up to 62 cm
  • For floor constructions 0–20 cm
Characteristics
  • Self-supporting frame, powder-coated
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
  • Galvanized feet
  • Feet adjustable 0–20 cm
  • Non-slip leg supports
  • Rotatable foot plates
  • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
  • Fastening for connection bend, sound-absorbing
  • Concealed cistern with front actuation
  • Concealed cistern fully insulated against condensation
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II
  • Immediate post flush possible with factory setting
  • Flush bend fitted
  • Water supply connection on the rear or top centre
  • Protection cover box for service opening protects against moisture and dirt
  • Protection box for service opening can be cut to length
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
  • With fastening option for electrical connection
Technical Data
  • Flow Pressure: 0.1-10 bar
  • Maximum operating temperature (water): 25°C
  • Flush Volume (Factory setting): 5.8 and 3 litres
  • Flush volume small (Adjustment range): 3-4 litres
Scope of Delivery
  • Water supply connection Rp 1/2’’ – R 1/2”, compatible with MF, with integrated angle stop valve and hand wheel
  • Protection box for service opening
  • 2 Wall anchors
  • Connection set for WC, 90mm
  • Connection bend 90° made of PE-HD, 90mm
  • Adaptor socket made of PE-HD, 90mm
  • 2 Protection plugs
  • Cup for flush volume reduction 4.0/2.6 litres
  • 2 Threaded rods M12
  • Fastening material
Information
  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
  • Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush
  • Cistern can be reversed to give access from behind in duct situation when flushed with pneumatic buttons or touchless flush
Geberit Guarantee

Product Specifications

Technical Specification
Brand: Geberit
MPN: 111.911.00.3
Range: Sigma
Finish: Galvanised Steel
Width: 500mm
Height: 980mm
Flow Pressure: 0.1 - 10 bar
Maximum Water Operating Temperature: 25°C
Factory Setting Flush Volume: 5.8 and 3 litres
Flush Volume Small, Adjustment Range: 3-4 litres
Guarantee: 1 Year and 25 Years Spare Part Availability
