Product Information

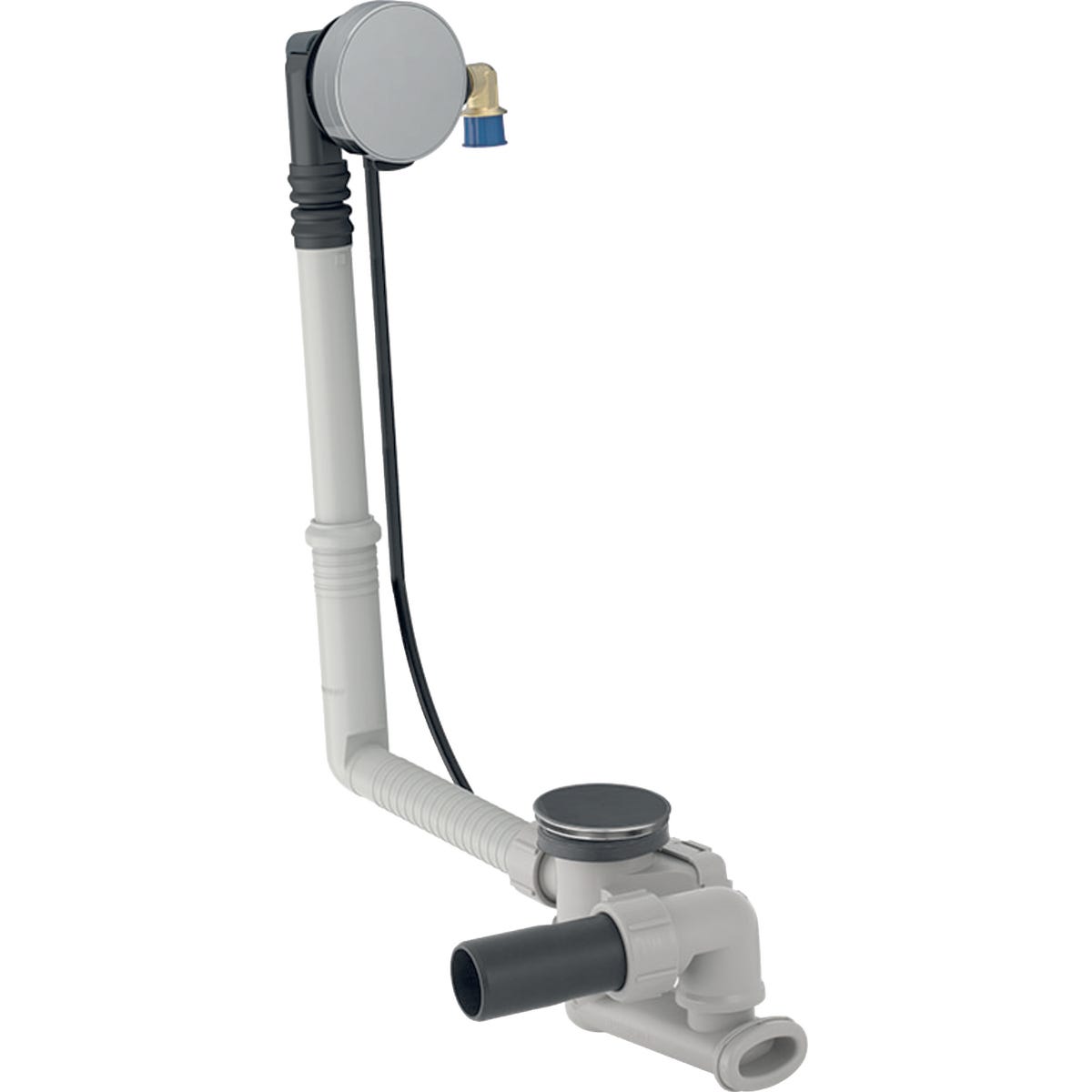

The Geberit Bath Trap Pop Up Waste + Filler For Standard Bath offers a great combination of superb quality and looks. Featuring a robust pop-up system suitable for standard size baths and comes complete ready to fit.
This ready-to-fit bathtub drain set with inlet is perfect for standard sized baths, with a reach/length of 110-260mm and a height of 240-450mm it can work with all baths with a valve hole ø 52mm in diameter. This drain comes with a built-in inlet, straight connector, has its own built-in overflow, and the turn handle releases the plug.
The flat low intrusion trap on this drain enables a low installation height and thus a comfortable entry into and experience in the bathtub. The set is easily installed to and comes with everything that you need to fit it.
Application Purposes
- For bathtubs made of steel, plastic or cast iron
- For standard size bathtubs
- For bathtubs with valve hole of 52 mm
Characteristics
- Quality-monitored in accordance with EN 274-3
- With overflow and inlet
- Inlet jet can be aligned
- Double-sided seals on drain and overflow
- Overflow head with an extendible mount can be fastened
Technical Data
- Line noise at 3 bar: 15 dB(A)
- Sound class: 1
- Inlet capacity: 0.35 l/s
- Discharge rate: 0.85 l/s
- Overflow discharge rate: 0.6 l/s
- Depth of water seal: 50mm
- Waste outlet
- Trap
- Overflow head with inlet
- Elbow tap connector 90° 1/2''
- Straight connector made of PE-HD, 43 mm
- Ready-to-fit set
- Protection box
- Fastening material
- 1-Year Product Guarantee and 25-Year Spare Part Availability Guarantee. For more information, please see Geberit's Product Guarantee Terms & Conditions
Product Specifications
| Brand: | Geberit |
|---|---|
| MPN: | 150.712.21.6 |
| Finish: | Chrome |
| Product Type: | Bath Wastes & Fillers |
| Waste Type: | Pop Up Wastes |
| Shipping Weight Kg: | 1.32 kg |
| Shipping Dimension 1: | 550 mm |
| Shipping Dimension 2: | 185 mm |
| Shipping Dimension 3: | 120 mm |
