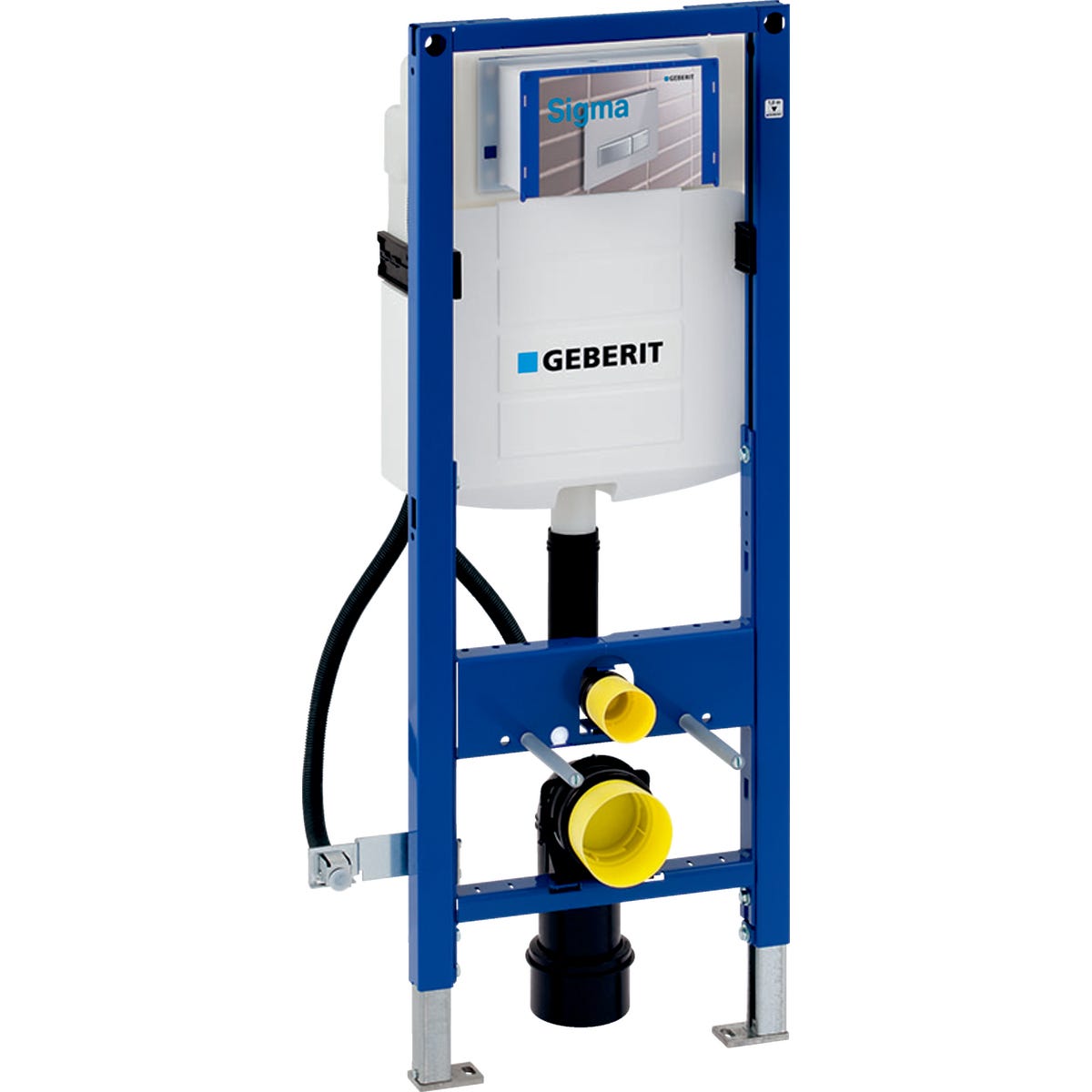

The Geberit 111.352.00.5 Duofix Sigma WC Frame 1.12m for Less Abled Installation is constructed using heavy-duty steel specifically for long or large projection toilets with a reduced width to allow for the placement of support handles next to the frame. Galvanised to give superb durability, it features a full height frame ideal for installation in stud walls, includes a top quality cistern with half and full flush options and offers tool-free maintenance. This frame is compatible with any of our Sigma Flush Plates.

Key Features

• Self-supporting frame, powder-coated
• Frame with 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Frame width reduced for placement of support handles next to the element
• Comfort height for WC can be adjusted during installation (41-46cm)
• Galvanised feet
• Feet adjustable 0–20 cm
• Non-slip leg supports
• Rotatable foot plates
• Leakproof due to one piece blow moulded cistern
• Suitable for long projection WC’s 700mm
• Tested to withstand 400kg of weight
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation
• Concealed cistern fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection
• Compatible with touchless flush plates

Application Purpose

• For drywall construction
• For installation in part- or room-height pre-wall installations
• For installation in room-height installation walls
• Suitable for less-abled installation
• For installation in part- or room-height Geberit Duofix system walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with large projection up to 700mm
• For floor constructions 0–20 cm

Technical Information

• Flow Pressure: 0.1-10 bar
• Maximum operating temperature (water): 25°C
• Flush Volume (Factory setting): 5.8 and 3 litres
• Flush volume small (Adjustment range): 2-4 litres

Product Includes

• Water supply connection Rp 1/2’’, compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Connection set for WC, 90mm
• Connection bend 90° made of PE-HD, 90mm
• Adaptor socket made of PE-HD, 90mm
• Cup for flush volume reduction 4.0/2.6 litres
• Fastening material

Important Information

• Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
• Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush
• The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
• Supplied without wall fixings 111.835.00.1
• Elongated (750 mm) bowls are allowed on 111.352.00.5. This frame is limited on 70 cm, but this inside the tolerance

Geberit Guarantee

1 Year Product Guarantee and 25 Years Spare Part Availability Guarantee
