- Neatly concealed behind the wall, it's the perfect solution for every style, shape and space - from standard installations to under a window or sloping ceiling
- This frame system sits within pre or drywall installations, bolted to the floor, supporting the sanitaryware and keeping it firmly in place
- With Geberit Duofix, it’s easy to create a great contemporary look in any bathroom or cloakroom
- Strong, secure and flexible
- Front actuation only
Please note that Geberit Kappa frames and cisterns are only compatible with Geberit Kappa flush plates. Matching the frame, cistern, and flush plate series is essential to ensure proper fit and function.
Product Information

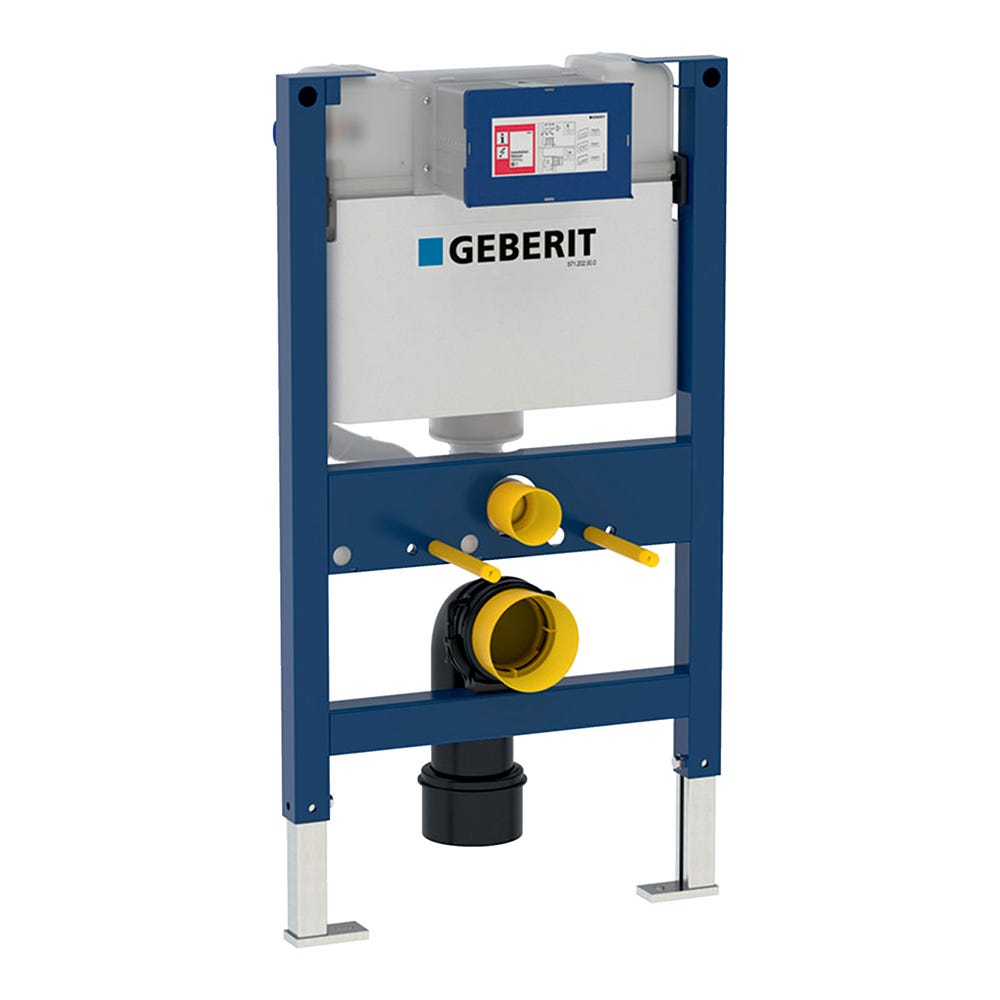

The Geberit Duofix WC Frame 0.82m is constructed using heavy-duty steel, then galvanized to give superb durability. It features a compact height frame ideal for tight for space areas. It includes a top quality cistern with half and full flush options and offers tool-free maintenance. This frame is compatible with any of our Kappa Flush Plates.
Application purposes
Application purposes
- For drywall construction
- For installation in part- or room-height prewall installations
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with large projection up to 62cm
- For floor constructions 0–20 cm
- Self-supporting frame, powder-coated
- Galvanized feet
- Feet adjustable 0–20 cm
- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Immediate post flush possible with factory setting
- Water supply connection on the left
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length without tools
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- With fastening option for electrical connection
- Flow pressure: 0.1-10 bar
- Maximum operating water temperature: 25°C
- Flush volume, factory setting: 5.8 and 3 l
- Flush volume small, adjustment range: 3-4 l
- Water supply connection Rp 1/2'' - R 1/2'', compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 Wall anchors
- 2 Protection plugs
- Connection set for WC, 90mm
- Connection bend 90° made of PE-HD, 90 / 110mm
- Adaptor socket made of PE-HD, 90 / 110mm
- 2 threaded rods M12
- Fastening material
- For access the top of the cistern may be cut in accordance with the instructions
- If frame is being installed with bespoke furniture with furniture clips, we would advise that article number 111.837.00.1 is purchased
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
- To reduce flush volume to either 4.5/3 l dual flush or 4/2.6 l dual flush requires material number 242.310.00.1 (note: must be used with pans designed for low volume flush)
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- 10 Year Product Guarantee and 25-Year Spare Part Availability Guarantee. For more information, please see Geberit's Product Guarantee Terms & Conditions
Product Specifications
| Brand: | Geberit |
|---|---|
| MPN: | 111.260.00.3 |
| Range: | Duofix |
| Finish: | Galvanised Steel |
| Width: | 500mm |
| Height: | 820mm |
| Guarantee: | 1 Year |
