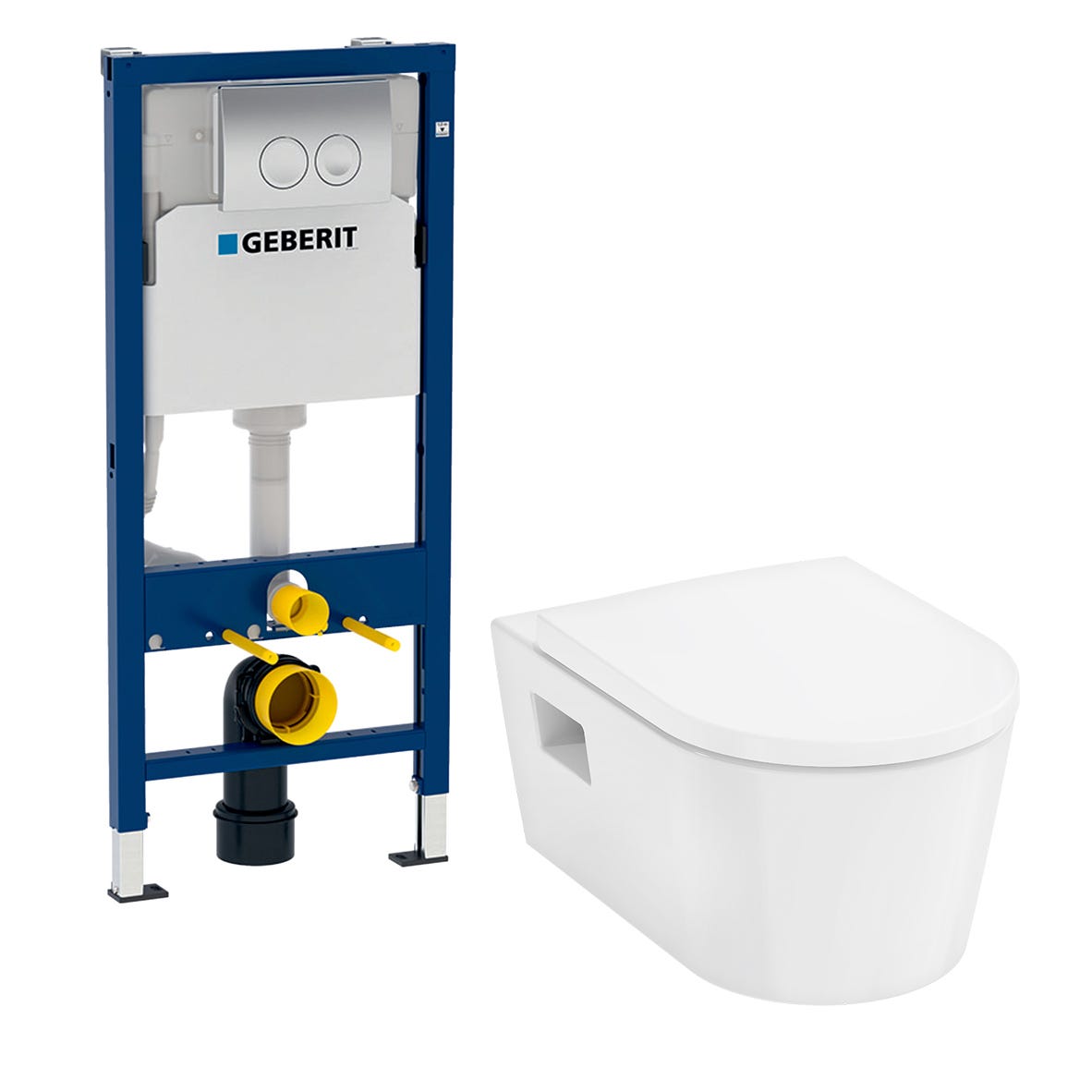

This Geberit WC Frame & Elixir Pan & Seat Bundle combines legendary Swiss engineering with sleek, German design to create a high-quality, complete WC sure to complement any bathroom space.

The 1.12m WC frame offers the perfect solution for those looking to install minimalist, modern-looking wall-hung toilets. Designed to be neatly concealed behind the wall, this frame works well for any bathroom regardless of the style, shape and size - from standard installations to under a window, or even a sloping ceiling. Plus, the round Delta 20 glossy chrome dual flush plate offers great volume adjustment to help save water, with a smaller 4.5L flush volume.

Combine this frame with the Elixir Wall Hung Pan and Seat to create an elegant, modern toilet which will help keep your floor clear and maximise space. Finished in a glossy white, its rimless technology ensures bacteria is given no chance to flourish, whilst the seamless design minimises crevices where dust can accumulate. Plus, the seat is soft-close, so you can rest assured that the lid and seat will move slowly and smoothly, avoiding slamming noises and trapped fingers.

Key Features - Frame

• Front actuation only
• Tool-free cistern maintenance
• Tested to withstand 400kg of weight
• Adjustable drainage bend positioning
• Self-supporting, powder-coated frame
• Easily installed with only four fixing points
• Galvanised feet can be adjusted 0cm - 20cm
• With conduit pipe for connection to Geberit AquaClean
• Dual flush (6 l and 3 l flush or a 4.5 l and 3 l flush) helps save water

Technical Information - Frame

• Surface: Gloss chrome-plated
• Size (cm): 112 (H) x 50 (W) x 12 (D)
• Max operating temperature (water): 25°C
• Flush volume (factory setting): 5.8 and 3 L
• Flush volume (small) adjustment range: 3 - 4 L
• Flush volume (large) adjustment range: 4.5 / 6 / 7.5 L

Key Features - Pan & Seat

• Easy-to-clean rimless technology
• QuickRelease: quickly removable toilet seat
• Noise-reducing, made-to-fit soundproofing mat
• Soft-close feature ensures impact on the pan is dampened
• Wall-hung design keeps the floor clear and maximises space
• Effective cleaning powered by water jets with AquaChannel Flush
• Seamless design minimises crevices where bacteria can accumulate

Technical Information - Pan & Seat

• Colour: White
• Width (mm): 365
• Depth (mm): 540
• Material: Ceramic
• Flushing type: Wash-down
• Flush volume (L): 4.5 / 5 / 6
• Centre-distance wall-mounted (mm): 180
• Centre-distance toilet seat fastener (mm): 160

Approvals

• Frame: Cistern fulfils standard requirements in accordance with EN 14055, Class II

Guarantee

• Pan: 20 Years Manufacturer's Guarantee
• Seat and seat cover: 5 Years Manufacturer's Guarantee
• Frame: 1-Year Product Guarantee and 25-Year Spare Part Availability Guarantee. For more information, please see Geberit's Product Guarantee Terms & Conditions

Bundle Includes

• Elixir Pan + Seat
• Frame: Geberit Duofix 1.12m Wall Hung WC Frame with Delta Cistern and Delta 20 Flush Plate
