Geberit Duofix 1.12m Wall-Hung WC Frame Delta Cistern & Flush Plate

SKU
K021505

Geberit Duofix 1.12m Wall-Hung WC Frame Delta Cistern & Flush Plate

In stock
SKU
K021505
Click & Collect
Special Price £150.00 Inc VAT Regular Price £155.94 Inc VAT
Web Exclusive Price
  • Neatly concealed behind the wall, it's the perfect solution for every style, shape and space - from standard installations to under a window or sloping ceiling
  • This frame system sits within pre or drywall installations, bolted to the floor, supporting the sanitaryware and keeping it firmly in place
  • With Geberit Duofix, it’s easy to create a great contemporary look in any bathroom or cloakroom
  • Strong, secure and flexible
  • Front actuation only
9 In Stock
New Southgate
9 in stock
Park Royal
0 in stock
Staples Corner
0 in stock
West Hampstead
0 in stock

Product Information

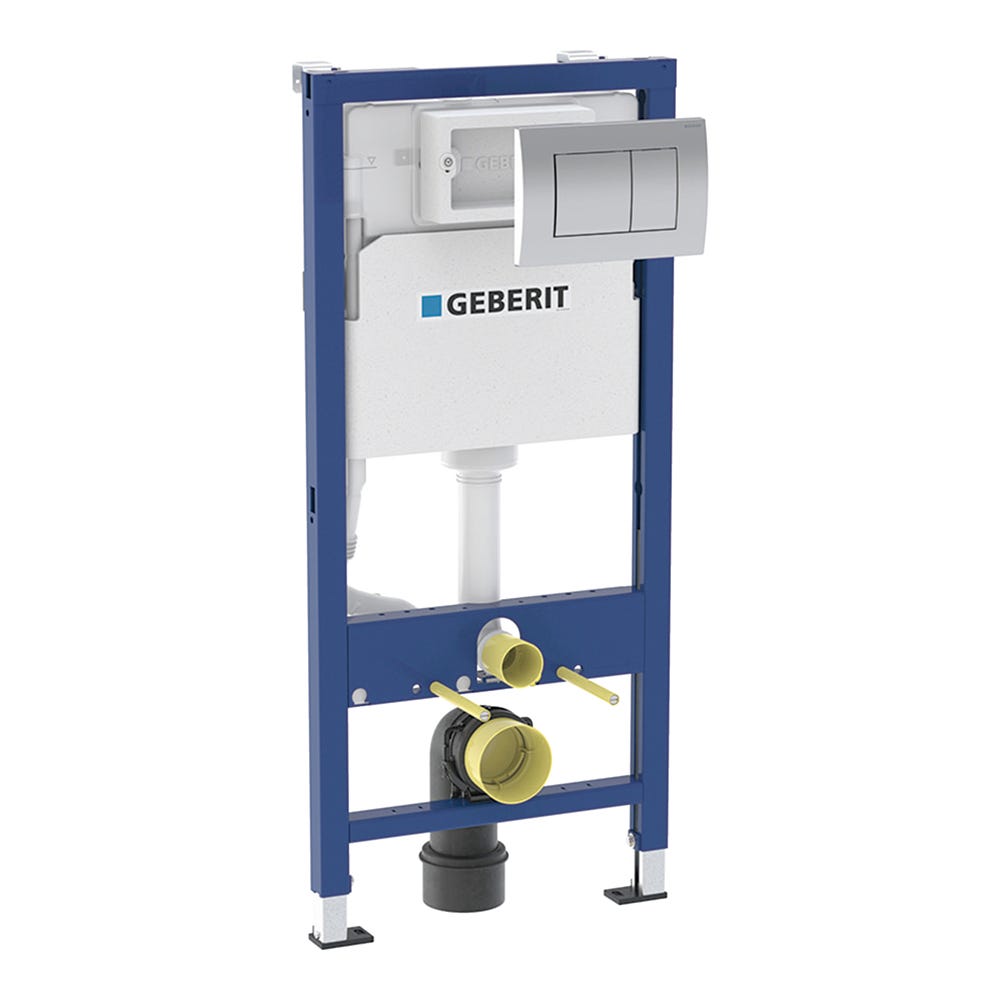

The Geberit 1.12m Delta Frame With Square Delta 30 Chrome Plated Plate is constructed using heavy-duty steel, then galvanised to give superb durability. It features a full height frame ideal for installation in stud walls, includes a top quality cistern with half and full flush options and offers tool-free maintenance

Application Purpose

  • For drywall construction
  • For installation in part- or room-height pre-wall installations
  • For installation in room-height installation walls
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011
  • For wall-hung WCs with projection up to 62cm
  • For floor constructions 0–20 cm

Characteristics

  • Self-supporting frame, powder-coated
  • Frame top open
  • Frame with 9mm drilling holes for fastening in wood frame construction
  • Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
  • Galvanized feet
  • Feet adjustable 0-20cm
  • Foot plates made of plastic
  • Foot plate depth suitable for installation in U-profiles UW 50
  • Connection bend can be mounted without tools
  • Concealed cistern with front actuation
  • Concealed cistern fully insulated against condensation
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II
  • Immediate post flush possible with factory setting
  • Water supply connection on the rear or top centre
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
  • With fastening option for electrical connection

Technical Data

  • Maximum operating temperature (water): 25°C
  • Adjustment Height: 200mm
  • Flush Volume (Factory setting): 5.8 and 3 litres
  • Flush volume small (Adjustment range): 3-4 litres
  • Flush volume large (Adjustment range): 4.5 / 6 / 7.5 litres

What Is Included

  • Angle stop valve R 1/2", with adaptor ring
  • Protection box for service opening, made of polystyrene foam
  • 2 Distance Bolts
  • Flush plate Delta30
  • 2 Wall anchors
  • Connection set for WC, 90mm
  • Connection bend 90° made of PE-HD, 90mm
  • Adaptor socket made of PE-HD, 90 / 110 mm
  • 2 Protection plugs
  • Cup for flush volume reduction 4.0 / 2.6 litre
  • Crossbar for panelling support
  • 2 threaded rods
  • Fastening material

Information

  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
  • Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush

Geberit Guarantee

  • 1 Year Product Guarantee and 25 Years Spare Part Availability Guarantee

Product Specifications

Technical Specification
Brand: Geberit
MPN: 458.119.21.2
Range: Delta
Finish: Galvanised Steel
Width: 500mm
Height: 1120mm
Factory Setting Flush Volume: 5.8 and 3 litres
Flush Volume Small, Adjustment Range: 3-4 litres
Guarantee: 1 Year and 25 Years Spare Part Availability
