- To be installed external to/inline with existing FuseBox consumer units
- Populated with 100A main switch and a Type 2 SPD
- Compliant with 18th Edition Wiring Regulations
- Suitable for TN, TNC-S, TNC and TT systems
- 260mm height, 156mm width, 90mm depth
Product Information

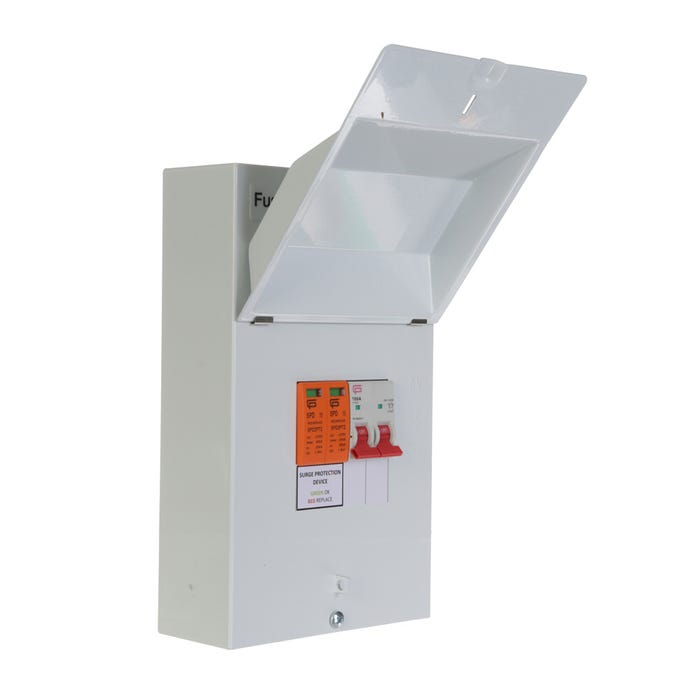

This FuseBox F1M2SPD Surge Protection Unit & Mains Switch comes in a white non-combustible steel enclosure and protects installations from power surges. It is installed alongside FuseBox consumer units to comply with 18th Edition regulations.
Key Features
- Round 25mm and 35mm knockouts on both the top and bottom of the unit
- Compliant with 18th Edition Wiring Regulations when installed correctly
- The SPD must be installed upstream of an RCD within the installation
- Populated with 100A main switch and a Type 2 SPD
- To be installed in line with FuseBox consumer units
- Compatible with TN, TNC-S, TNC, and TT systems
- Provides standalone Type 2 surge protection
- Non-combustible steel enclosure
- Elegant white modern finish
- DIN rail mounted
Technical Information
- Brand: FuseBox
- Height: 260mm
- Width: 156mm
- Depth: 90mm
Product Specifications
| Part Number: | F1M2SPD |
|---|---|
| Indication: | Green |
| Voltage: | 230V~ |
| Terminal Capacity: | Main Switch |
| Standard: | BS EN 60947-3/EN 61643-11(type 2)/IEC 61643-1 (Class II) |
