SKU
L065585
Click & Collect
£11.70
Inc VAT
- Protects electrical installations from overcurrents and earth leakage
- 16A rated current, 30mA trip current rating, 6kA breaking capacity
- This FuseBox RCBO is compatible with FuseBox consumer units
- 114mm in height, 18mm thick
- B Curve Type A RCBO
Product Information

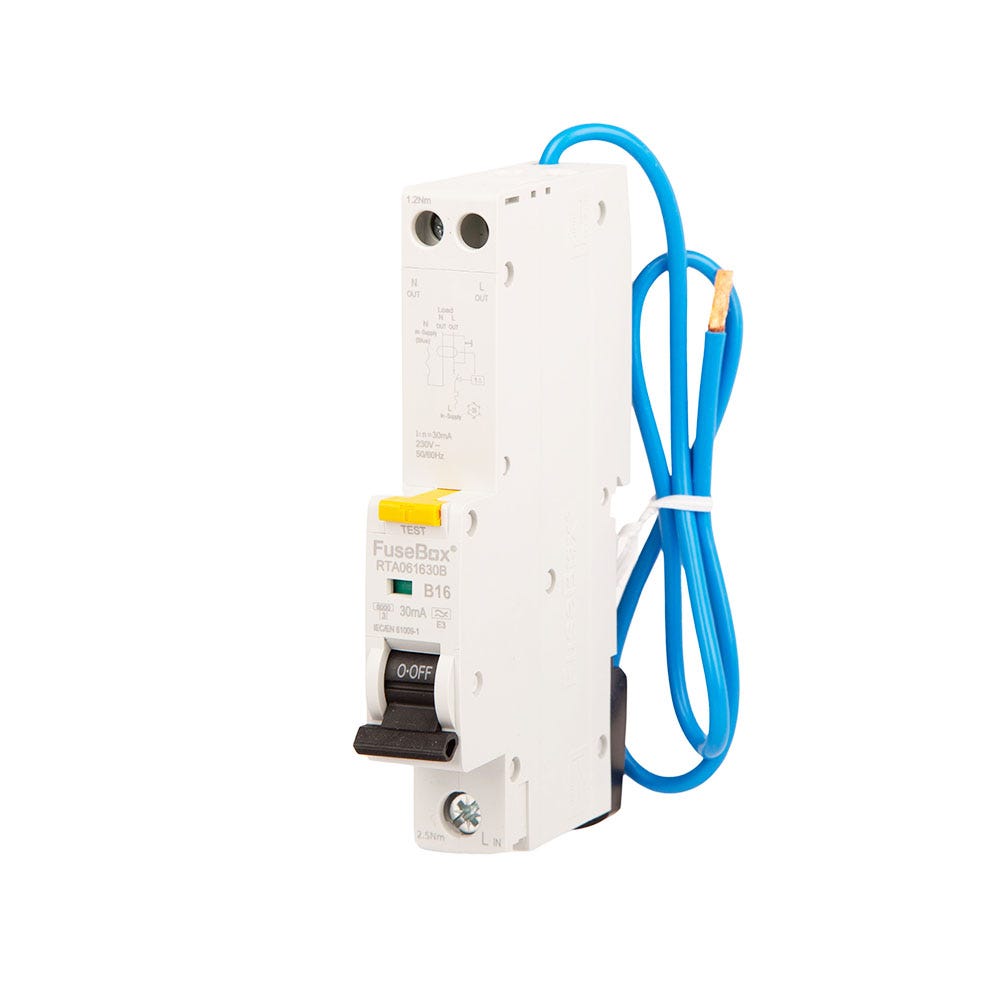

This FuseBox RCBO is suitable for installation in FuseBox consumer units. The RTA061630B has a rated current of 16A, a breaking capacity of 6kA, and a rated tripping current of 30mA. RCBOs protect electrical installations from overcurrents and earth leakage.
Key Features
- Compliant with 18th Edition Wiring Regulations when installed correctly
- Type A RCBO, ideal for use with AC and pulsating DC installations
- Suitable for domestic and commercial installations
- Compatible with FuseBox consumer units
- Has a positive contact status indicator
- Standard DIN rail mounted
- Single module width
- B curve RCBO
Technical Information
- Residual Current Characteristics: Type A (AC And Pulsating DC Up To 6mA)
- Maximum Terminal Capacity: 1-16mm² L In / 1-10mm² Out N L
- Recommended Tightening Torque: 2.5Nm L In / 1.2Nm Out N L
- Rated Residual Operating Current: 0.03
- Flying Neutral Cable Length: 450mm
- Tripping Characteristics: B Curve
- Width Excluding Switch: 53mm
- Width Including Switch: 66mm
- Mechanical Endurance: 10000
- Installation: 35mm DIN Rail
- Standard: IEC/EN 61009-1
- Number Of Poles: 1P + N
- Breaking Capacity: 6kA
- Rated Voltage: 230V
- Frequency: 50/60Hz
- Rated Current: 16A
- Thickness: 18mm
- Material: Nylon 6
- Height: 114mm
- IP Rating: IP20
- Weight: 0.2kg
Product Data Sheet (PDF)
Product Specifications
| Brand: | Fusebox |
|---|---|
| MPN: | RTA061630B |
| Amperage: | 16A |
| Circuit Protection Type: | RCBO Type A |
| Shipping Weight Kg: | 0.2 kg |
| Shipping Dimension 1: | 130 mm |
| Shipping Dimension 2: | 90 mm |
| Shipping Dimension 3: | 32 mm |
