SKU
L070986
Quantity Discount
- Up to 2£8.70Inc VAT
- 3 & Over £7.82 Inc VAT
£8.70
Inc VAT

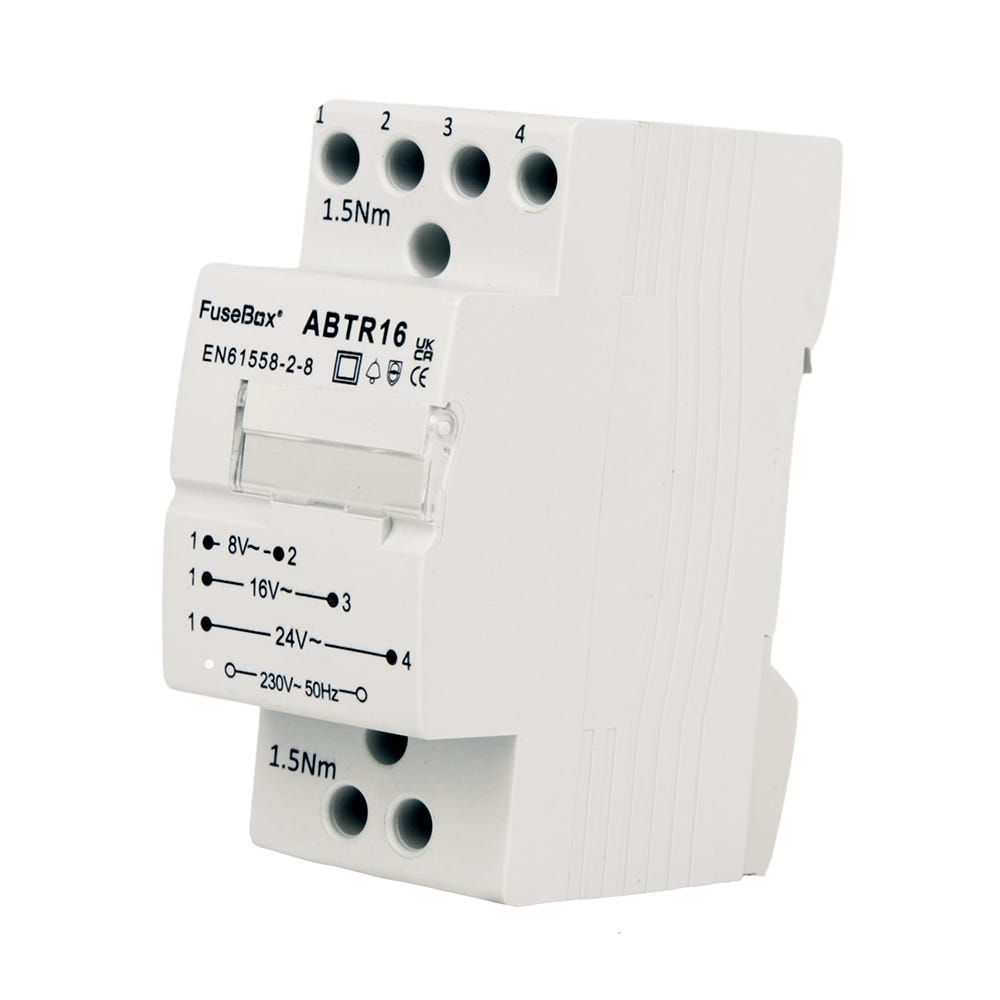

- This FuseBox Doorbell Transformer is ideal to use with doorbells that have camera and smart functionalities
- Suitable for installation in FuseBox consumer units
- Lowers mains voltage to 8-16-24V
- 2 module
Product Information
This FuseBox Doorbell Transformer is suitable for installation in FuseBox consumer units and non-combustible enclosures. The bell transformer is used to provide power to a mains-powered doorbell with camera and video functions, lowering the voltage from 230V to 8-24V, depending on the requirements.
Key Features
- Ideal for installation in FuseBox consumer units
- For doorbells with camera and smart functions
- This transformer is double insulated
- Standard DIN rail mounted
- For domestic use only
- 2 module
Technical Information
- Maximum Load: 8V/1A, 12V/0.67A, 24V/0.33A
- Ambient Temperature: -5°C~ +40°C
- Terminal Capacity: 4mm² / 1.5Nm
- Power Consumption: 0.9W
- Maximimum Cable: 4mm²
- Frequency: 50Hz
- Weight: 0.43kg
- IP Rating: IP20
- Torque: 1.5Nm
- Height: 86mm
- Voltage: 230V
- Depth: 68mm
- Width: 35.5
Approvals
- BS EN 61558-2-8
- EN 61558-1
- EN 60529
Product Specifications
| Brand: | Fusebox |
|---|---|
| MPN: | ABTR16 |
| Circuit Protection Type: | Doorbell Transformer |
| Size: | 86 x 35.5 x 68mm |
| Shipping Weight Kg: | 0.43 kg |
| Shipping Dimension 1: | 86 mm |
| Shipping Dimension 2: | 68 mm |
| Shipping Dimension 3: | 35.3 mm |
