SKU
P000479
Click & Collect
Quantity Discount
- Up to 4£2.77Inc VAT
- 5 & Over £2.50 Inc VAT
£2.77
Inc VAT

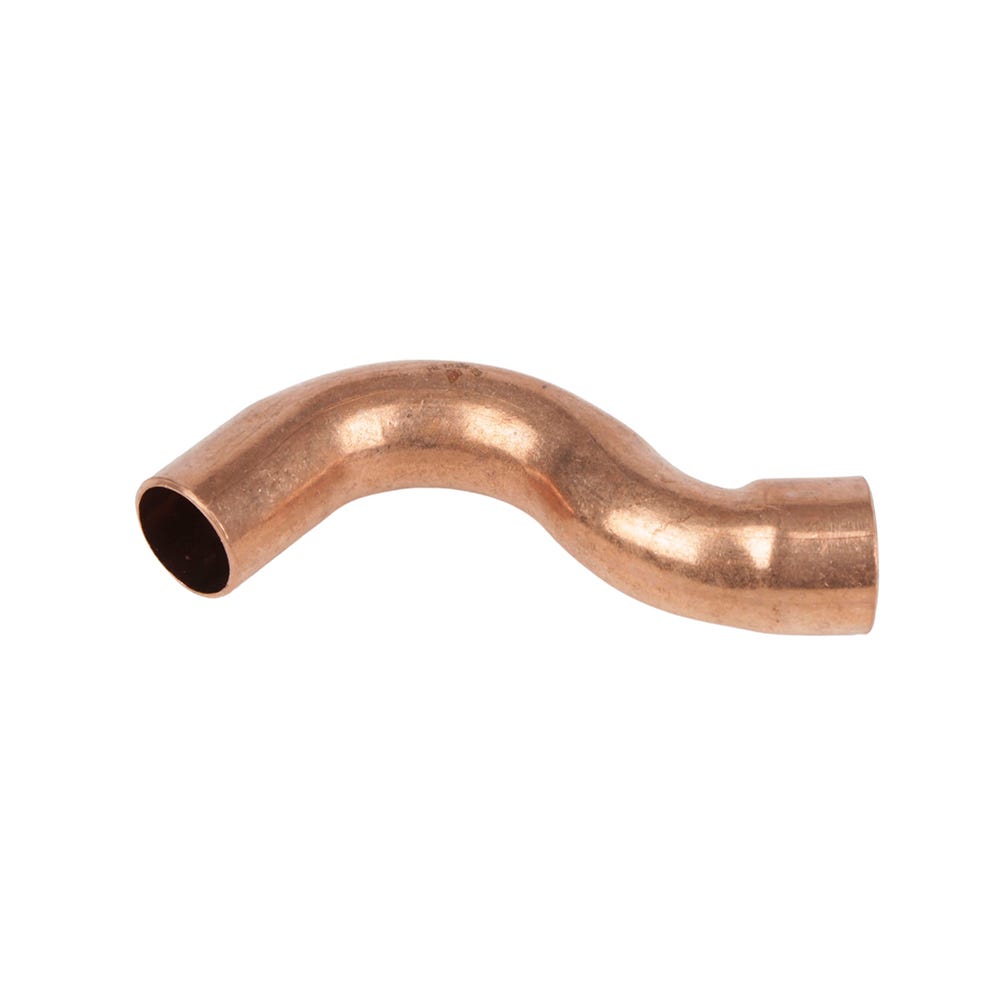

- The Lawton Tube End Feed Part Crossover connects two 22mm pipes at an angle to allow different pipes to cross each other
- Should be fitted using tin solder
- 22mm diameter
Product Information
This Lawton Tube End Feed Part Crossover 22mm connects two 22mm pipes at an angle to allow different pipes to cross each other without changing the flow direction. This end feed part crossover should be fitted using tin solder.
Key Features
- Cost-effective way of joining copper tubes
- Provides a waterproof connection
- Strong, one-piece construction
- Suitable for copper pipes
Technical Information
- Working Pressure At 110°C: 16 bar
- Working Pressure At -40°C: 25 bar
- Working Pressure At 30°C: 25 bar
- Working Pressure At 65°C: 25 bar
- Brand: Lawton Tube
- Size: 22mm
Approvals
- WRAS Approved
- BS EN 1057
- EN 1254-1
Product Data Sheet (PDF)
Product Specifications
| Brand: | Lawton Tube |
|---|---|
| MPN: | EFPCO022 |
| Diameter: | 22mm |
| Plumb Type: | Other |
| Shipping Weight Kg: | 0.08 kg |
| Shipping Dimension 1: | 120 mm |
| Shipping Dimension 2: | 40 mm |
| Shipping Dimension 3: | 40 mm |
