SKU
L073810
Click & Collect
Quantity Discount
- Up to 1£82.68Inc VAT
- 2 & Over £78.54 Inc VAT
£82.68
Inc VAT
£0.83 Per M

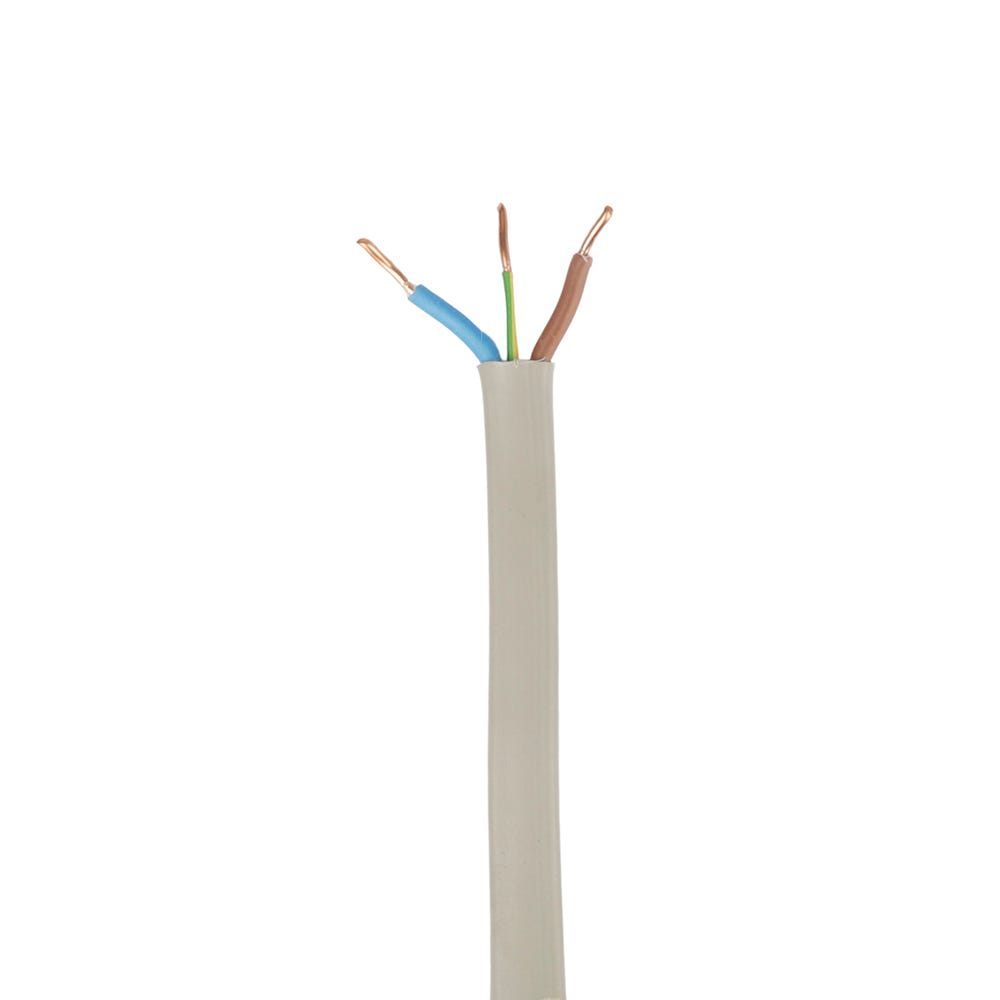

- This Earthsure 2.5mm Twin and Earth Cable is for fixed domestic wiring or light industrial applications
- The grey reduced-thickness PVC sheath adheres to relevant standards
- Has a pre-identified green/yellow circuit protective conductor
- Solid core plain annealed copper conductors
- 6242Y comes in a 100m drum
Product Information
This Earthsure 2.5mm Twin and Earth Cable 6242Y is a PVC insulated flat cable with a pre-identified circuit protective conductor. 6242Y is for fixed domestic wiring or light industrial applications. The cable is supplied in a 100m drum.
Key Features
- Suitable for cable trunking, conduit, direct clipped, air, cable tray and cable ducting installations
- Has a pre-identified G/Y circuit protective conductor to make installation simpler
- Colour-coded brown, blue and yellow/green cores for quick identification
- Compatible with standard cable clips, switches and sockets
- Reduced sheath thickness compared to standard 6242Y
- Contains plain annealed copper conductors
- Meets relevant regulations and standards
- Flat shape for easier installation
- For indoor use in dry areas
- Grey PVC outer sheath
- PVC insulated cable
Technical Information
- Number and Nominal Cross Sectional Area of Conductors and CPC: 2 x 2.5mm² + 1 x 1.5mm²
- Conductor Type: Plain Annealed Copper Class 1/2
- Nominal Stranding of Conductor: 1 / 1.78mm
- Conductor Insulation Material: PVC Type PI1
- Approximate Dimension: 5.4mm x 10.5mm
- Operating Temperature: -15°C - +70°C
- Nominal Stranding of CPC: 1 / 1.38mm
- Minimum Bending Radius: 6XD
- Length: 100m
Matching Products
Approvals
- BASEC CAD 052
- BS EN 50363-3
- BS EN 60228
- BS 6004
- BS 7671
- BASEC
Product Disclaimer
- Please note that the cable size in the product name refers to the cross-sectional area of the conductors. The overall cable diameter, including insulation and sheath, will be larger than the stated conductor size.
Product Data Sheet (PDF)
Product Specifications
| Brand: | Doncaster Cables |
|---|---|
| MPN: | EARTHSURE2C2.5100 |
| Pack Size: | 100 |
| Cable Length: | 100m Reel |
| Cable Type: | 6242Y |
| Colour: | Grey |
| Cores: | 2 Core + Earth |
| Size: | 2.5mm |
| Shipping Weight Kg: | 12.69 kg |
| Shipping Dimension 1: | 225 mm |
| Shipping Dimension 2: | 225 mm |
| Shipping Dimension 3: | 160 mm |
- Lead time of 2-3 Working Days
- This product is dispatched from Builder Depot and is available for in-store purchase.
- This product will usually be delivered via third party courier.
- Orders received by 11:00am are processed the same working day.
- Your delivery charge will be displayed in the trolley page and checkout prior to purchase.
- Once the order has been dispatched you will be sent relevant tracking information.
- This item is eligible for returns as per our Returns Policy.
