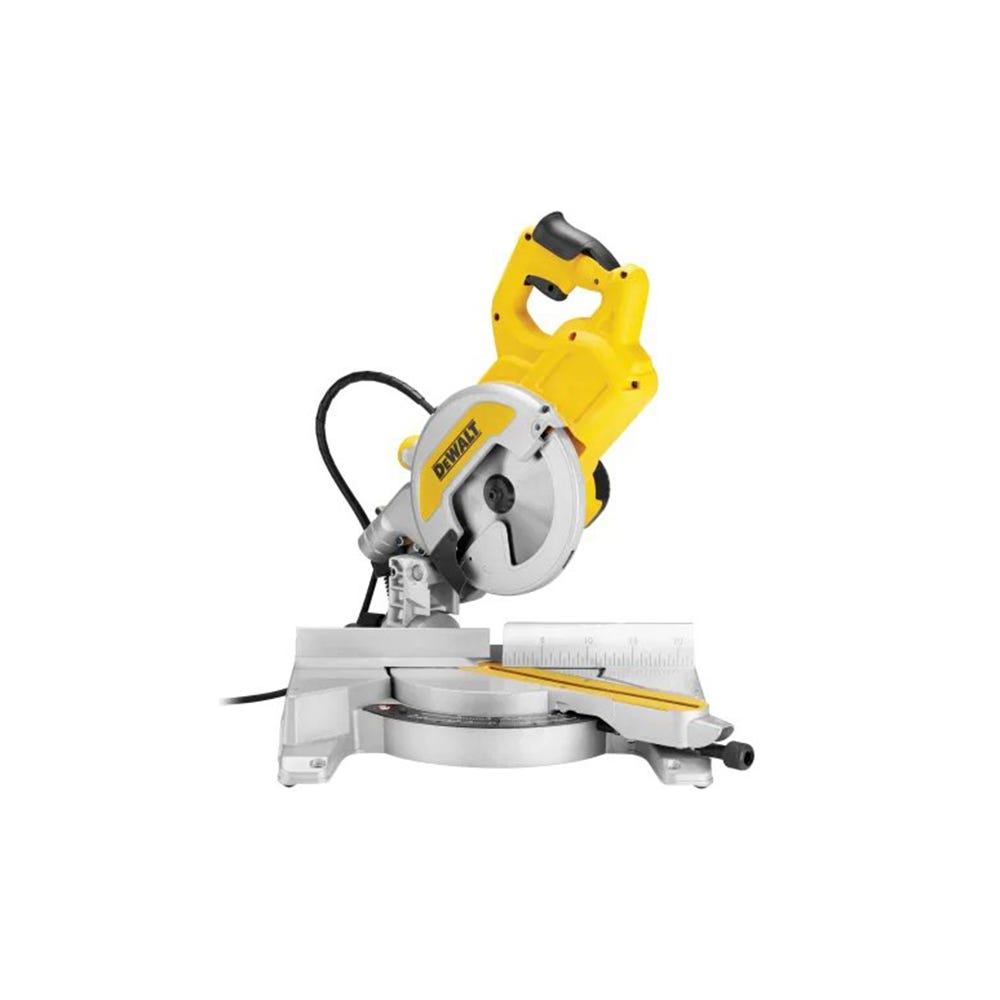

The improved and updated DeWalt DWS777 216mm XPS Crosscut Mitre Saw has been fully upgraded from the previous model. It includes XPS Shadow Line-cut technology for accurate alignment and a DEWALT Airlock compatible dust port for improved dust and debris extraction, giving the user improved protection from airborne dust particles.

Key Features

• Head Lock allows the head to be fixed, restricting the traverse function for trim applications
• Compact internal rail design allows for a huge cutting capacity in a highly transportable format
• Without trench cut facility
• Aluminium Based
• Soft Start
• Dust Extraction Facility
• Without Vice
• Spindle Lock
• Blade Brake

Technical Information

• Max Cross Cut: 265 x 62 mm
• 24 Tooth TCT Blade Included
• Blade Diameter: 216 mm
• Cable Length: 3 m
• Corded Tool Weight: 14 kg
• Disc Bore Size: 30 mm
• Max Bevel Angles (L/R): 49 - 0 degrees
• Max Cross Cut: 265 x 62 mm
• Max Mitre Angles (L/R): 50 - 0 - 50 degrees
• Mitre Stop Angles: 0, 15, 22.5, 30, and 45 degrees
• No Load Speed: 6300 rpm
• Number of Teeth: 24
• Power Output: 1800 W
• Power Voltage Supply: 240 V
