- The Gypframe SIF4 floor channel reduces impact sound in British Gypsum acoustic floors
- Integral neoprene isolator separates the channel from the joist
- Sits on top of the joists to receive square-edge Gyproc planks
- 2000mm long, 139mm wide, 0.60mm gauge
- Sized for wider joists of 64 to 75mm
Product Information

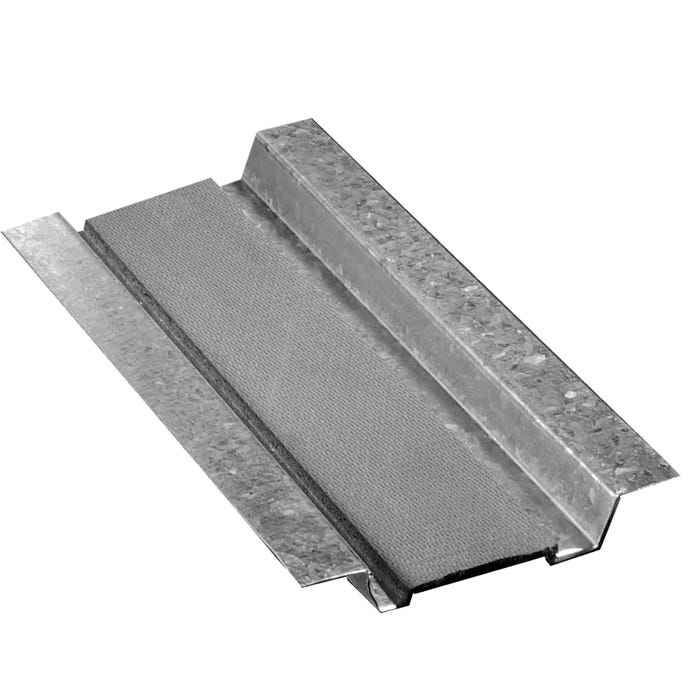

The Gypframe SIF4 Floor Channel (2000mm) is a cold-rolled steel channel with an integral neoprene isolator, used in British Gypsum acoustic floors to reduce impact sound passing down through the structure. It sits directly on top of the joists to receive cut pieces of square-edge Gyproc plank, with the neoprene strip separating the channel from the joist. Formed from steel using the patented UltraSTEEL process, it suits joists 64 to 75mm wide.
Key Features
- Integral neoprene isolator separates the channel from the joist to reduce impact sound transmission through the floor
- Sits directly on top of the joists, ready to receive cut pieces of square-edge Gyproc plank
- Sized for wider joists of 64 to 75mm in British Gypsum acoustic floor systems
- Made of cold-rolled steel using the patented UltraSTEEL process for strength
- 210 N/mm² yield strength
- 100% recyclable
Technical Information
- Steel: UltraSTEEL Cold-rolled
- Isolator: Integral Neoprene
- Yield Strength: 210 N/mm²
- Suits Joists: 64 to 75mm
- Weight: 0.79kg/lm
- Length: 2000mm
- Gauge: 0.60mm
- Width: 139mm
- Colour: Steel
Approvals
- BES 6001 responsible sourcing: Excellent
- EN 14195:2005
Product Data Sheet (PDF)
Safety Data Sheet (PDF)
Product Specifications
| Brand: | British Gypsum |
|---|---|
| MPN: | BGMSIF4 |
| Pack Size: | 1 |
| Size: | 2000mm x 139mm |
