In stock
SKU
K024852
Online Only
£568.00
Inc VAT
- 70cm built in canopy cooker hood
- Suitable for ducted or recirculating operation
- Maximum output ducted extraction : 630m³/h
- Boost position ducted extraction : 730 m³/h
- Noise level : 66 dB(A) re 1 pW
- Energy efficiency class: C
- Built-in installation
Product Information

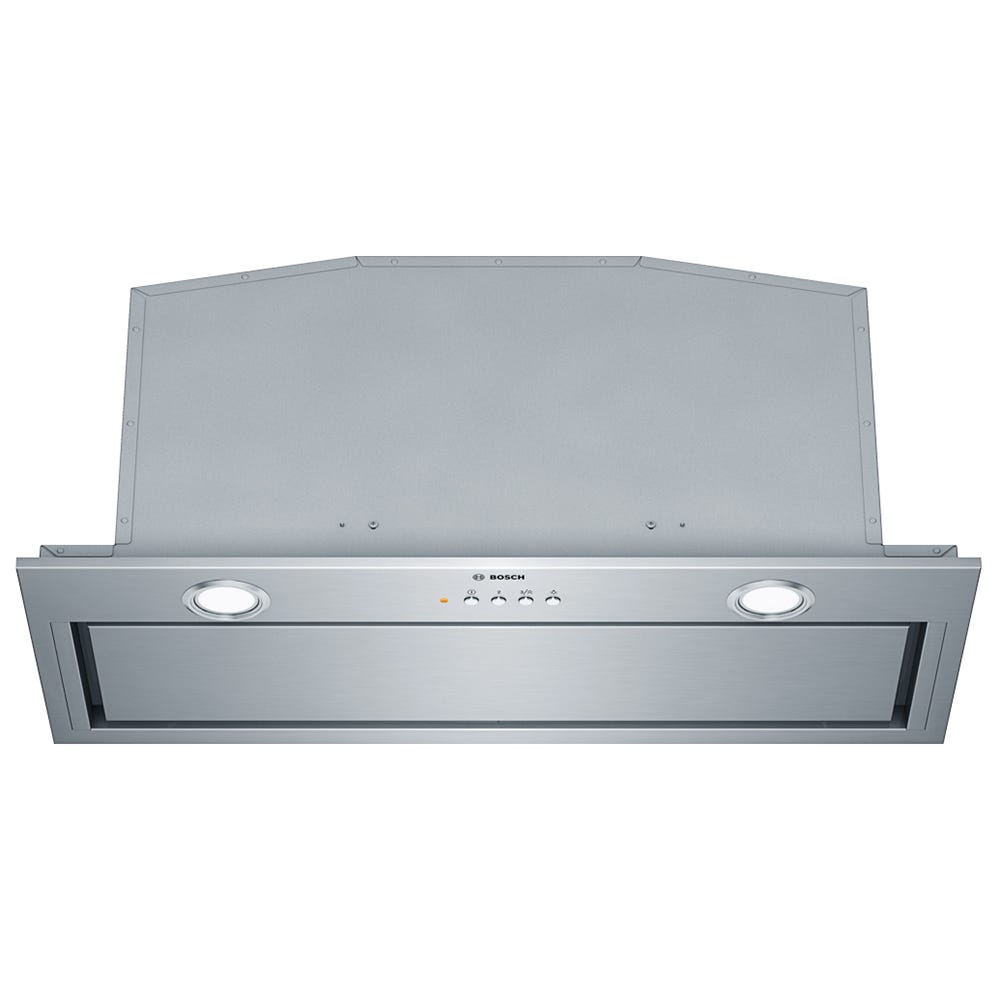

The Bosch DHL785CGB Series 6 70cm Built Under Canopy Cooker hood offers the latest in modern styling and efficient performance. It features an impressive extraction rate of 630 m3/h, this hood will
have your kitchen odour free in no time.
Key Features
Key Features
- Soft touch button control with electronic display
- 3 power levels & intensive setting
- 2 removable metal grease filter cassettes
- 2 x 1W LED
- Rim ventilation
- Brushed steel
- 70 cm wide
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit is needed - You can purchase the kit required by contacting Bosch Customer service directly on 0344 892 8979
- Extraction rate ø 15 cm: Normal use 630 m³/h, Intensive 730 m³/h
- Extraction rate in recirculation mode: Normal use 571 m³/h, Intensive 664 m³/h
- Noise level exhaust air: Normal use: 66dB(A) re 1 pW
- Average Energy Consumption: 104.2 kWh/year
- Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
- Dimensions (HxWxD): 418 x 700 x 300 mm
- Min required niche size for installation (HxWxD): 418 x 676 x 264 mm
- Diameter pipe 150 mm (120 mm enclosed)
- Electrical cable length 1.50 m
- Connection rating : 277 W
- Fuse protection : 3 A
- Minimum distance above an electric hob : 500 mm
- Minimum distance above a gas hob : 650 mm
- 2 Years Standard Warranty. Please click Here for full warranty details from Bosch Home Appliance - Including Registering your Bosch Appliance
Specification Sheet (PDF)
Energy Label (PDF)
Product Specifications
| Brand: | Bosch |
|---|---|
| MPN: | DHL785CGB |
| EAN code: | 4242002831206 |
| Product series: | Serie 6 |
| Main colour of product: | Stainless steel |
| Colour body: | Stainless steel |
| Enter the material of the body: | Stainless steel |
| Typology: | Built-in/Built-under |
| Type of control: | Electronic |
| Installation type: | Built-in |
| Type of control settings: | LED, Low-lift pushbuttons |
| Motor location: | Integrated motor in hood body |
| Electrical connection rating: | 277 |
| Current: | 3 |
| Voltage: | 220-240 |
| Length of electrical supply cord (cm): | 150.0 |
| Plug type: | GB plug |
| Width of the product: | 700 |
| Depth of the product: | 300 |
| Height of the packed product: | 370 |
| Width of the packed product: | 885 |
| Depth of the packed product: | 465 |
| Minimum niche width: | 676 |
| Maximum niche width: | 676 |
| Niche depth: | 264 |
| Net weight: | 9.2 |
| Gross weight: | 13.0 |
| Maximum chimney height in mm (exhaust.): | 418 |
| Minimum chimney height in mm (exhaust.): | 418 |
| Maximum chimney height in mm (recirc.): | 418 |
| Minimum chimney height in mm (recirc.): | 418 |
| Energy efficiency class (2010/30/EU): | C |
| Total annual energy consumption: | 104.2 |
| Lighting efficiency class (2010/30/EU): | A |
| Grease filtering efficiency class (2010/30/EU): | D |
| Maximum Air flow: | 630 |
| Minimum air flow: | 345 |
| Air flow boost (2010/30/EU): | 730.0 |
| Power consumption in standby mode (2010/30/EU): | 0.40 |
| Noise level (dB re 1 pW): | 66 |
| Noise level with boost position (dB re 1 pW): | 69 |
| Type of manual control devices: | Low-lift pushbuttons |
| Number of motors: | 1 |
| Total power of the motors: | 275 |
| Maximum output air extraction: | 630 |
| Boost position air extraction: | 730 |
| Maximum output recirculating air: | 571 |
| Boost position output recirculating: | 664 |
| Light Control Type: | On/Off |
| Number of lights: | 2 |
| Grease filter material: | Washable aluminium |
| Diameter of air outlet: | 120 / 150 |
| Grease filter type: | Cassette |
| No-return airflow flap: | Yes |
| Type of lamps used: | LED |
