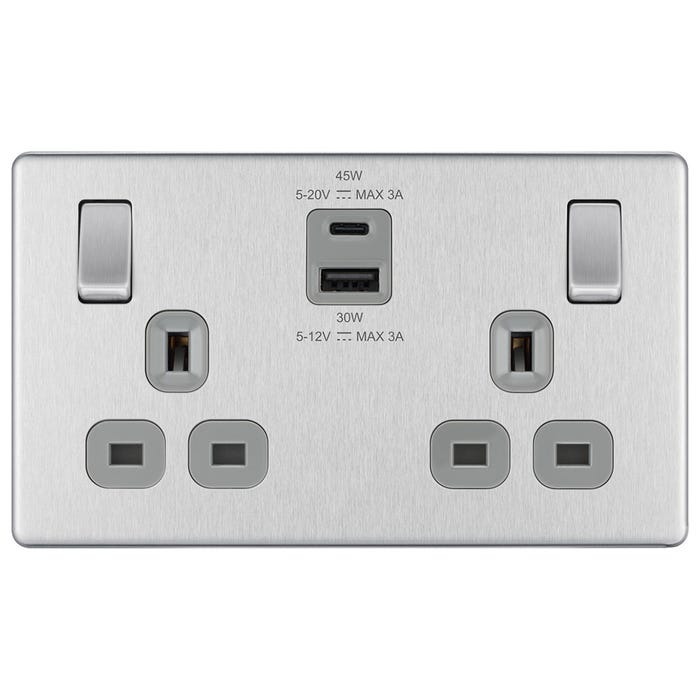

- This BG Nexus Screwless 13A 2 Gang 45W Switched Socket has a stylish brushed steel finish
- Includes a smart charging feature to optimally charge different devices
- Has angled colour-coded terminals with backed out captive screws
- This USB socket contains fast-charging USB C and USB A ports
- Compatible with all smartphone brands
- 146.5 x 86 x 31.9mm in size
Product Information
The BG Nexus 13A 45W Type A+C USB Double Socket is a popular socket for commercial and domestic installations. This USB socket has a brushed steel finish and smart charging features, coming with a USB A and USB C outlet.
Key Features
- Includes a smart charging feature that intelligently adjusts the voltage and current to optimally charge different devices
- Comes with angled colour-coded terminals with backed out captive screws for easy installation
- Compatible with all smartphone brands including Google, Samsung, Apple and Huawei
- Has an in-built moisture control gasket which prevents the socket from tarnishing
- Contains both USB A and USB C fast-charge ports alongside 13A power sockets
- Auto detects when a device is fully charged and goes into standby mode
- The socket has a slim metal profile with gently rounded edges
- Will deliver 50% charge to mobile phones in only 30 minutes
- Charges up to 70% faster than standard 5V chargers
- Perfect upgrade to any standard double socket
- Sleek screwless clip on/off frontplate
- Twin earth for high-integrity circuits
- Supports QC and PD protocols
- Anti-fingerprint lacquer
Technical Information
- Maximum USB Output When Both A & C Ports Are In Use: USB-C 15W (5V/3A), USB-A 12W (5V/2.4A)
- USB C Charge Protocols: PD3.0, QC3.0, Apple2.4A, Sumsung 2.0, Samsung AFC, Huawei FCP, BC1.2
- L & N Terminal Capacity: 3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²
- USB A Charge Protocols:QC3.0, Apple2.4A, Samsung2.0A, Samsung AFC, Huawei FCP, BC1.2
- USB C Output: 5V/3A, 9/3A, 12V/3A, 15V/3A, 20V/2.25A
- USB A Output: 5V/3A, 9V/3A, 12V/2.5A
- Minimum Mounting Box Depth: 35mm
- USB C Maximum Output Power: 45W
- USB A Maximum Output Power: 30W
- Input Current Protection: 2A Fuse
- Minimum Contact Gap: 3.0mm
- Input Frequency: 50/60Hz
- Fixing Centres: 120.6mm
- Input Voltage: 200-240V
- Switch Type: Single Pole
- Size: 146.5 x 86 x 31.9mm
- Input Current: 1A Max
- Finish: Brushed Steel
- Rating: 13A, 240V
Matching Products
Approvals
- EN 62368-1:2020+A11:2020
- BS 1363-2:2016+A1:2018
- BS EN 62368-1:2014
- EN 6100-6-1:2019
- EN6100-6-3:2021
- EN55032
- WEEE
- RoHS
Guarantee
- Guaranteed against faulty materials and workmanship for 10 years from the date of delivery
Product Data Sheet (PDF)
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | FBS22UAC45G-01 |
| Amperage: | 13A |
| Colour: | Steel |
| Finish: | Brushed Steel |
| Gangs: | 2 Gang |
| Screwless: | Screwless |
| Socket Type: | USB Socket |
| Switches And Sockets Type: | USB Socket |
| Shipping Weight Kg: | 0.266 kg |
| Shipping Dimension 1: | 180 mm |
| Shipping Dimension 2: | 153 mm |
| Shipping Dimension 3: | 35 mm |
