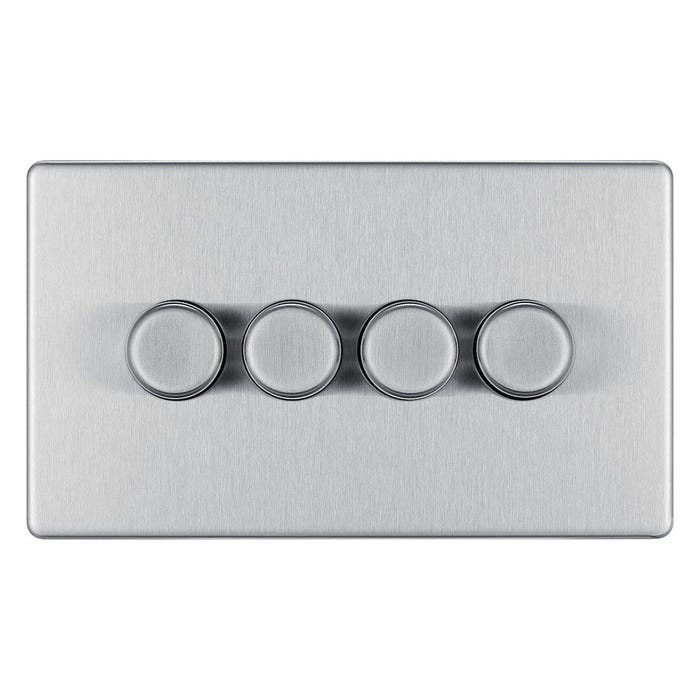

This BG Nexus Screwless Flatplate 4 Gang 2 Way 200W Dimmer Switch has a stunning brushed steel finish and is suitable for both domestic and commercial installations. This intelligent dimmer switch has a lower minimum load than other dimmers, providing greater compatibility with CFL, incandescent, halogen and LED lamps.

Key Features

• Lower minimum load compared to other dimmer switches, allowing this dimmer to be compatible with more halogen, incandescent, CFL and LED bulbs
• The soft start turns the lights on at a set level in 1 second, helping to extend the lifespan of dimmable bulbs
• Features overload protection that turns the lights down or off until the load is corrected
• Includes a fixed plastic gasket that protects the dimmer's metal edges from moisture
• The front plate has a screwless but secure "clip on, clip off" design
• The lightly lacquered surface helps reduce visible fingerprint marks
• Will not cause flickering in lower-wattage lamps
• Provides smooth and silent dimming control
• Modern brushed steel finish

Technical Information

• Terminal Capacity: 3 x 1mm² 2 x 1.5mm² 1 x 2.5mm²
• Dimmable LED Load Rating Per Module: 5-100W
• Incandescent Load Rating Per Module: 5-200W
• Halogen Load Rating Per Module: 20-200W
• Minimum Mounting Box Depth: 35mm
• CFL Load Rating Per Module: 5-100W
• Dimmer Type: Trailing Edge
• Size: 146.5 x 86 x 41.2mm
• Fixing Centres: 120.6mm
• Voltage: 200-250V AC
• Finish: Brushed Steel
• Brand: BG

Matching Products

• Dimmable light bulbs
• Brushed steel switches
• Brushed steel sockets

Approvals

• Asta Approval: License Number 1019
• BS EN 60669-2-1
• RoHS
• WEEE

Guarantee

• Guaranteed against faulty materials and workmanship for 25 years from the date of delivery
