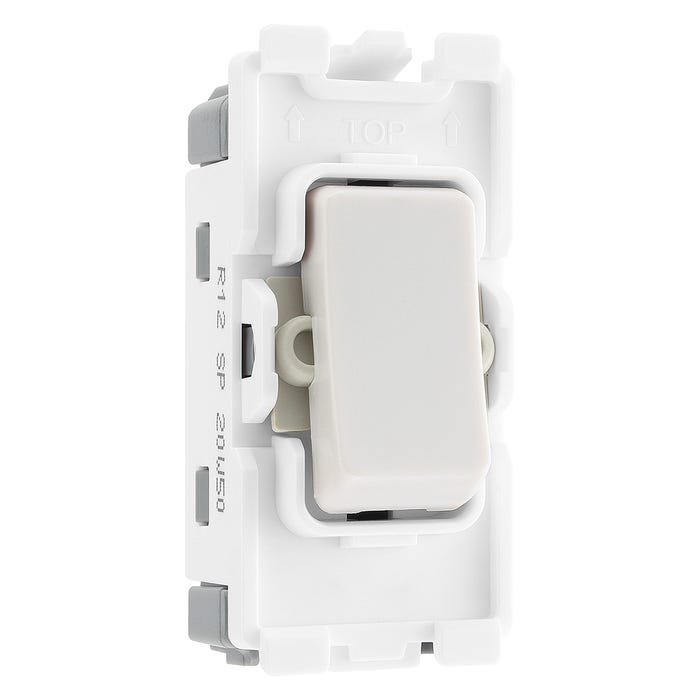

The Grid range from Nexus is a durable, modular switching system available in a range of finishes. Nexus Grid is ideal for domestic, commercial and retail applications.
Product Information
The Nexus grid module system of interchangeable switches, dimmers and fused connection units offers exceptional style and features, focusing on a wide range of domestic or commercial installations.
Key Features
Technical Information
Approvals
Key Features
- Suitable for 1 to 8 gang modular front plates
- Supplied with key
Technical Information
- Rating : 250V / 20 Amp
- Switch type : Single pole
- Contact gap : 3.0mm minimum
- Terminal capacity : 3 x 2.5mm² / 2 x 4.0mm² / 1 x 6.0mm²
- Minimum mounting box depth : 25mmbr>
Approvals
- Standards : BS EN 60669-1
Product Data Sheet (PDF)
Product Specifications
| Brand: | BG British General |
|---|---|
| MPN: | R12-01 |
| Colour: | White |
| Finish: | Plastic |
| Switches And Sockets Type: | Grid Light Switch |
| Shipping Weight Kg: | 0.023 kg |
| Shipping Dimension 1: | 55 mm |
| Shipping Dimension 2: | 25 mm |
| Shipping Dimension 3: | 24 mm |
