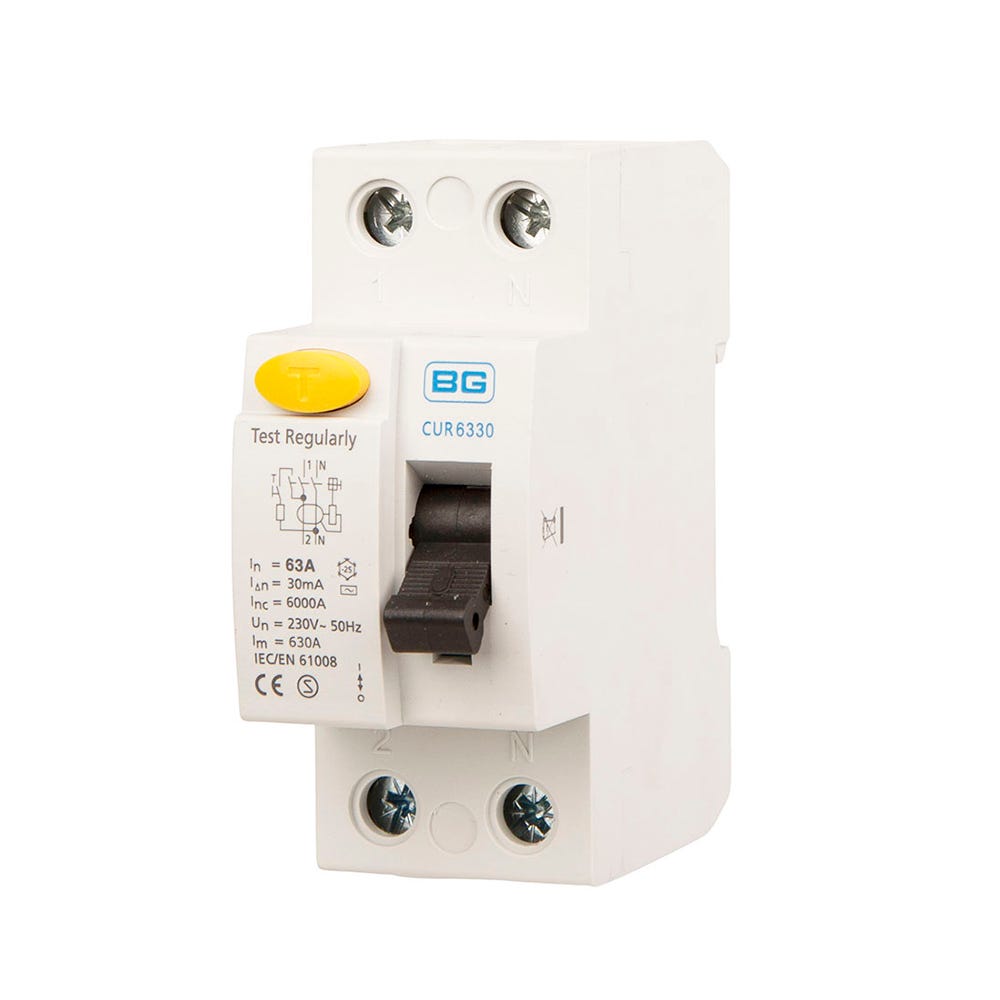

BG Nexus Double Pole RCD 63A 30mA Type AC CUR6330

SKU
L042024
Quantity Discount

BG Nexus Double Pole RCD 63A 30mA Type AC CUR6330

In stock
SKU
L042024
Click & Collect

Need More, Save More

  • Up to 4£18.90Inc VAT
  • 5 & Over £18.14 Inc VAT
£18.90 Inc VAT
  • Protects electrical installations against earth fault currents
  • Type AC RCD with a rated sensitivity of 30mA
  • Ideal for use in a BG consumer unit
  • The CUR6330 is a 63A RCD
  • BG Nexus double pole RCD
6 In Stock
New Southgate
5 in stock

Product Information

The BG Nexus Double Pole RCD is suitable for installation in BG consumer units. The CUR6330 provides protection from earth fault currents. This RCD has a 63A rating and a 30mA rated sensitivity.

Key Features

  • Type AC, compatible with installations where there are residual sinusoidal alternating currents
  • Features a positive contact status indicator that shows when there is a 4mm contact gap
  • Compliant with 18th Edition Wiring Regulations when installed correctly
  • Stylish modern profile complements the BG circuit protection range
  • Ideal for residential and light commercial applications
  • Provides earth fault current protection
  • Resistant to current surges
  • Has a lockable dolly switch
  • DIN rail mounted
  • Two modules
  • Double pole

Technical Information

  • Ambient Temperature: -25 To +40 Degrees Celsius
  • Installation: 35mm DIN Rail Mounted
  • Width Including Switch: 72.5mm
  • Trip: Electro/Magnetic Release
  • Standard: EN/IEC 61008-1
  • Terminal Capacity: 35mm²
  • Number Of Poles: 2 (1+N)
  • Rated Sensitivity: 30mA
  • Terminal Torque: 2.5Nm
  • Breaking Capacity: 6kA
  • Rated Voltage: 230V
  • Thickness: 35mm
  • Frequency: 50Hz
  • IP Rating: IP20
  • Height: 87mm
  • RCD Type: AC
  • Rating: 63A

Product Specifications

Technical Specification
Brand: BG British General
MPN: CUR6330A-01
Amperage: 63A
Circuit Protection Type: RCD Type AC
Shipping Weight Kg: 0.24 kg
Shipping Dimension 1: 85 mm
Shipping Dimension 2: 85 mm
Shipping Dimension 3: 35 mm
